Industrial LCD Digital Display
10.1"-32" Supports Adaptation
Enabling Digital Display Of Different Industrial Scenarios
Lighting Up A New Vision Of Industrial Display Through Digital Display
  • High Color Gamut
  • Wide Temperature Range
  • Strong Heat Dissipation
  • Touch Support
  • Dustproof
  • Waterproof
  • One-year Warranty
  • Android Media Player
  • Remote Training
  • Quality Assurance
What Scenarios Is
Industrial LCD Digital Suitable For?
In modern industry, the need for information display is ubiquitous, and this industrial display monitor is designed to integrate seamlessly with various industrial operating systems. On the factory floor, it can be used for production line monitoring, operational guidance, and data visualization. In logistics and warehousing, it enables real-time tracking of goods and displays inventory information. In the energy and power sector, it facilitates equipment monitoring and data visualization. Additionally, this device is widely applied in industrial machinery, public facilities, medical equipment, and other scenarios to meet the demands of round-the-clock operation.

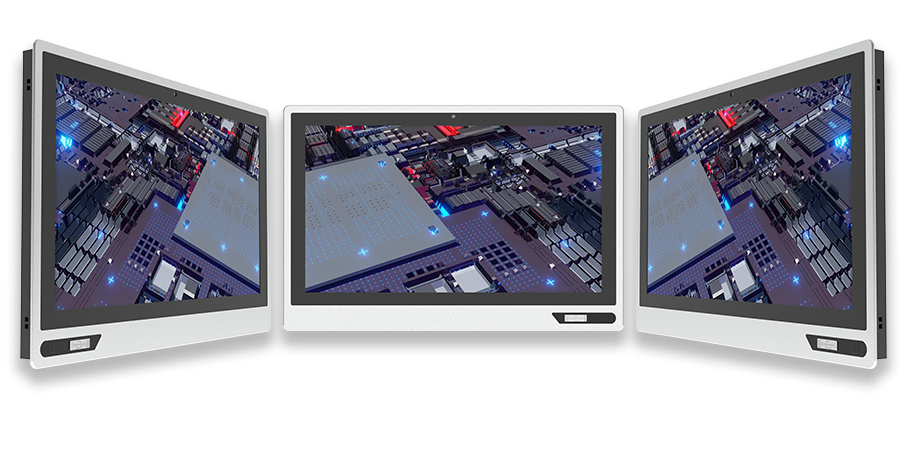

Industrial LCD display front view

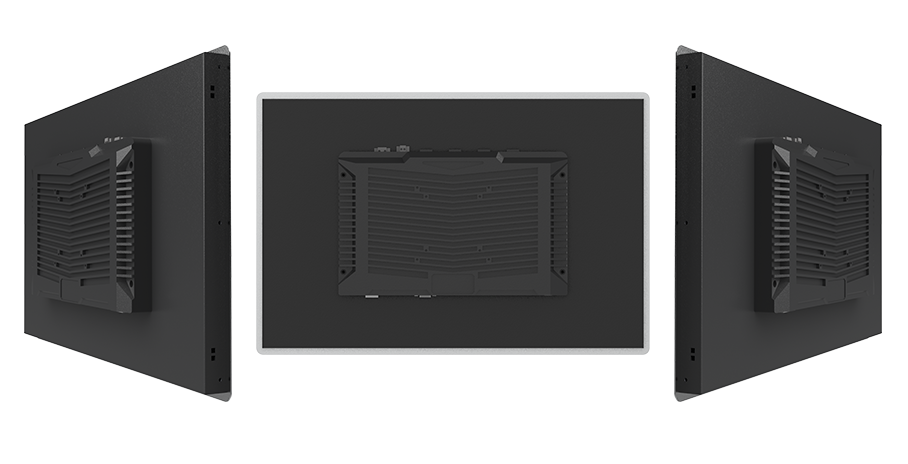

Industrial LCD display back view
  • Strong Adaptability

    This industrial display screen offers a variety of sizes from 10.1 inches to 32 inches, and can be flexibly customized to meet the needs of different scenarios. Whether it is a control panel for small industrial equipment or a large information display screen, this display device can be perfectly matched.

  • Wide Temperature Range

    The temperature of different industrial environments is different, but this industrial LCD display takes this factor into consideration when designing. The highest and lowest temperatures of multiple industrial environments were investigated during the design, which ensures that it can be used in most environments, and the display quality will not be affected by temperature changes.

  • High Color Gamut Saturation

    This industrial digital signage adopts high color gamut technology, which can provide excellent color reproduction for the displayed content, making the picture more vivid. This is very suitable for some industrial equipment that requires refined display, and can achieve the effect of no tailing of the status operation picture.

  • Adapt To Harsh Environment

    This industrial display screen is waterproof, dustproof and impact-resistant, and can withstand the invasion of harsh environments. The equipment design meets industrial standards, extends the service life, and ensures stable operation under humid, dusty or impact conditions.


  • Touch Interaction Capability

    This industrial screen display supports touch operation. Users can interact with the device through intuitive touch. This interactive method can quickly modify the status of the device. In industry, it can improve the work efficiency of workers and make work more convenient.

  • Support 24/7 Operation

    This industrial display monitor is designed for all-weather operation, with efficient heat dissipation and stable performance, ensuring long-term trouble-free use. This feature is very friendly to the industrial environment, and it can monitor the status of industrial equipment in real time.

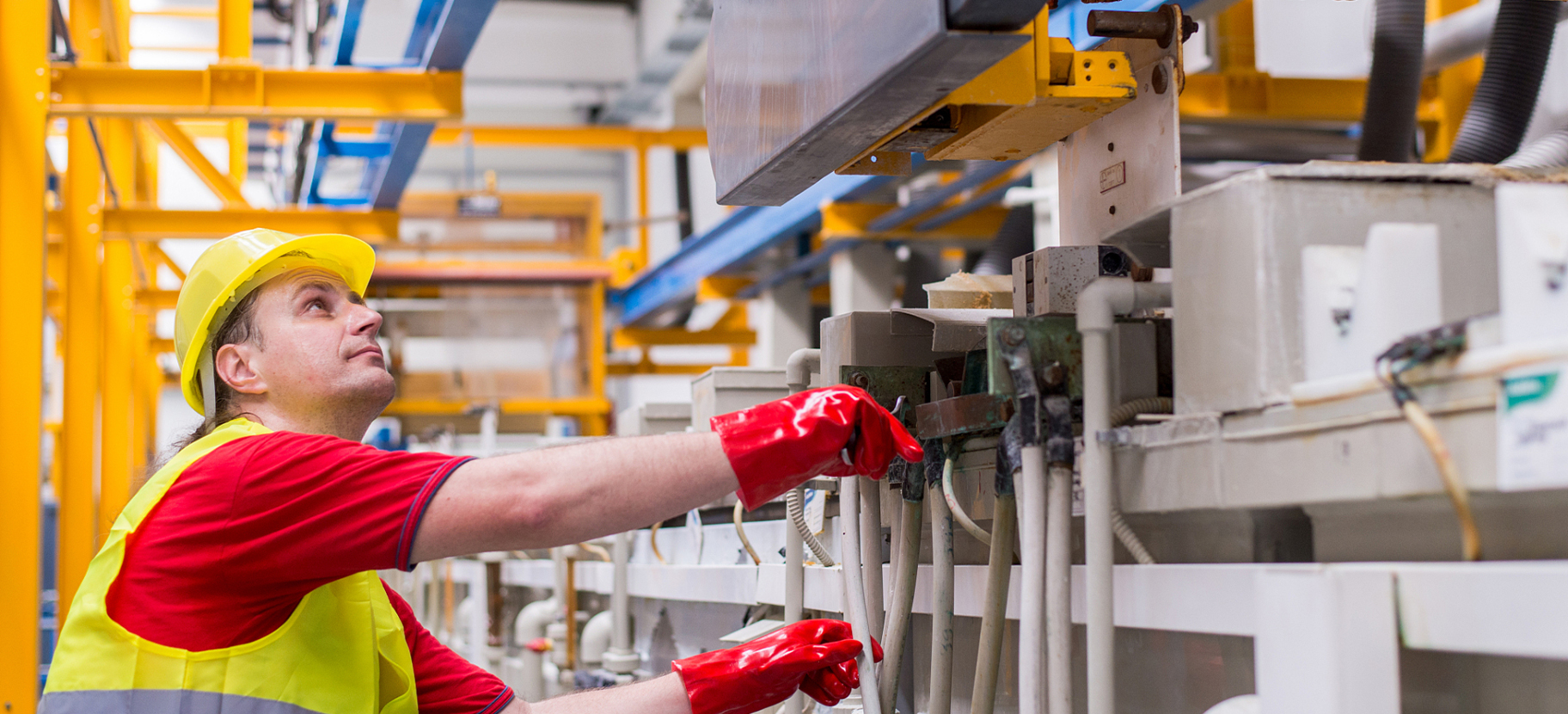

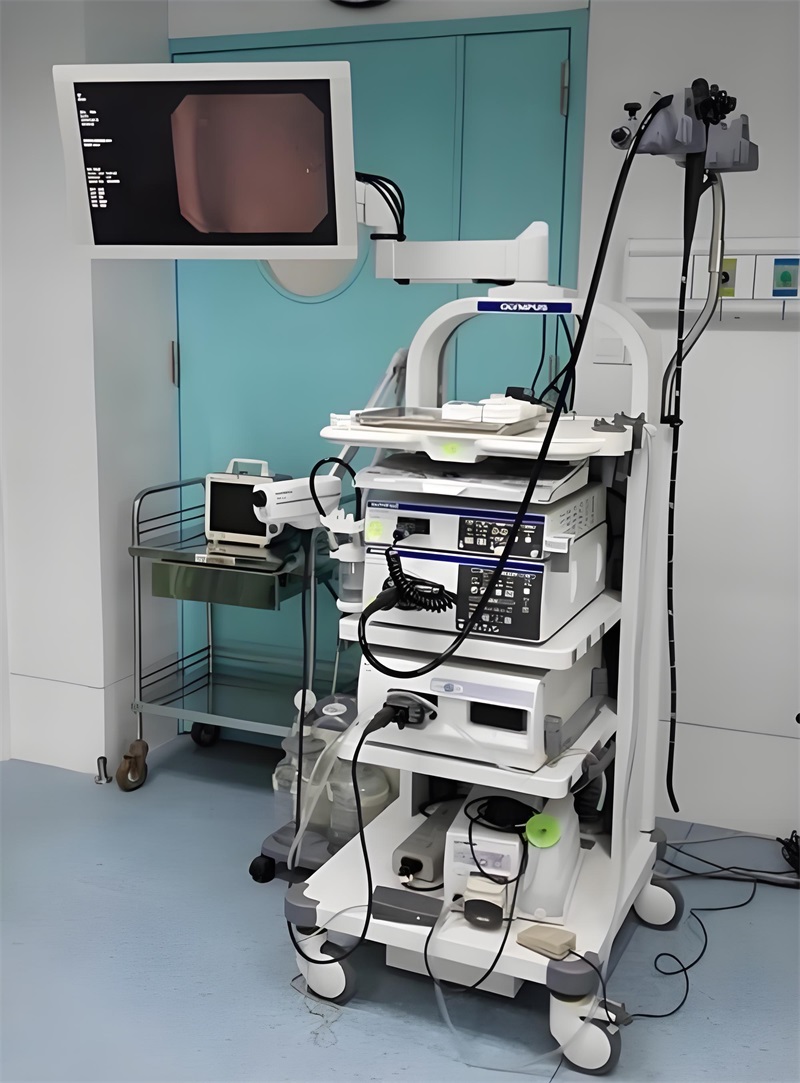

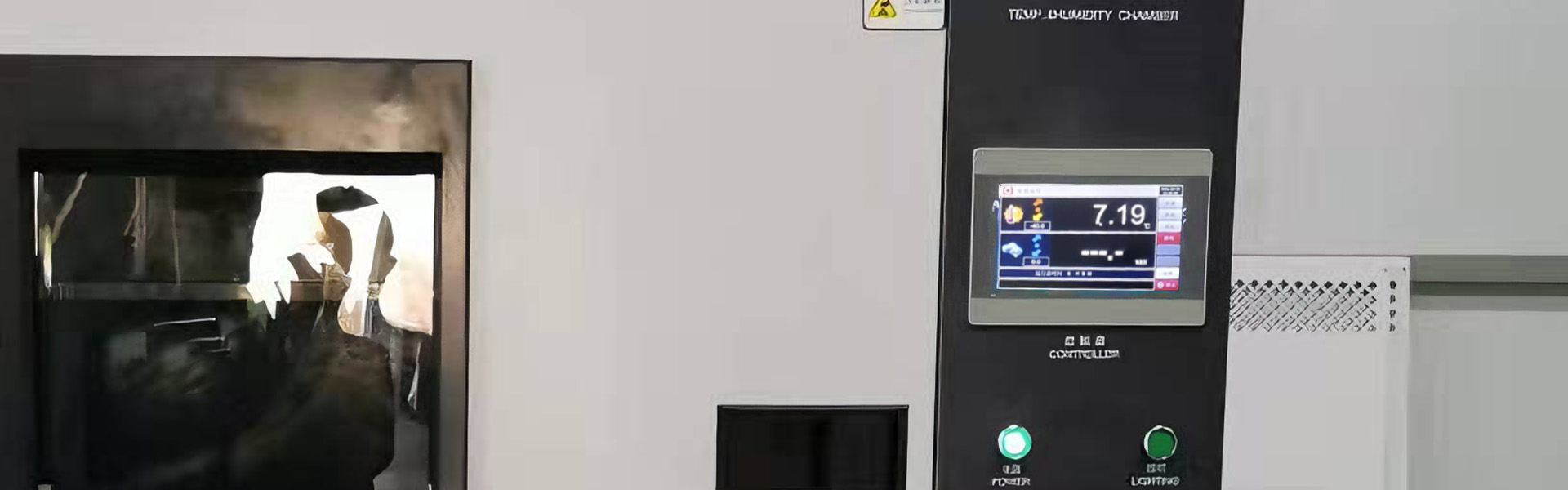

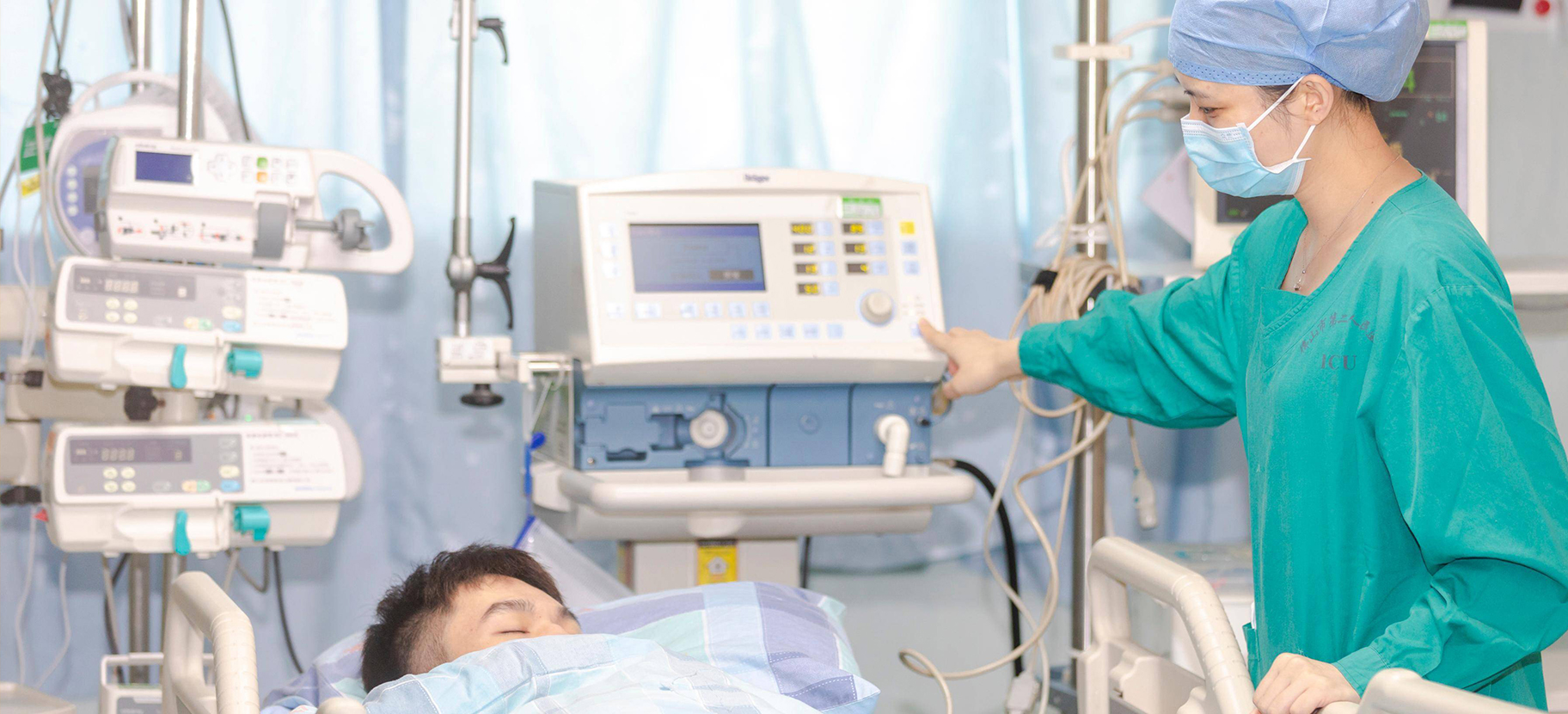

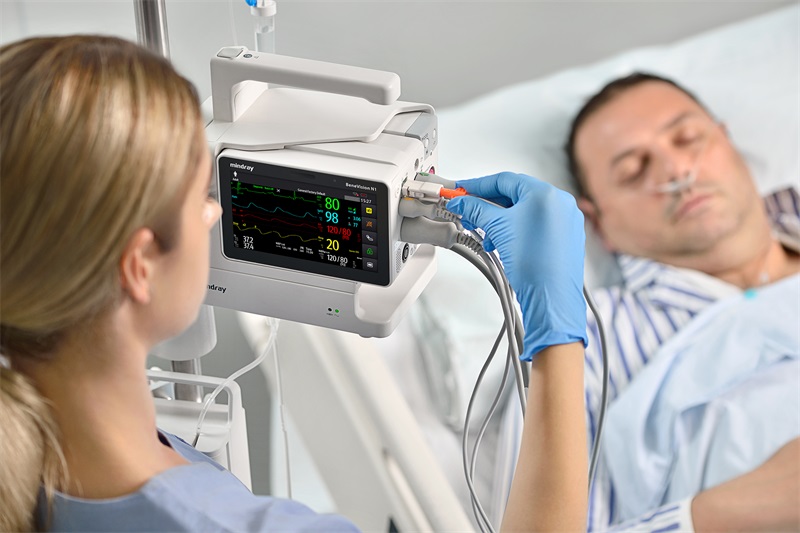

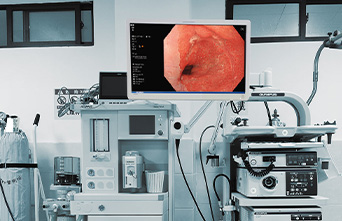

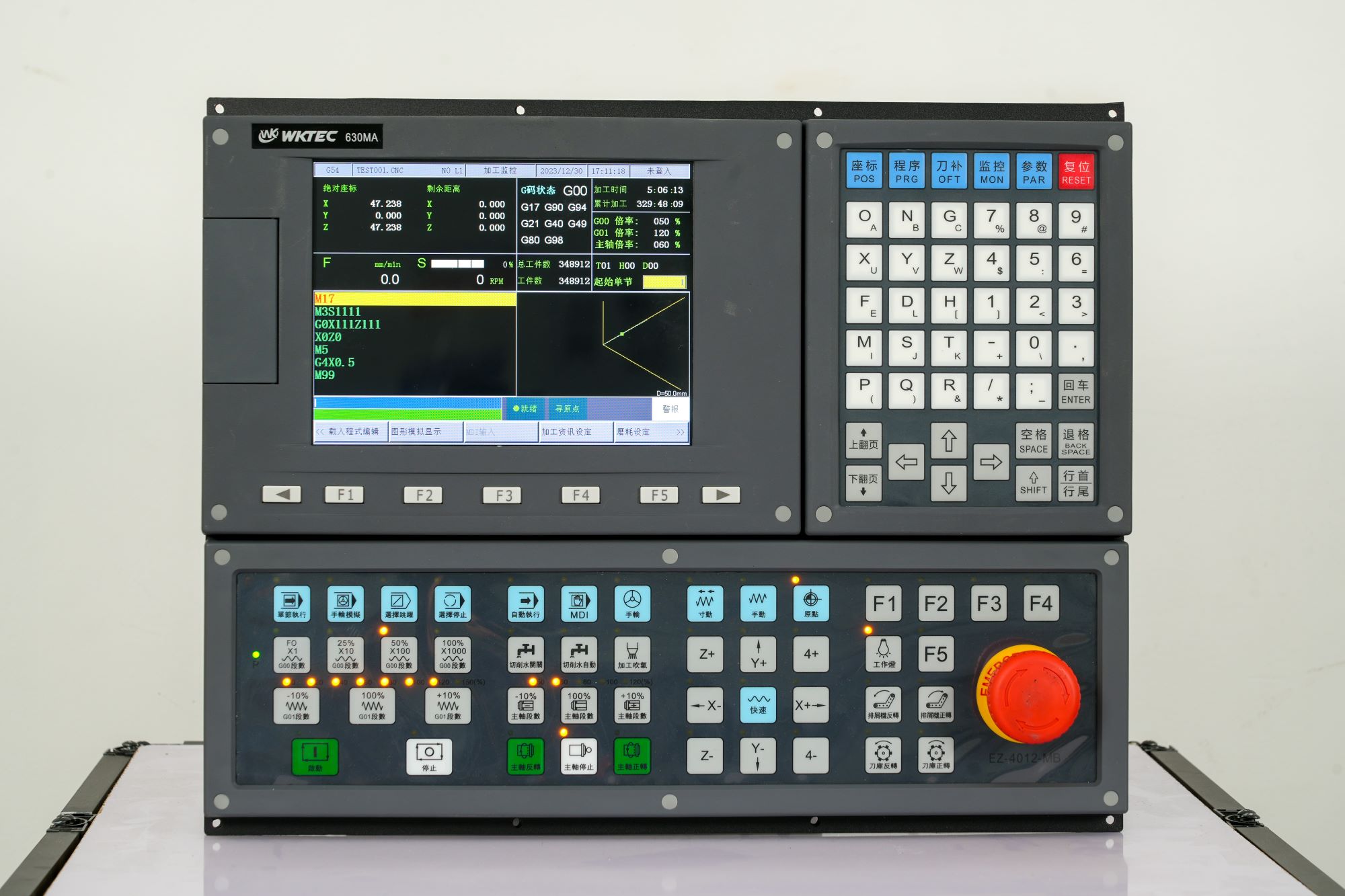

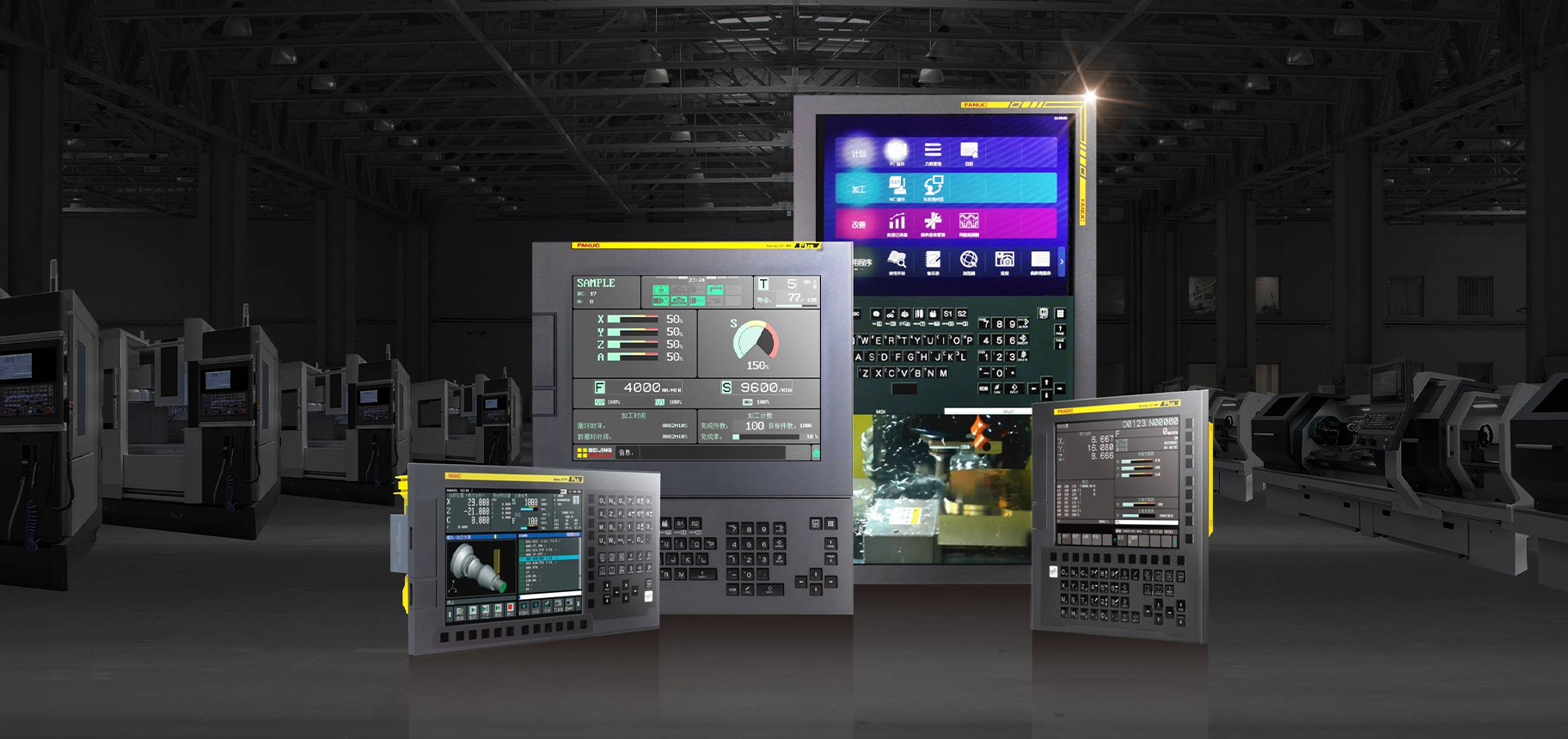

Application Scenarios Of Industrial LCD Display
Application Scenarios Of Industrial LCD Display
Other Options
Specification
Full Specification
  • 10.4 Inch
  • 13.3 Inch
  • 17 Inch
  • 21.5 Inch
10.4"-G104DY768-S01
  • Active Display Area

    213(H)×160(V)mm

  • Overall Size

    283(H)×225(V)×62.8(W)mm

  • Pixel Pitch (mm)

    0.21×0.21

  • Native Resolution

    1024*768

  • Brightness

    300 Nits

  • Contrast Ratio

    3000:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤50W

  • Packing Carton Dimension

    390*330*120mm

  • Net Weight

    5.5KG

  • Gross Weight

    7KG

13.3"-G133DYA80-S01
  • Active Display Area

    293(H)×168(V)mm

  • Overall Size

    358(H)×229(V)×62.7(W)mm

  • Pixel Pitch (mm)

    0.15×0.15

  • Native Resolution

    1920*1080

  • Brightness

    300 Nits

  • Contrast Ratio

    800:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤60W

  • Packing Carton Dimension

    460*330*120mm

  • Net Weight

    6.5KG

  • Gross Weight

    8KG

17"-G170DYA24-S01
  • Active Display Area

    338.9(H)×271.3(V)mm

  • Overall Size

    401(H)×310(V)×62.7(W)mm

  • Pixel Pitch (mm)

    0.2745×0.2745

  • Native Resolution

    1280*1024

  • Brightness

    300 Nits

  • Contrast Ratio

    1000:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤50W

  • Packing Carton Dimension

    500*400*120mm

  • Net Weight

    8KG

  • Gross Weight

    10KG

21.5"-G215DYA80-S01
  • Active Display Area

    478.6(H)×270.1(V)mm

  • Overall Size

    550(H)×365.88(V)×62.7(W)mm

  • Pixel Pitch (mm)

    0.17925×0.17925

  • Native Resolution

    1920*1080

  • Brightness

    300 Nits

  • Contrast Ratio

    1000:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤50W

  • Packing Carton Dimension

    650*470*120mm

  • Net Weight

    12KG

  • Gross Weight

    15KG

Panel Features
  • Viewing Angle

    178(H)/178(V)

  • Response Time

    10ms

  • Frame Rate

    60Hz

  • Life Time

    >30000 Hrs

Functions
  • OS System

    Android7.1/8.1/9.1/11 Optional

  • RAM+Flash

    DDR 2GB+EMMC 8G

    (Optional maximum 32G)

  • Video Format

    RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.

  • Picture Format

    JPG, JPEG, BMP, PNG, GIF

  • Audio Input/Output

    Supports left and right channel output

  • Network Support

    WIFI,4G

  • Picture

    Horizontal/Vertical/Split Scree

  • Timed Play

    Customized Play & Power On/Off

  • CMS

    Support Web/Local Info.Publish

  • Touch

    Optional

Input Ports(Customizable)
  • SD

    *1 (UP to 64G)

  • Micro-USB

    *3

  • HDMI OUT

    *1

  • LAN/RJ45

    *1

Environmental
  • Operating Temperature

    0°C - 50°C/-20-70 Optional

  • Storage Temperature

    —20°C - 50°C

  • Operating Humidity

    10% - 80%

  • Storage Humidity

    10% - 80%

Outer Frame
  • Material

    Sheet metal/profile optional

  • Color

    Customizable

  • Tempered Glass

    Optional
