Smart Stretched
Double-Sided LCD Digital Signage Display
29"-86" Available, Wider Viewing Angle Display


Optimize Space Using Double-sided And Stretch Display

  • Double-sided Display
  • Anti-glare
  • A+ Grade LCD Pane
  • Ultra-narrow Ratio
  • Lifetime Technical Support
  • Split-screen Playback
  • Quality Assurance
  • Fast Update
  • 24/7 Operation
Which Scenes Require
2 Sided Display?
In high-traffic environments such as retail stores, airports or exhibition halls, it is very important to improve space utilization to enhance customer experience. Traditional single-sided screens are not conducive to optimizing space utilization and reducing maintenance costs. Our double-sided display solves this problem through a nearly 360° display orientation. One device can serve two audiences at the same time, and uses stretch LCD technology to maintain clear picture clarity even in narrow vertical spaces.
The two screens of Double-Sided LCD Digital Signage Display can show different contents

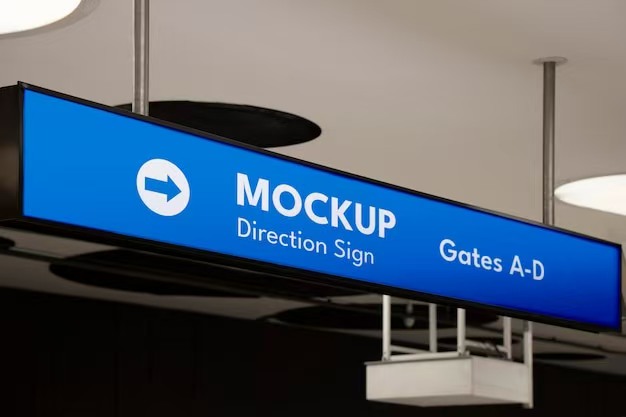

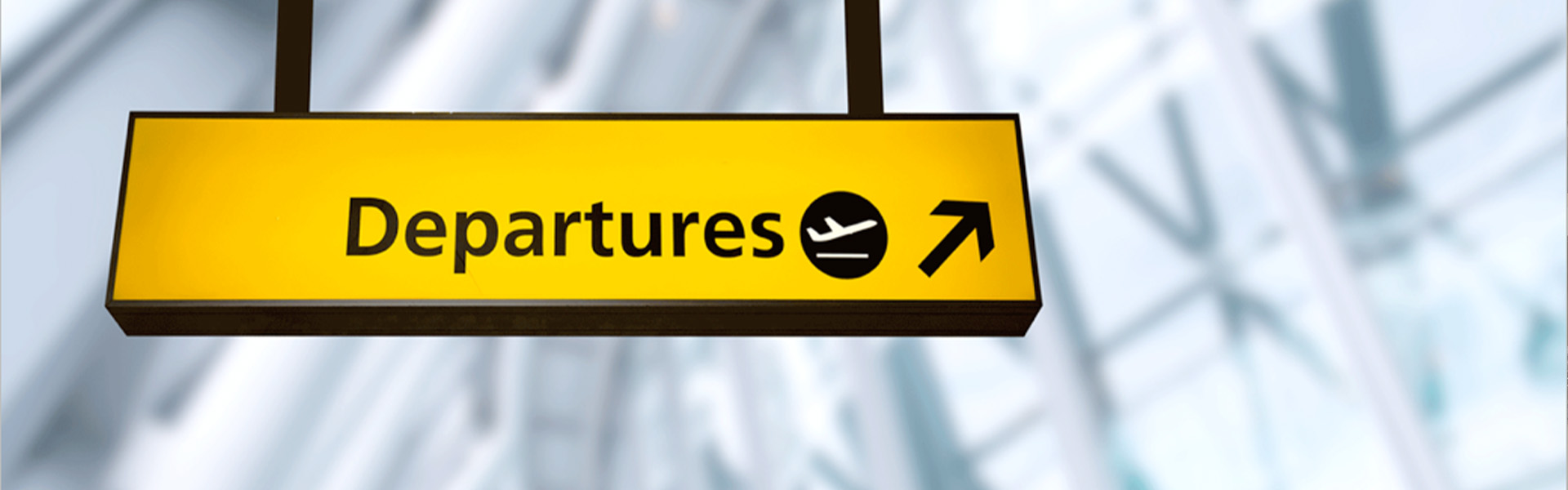

Double-Sided stretch Display can be used for navigation
  • Clear Picture Display

    Our stretch display uses advanced LCD cutting technology to prevent image distortion, so you can experience clear and sharp visual effects even on the extended screen. It supports up to 4k display resolution, which can ensure clear and smooth pictures.

  • Independent Dual-screen Control

    This double-Sided monitor allows you to display different content on each side at the same time, and can customize the display content according to the audience group on each side to enhance the impact of information delivery.

  • Rapid Content Updates

    Our stretched LCD digital signage features an intuitive interface for quick and easy content updates, so whatever information you need to adjust can be done in real time, keeping the display fresh and timely.

  • Support All-day Broadcasting

    Our double sided screen is designed for continuous operation and can broadcast content all day long. For environments where continuous information dissemination is required, it can ensure that your information is always accessible to the audience.


  • LED Backlight Technology

    Our digital signage uses LED backlight technology, which not only improves image quality but also reduces power consumption while maintaining a bright and vivid display.

  • Multimedia Content Playback

    This digital signage supports a variety of multimedia formats, including video, images, and audio, you can create dynamic and engaging content with different elements to attract your audience's attention and keep their interest.


  • Highly Expandable

    Our stretch digital signage is equipped with multiple interfaces such as HDMI and USB to meet the connection of most devices, which allows you to connect various external devices, expand the content source, and bring more possibilities to the display screen.

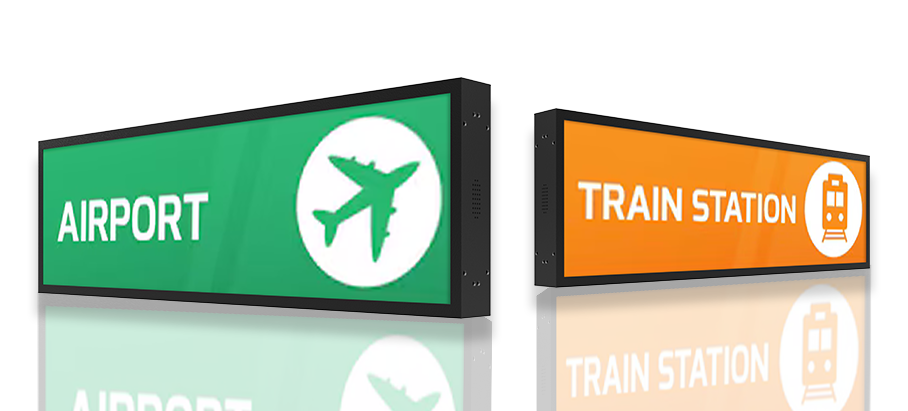

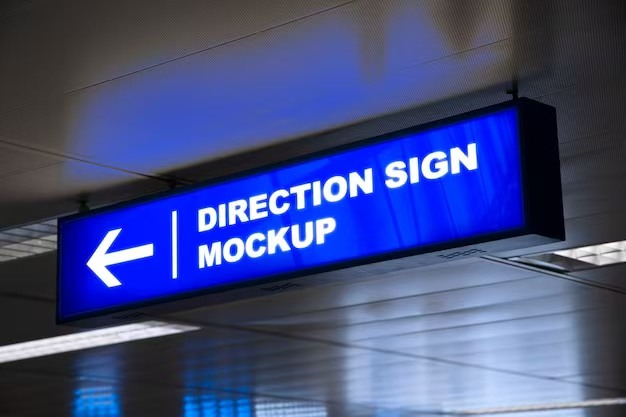

Double-sided LCD Stretched Display For Navigation Guidance
This stretched bar display is used for navigation in shopping malls
Other Options
Specification
Full Specification
  • 29 Inch
  • 37 Inch
  • 43.9 Inch
  • 49.5 Inch
  • 58.5 Inch
  • 67.5 Inch
29"-G290AV552-S01
  • Active Display Area

    698.4(H)×202(V)mm

  • Overall Size

    725×230×55mm

  • Pixel Pitch (mm)

    0.36375(H) x 0.36375(V)

  • Native Resolution

    1920*552

  • Brightness

    400 Nits

  • Contrast Ratio

    1200:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤70W

  • Packing Carton Dimension

    850x350x120mm

  • Net Weight

    15KG

  • Gross Weight

    17KG

37"-G370AV540-S01
  • Active Display Area

    878.11(H)×242.67(V)mm

  • Overall Size

    905×270×55mm

  • Pixel Pitch (mm)

    0.45735(H)×0.4494(V)

  • Native Resolution

    1920*540

  • Brightness

    400 Nits

  • Contrast Ratio

    5000:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤120W

  • Packing Carton Dimension

    1050x400x120mm

  • Net Weight

    17KG

  • Gross Weight

    19KG

43.9"-G439AV540-S01
  • Active Display Area

    1073.77(H)×302(V)mm

  • Overall Size

    1105×332×55mm

  • Pixel Pitch (mm)

    0.55926(H)×0.55926(V)

  • Native Resolution

    1920*540

  • Brightness

    400 Nits

  • Contrast Ratio

    3000:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤120W

  • Packing Carton Dimension

    1250x480x120mm

  • Net Weight

    24KG

  • Gross Weight

    27KG

49.5"-G495AV540-S01
  • Active Display Area

    1209.6(H)×340(V)mm

  • Overall Size

    1240×370×55mm

  • Pixel Pitch (mm)

    0.315(H) x 0.315(V)

  • Native Resolution

    1920*540

  • Brightness

    400 Nits

  • Contrast Ratio

    1300:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤120W

  • Packing Carton Dimension

    1360x490x120mm

  • Net Weight

    27KG

  • Gross Weight

    30KG

58.5"-G585AVA80-S01
  • Active Display Area

    1428.48(H)×401.76(V)mm

  • Overall Size

    1465×439×60mm

  • Pixel Pitch (mm)

    0.372(H)×0.372(V)

  • Native Resolution

    3840*1080

  • Brightness

    400 Nits

  • Contrast Ratio

    1300:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤160W

  • Packing Carton Dimension

    1600x590x150mm

  • Net Weight

    35KG

  • Gross Weight

    40KG

67.5"-G675AVA80-S01
  • Active Display Area

    1650.2mm (H) x464.1mm (V)

  • Overall Size

    1678.6x490.8x120mm

  • Pixel Pitch (mm)

    0.4297(H) x 0.4297(V)

  • Native Resolution

    3840*1080

  • Brightness

    500 Nits

  • Contrast Ratio

    1200:1

  • Power Supply

    AC100-260V

  • Power Consumption( Watt)

    ≤120W

  • Packing Carton Dimension

    1800x615x300mm

  • Net Weight

    45KG

  • Gross Weight

    51KG

Panel Features
  • Viewing Angle

    178(H)/178(V)

  • Response Time

    10ms

  • Frame Rate

    60Hz

  • Life Time

    >30000 Hrs

Functions
  • OS System

    Android7.1/8.1/9.1/11 Optional

  • RAM+Flash

    DDR 2GB+EMMC 8G

    (Optional maximum 32G)

  • Video Format

    RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.

  • Picture Format

    JPG, JPEG, BMP, PNG, GIF

  • Audio Input/Output

    Supports left and right channel output

  • Network Support

    WIFI,4G

  • Picture

    Horizontal/Vertical/Split Scree

  • Timed Play

    Customized Play & Power On/Off

  • CMS

    Support Web/Local Info.Publish

  • Touch

    Optional

Input Ports(Customizable)
  • SD

    *1 (UP to 64G)

  • Micro-USB

    *3

  • HDMI OUT

    *1

  • LAN/RJ45

    *1

Environmental
  • Operating Temperature

    0°C - 50°C/-20-70 Optional

  • Storage Temperature

    —20°C - 50°C

  • Operating Humidity

    10% - 80%

  • Storage Humidity

    10% - 80%

Outer Frame
  • Material

    Sheet metal/profile optional

  • Color

    Customizable

  • Tempered Glass

    Optional

Gallery
Gallery
Why Choose Gomany
  • Quality Assurance
    Quality is built into every step of our manufacturing process, with dedicated quality control specialists conducting rigorous inspections at each stage to ensure zero defects. This meticulous approach guarantees customers receive LCD screens of uncompromising quality and reliability.
  • Mature Experience
    With extensive expertise in the commercial display sector, Gomany has successfully implemented large-scale digital signage deployments across diverse industries including retail, transportation, industrial applications, and smart city infrastructure. Our track record spans over 400,000 display installations since founding, demonstrating our capacity to deliver robust, industry-tailored visual communication solutions.
  • Project Evaluation

    Our expert consulting team provides comprehensive project evaluation, delivering tailored optimization recommendations and actionable solutions - saving you valuable time and resources while maximizing your project's potential.


  • Delivery Guarantee
    We guarantee reliable product delivery through our robust manufacturing system, currently maintaining a stable monthly output of 8,000+ commercial LCD digital display products Our precision-planned production scheduling ensures on-time, accurate deliveries to meet your project timelines without compromise.
  • Lifetime Technical Support
    Upon delivery, you'll receive complete operational guidance for your equipment. Should any technical issues arise, our engineering team provides immediate remote assistance to ensure rapid resolution - minimizing downtime and maximizing your operational efficiency.
  • Support Customization
    We provide a full range of customization services. You can add logos, choose colors, materials, and even customize functions to the products according to your needs. As long as you have requirements, we will try our best to tailor the most suitable solution for you.
  • 3D Rendering Service
    Our advanced 3D visualization solutions enable you to preview photorealistic display simulations before production, ensuring every detail meets your exact specifications. This empowers data-driven decision making and optimized planning for your projects.
  • Product Testing
    Each LCD digital display device unit undergoes stringent pre-shipment testing, including environmental , mechanical vibration, and waterproof evaluations. This comprehensive validation process ensures stable operation in all conditions, delivering truly maintenance-free performance for your peace of mind.
  • Support Warranty
    All display products come with 1-3 years of comprehensive warranty, with duration determined by your selected solution. Should you require extended coverage, our support team will customize an optimal protection plan tailored to your specific needs.
