Gomany's Touch Screen Information Kiosk

Make Information Delivery At Your Fingertips With Touchscreen Display Kiosk

Information Query
Support Multimedia Formats
Touch Support
Integrated Wifi
Quick Response
A+ Grade Commercial Panel
Anti-glare
Quality Assurance

What Is Digital Signage
Information Kiosk?

Interactive digital kiosk is an intelligent interactive device tailored for modern indoor environments, focusing on improving user engagement and optimizing the process of obtaining information. In the fields of retail, exhibitions, public services, etc., users can easily browse product catalogs, view event schedules, explore venue layouts, and even enjoy personalized recommendation services by simply touching the screen.

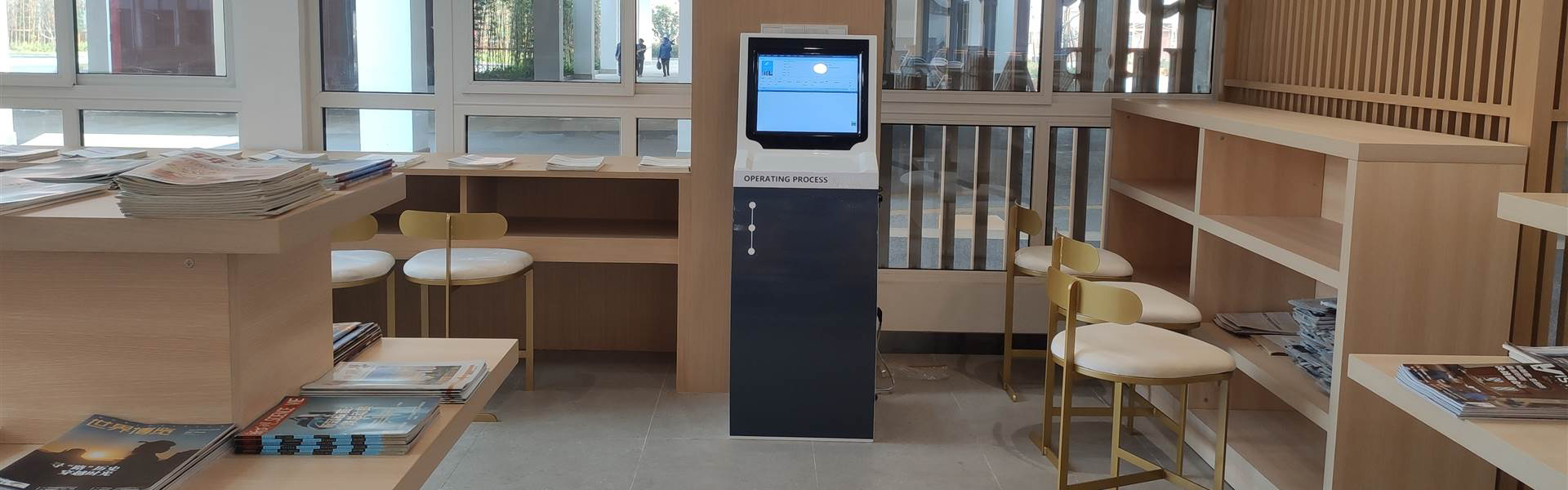

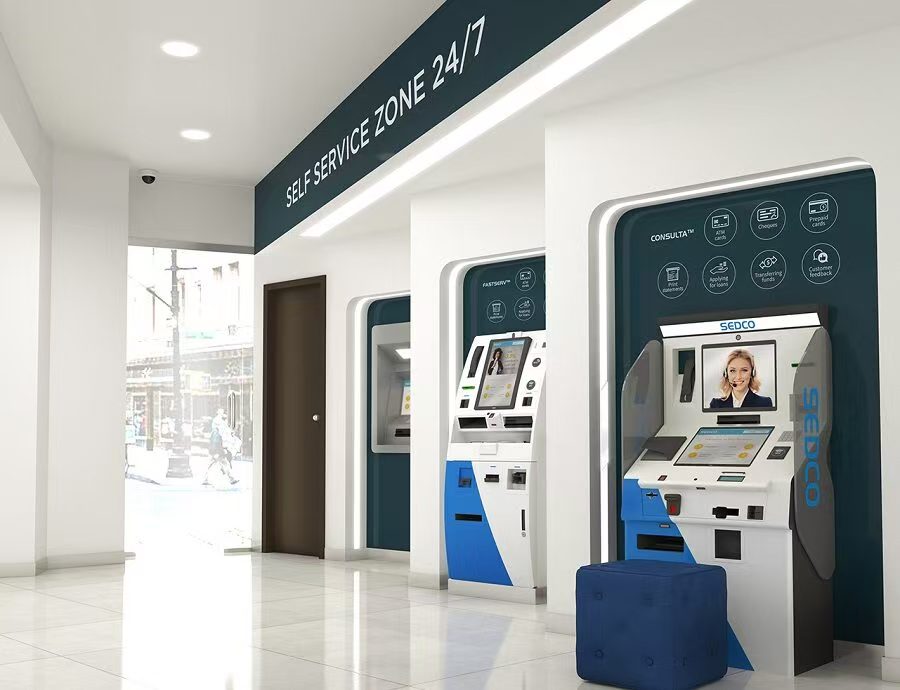

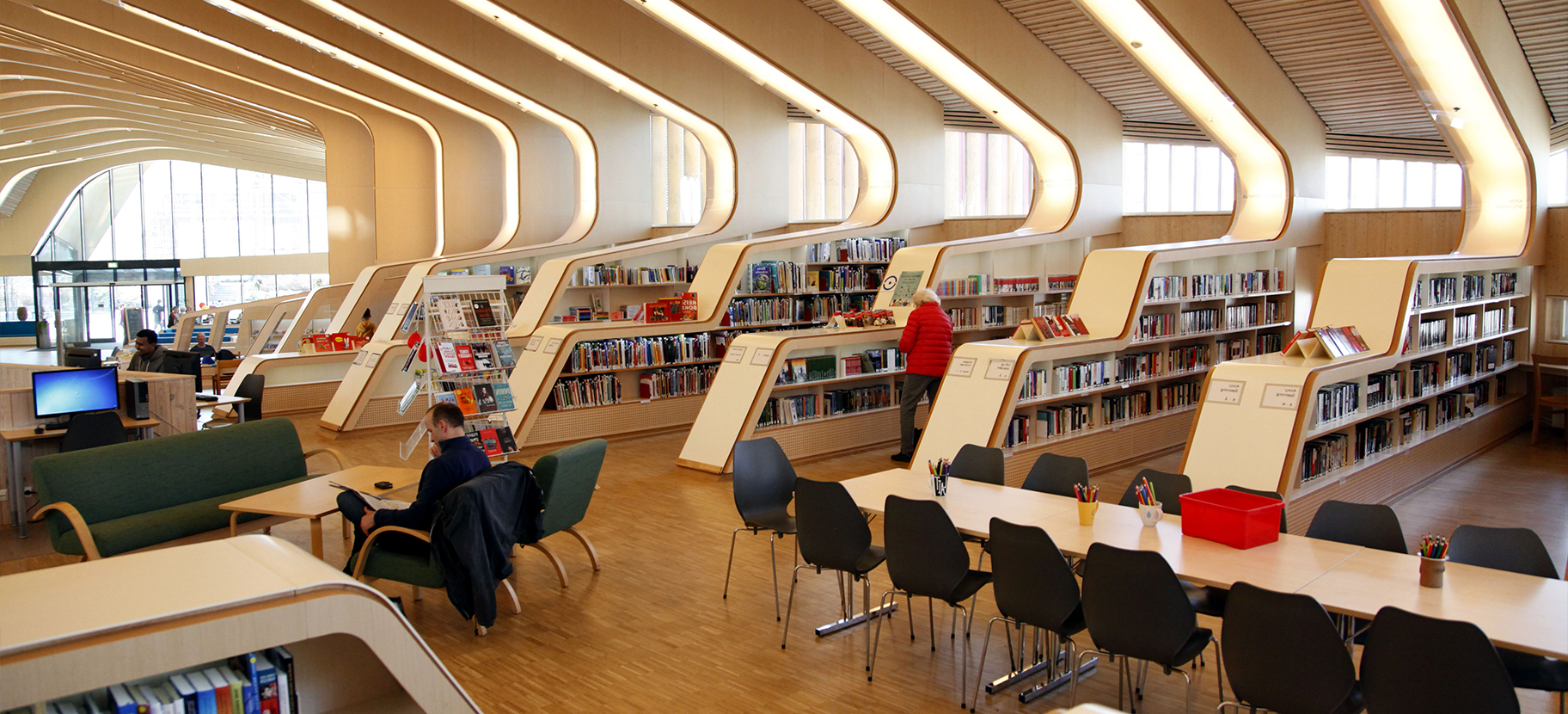

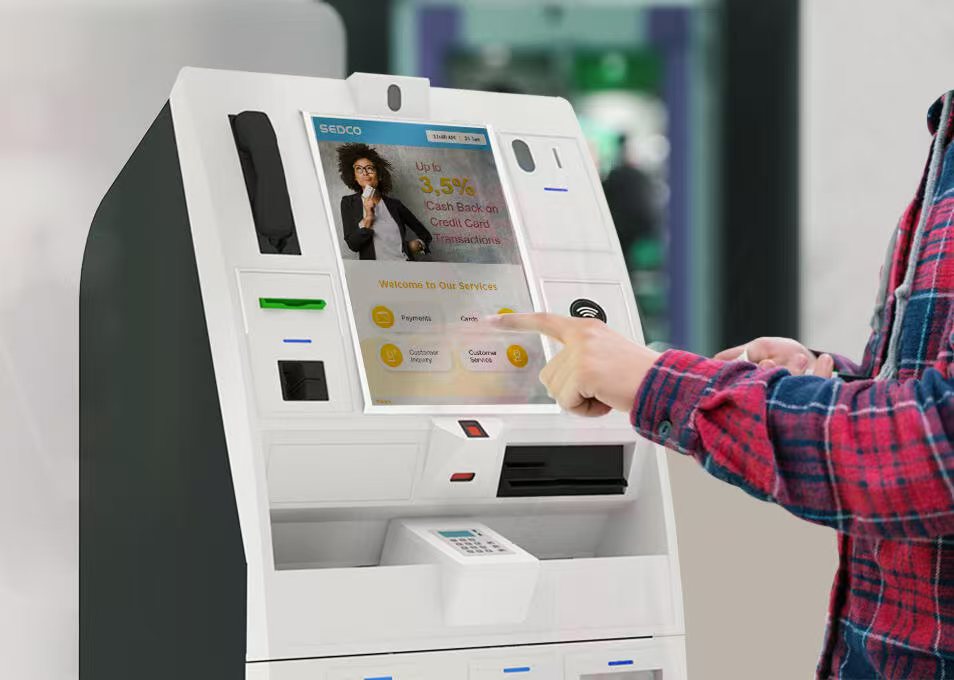

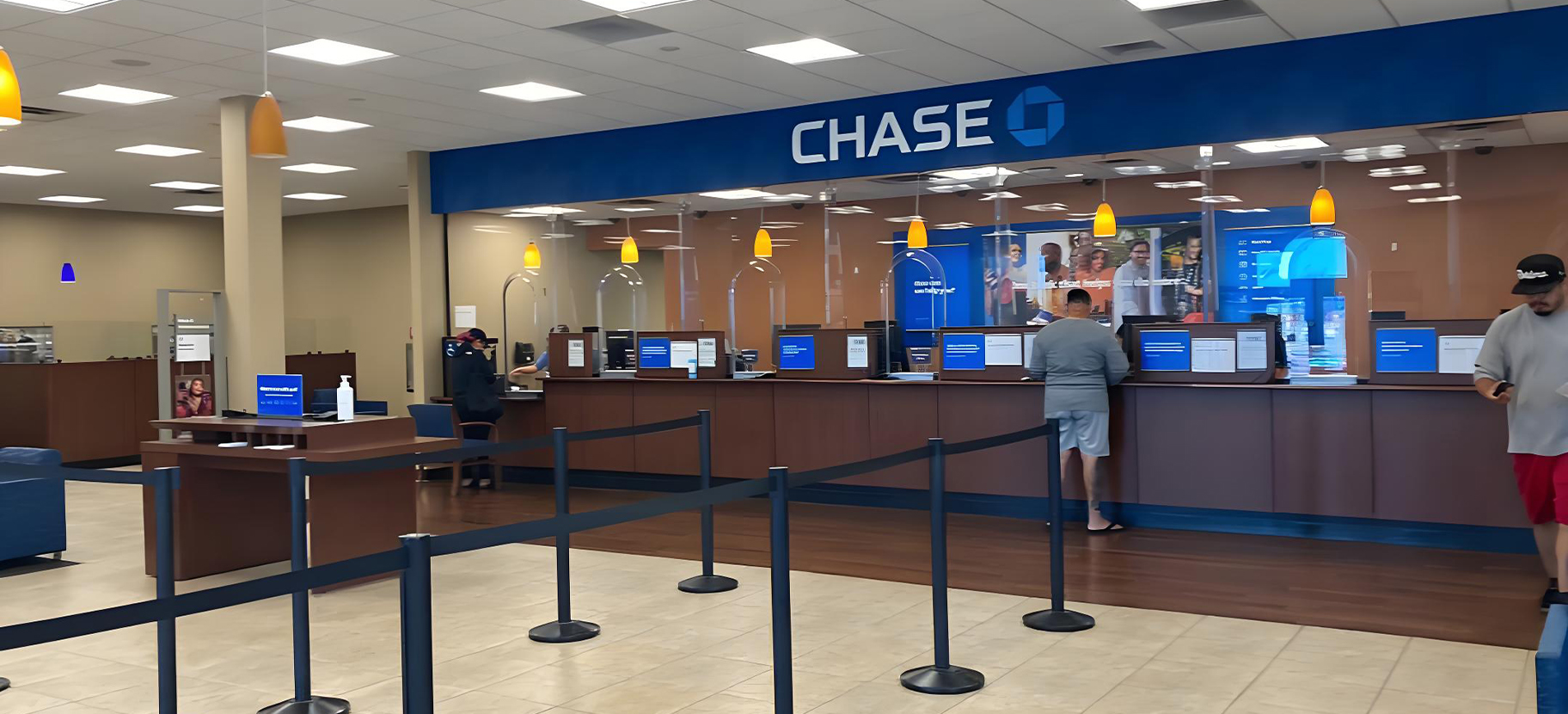

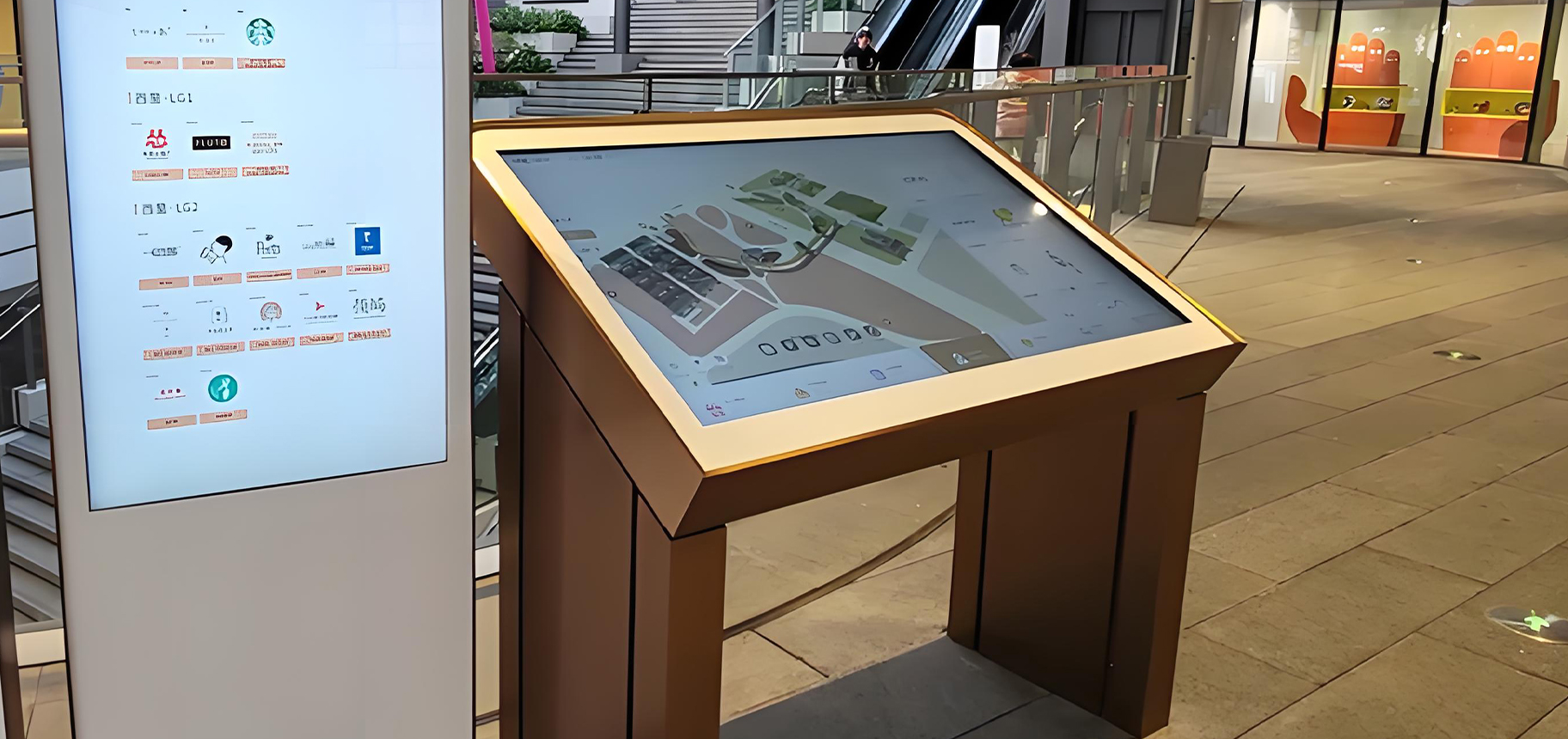

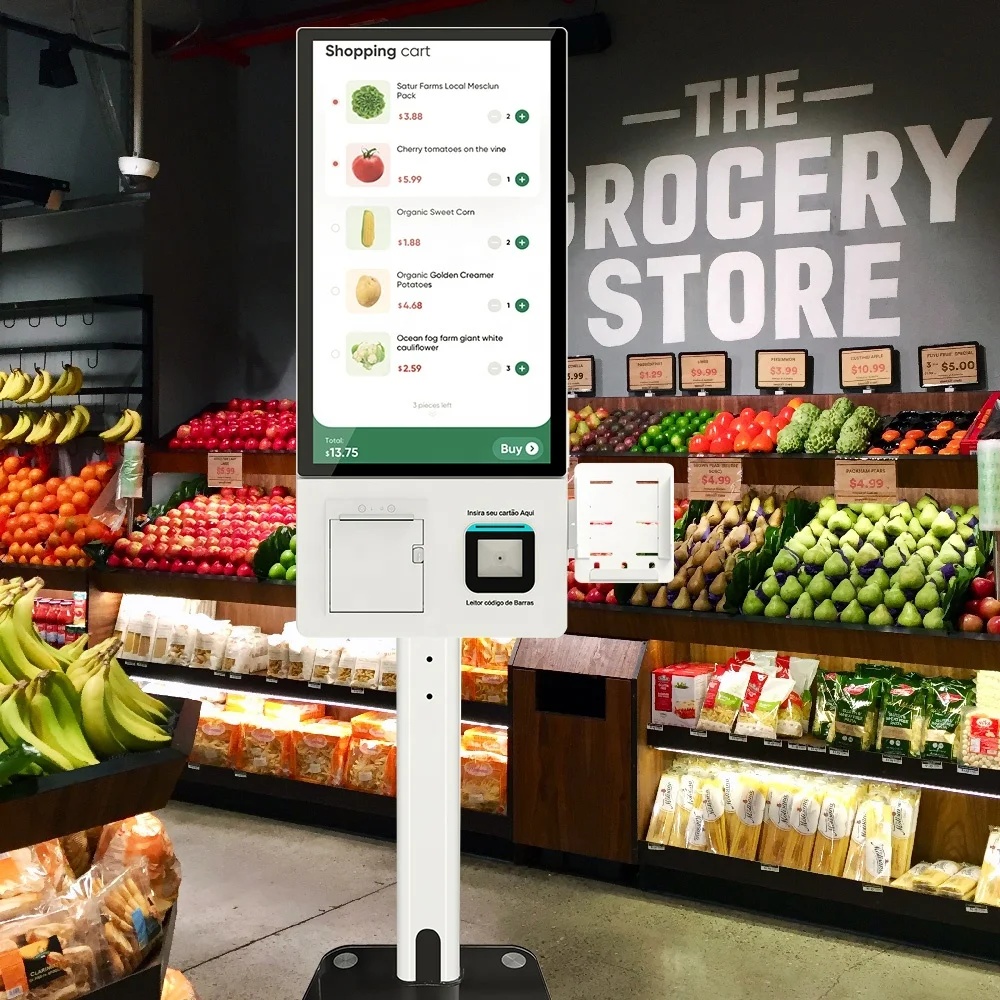

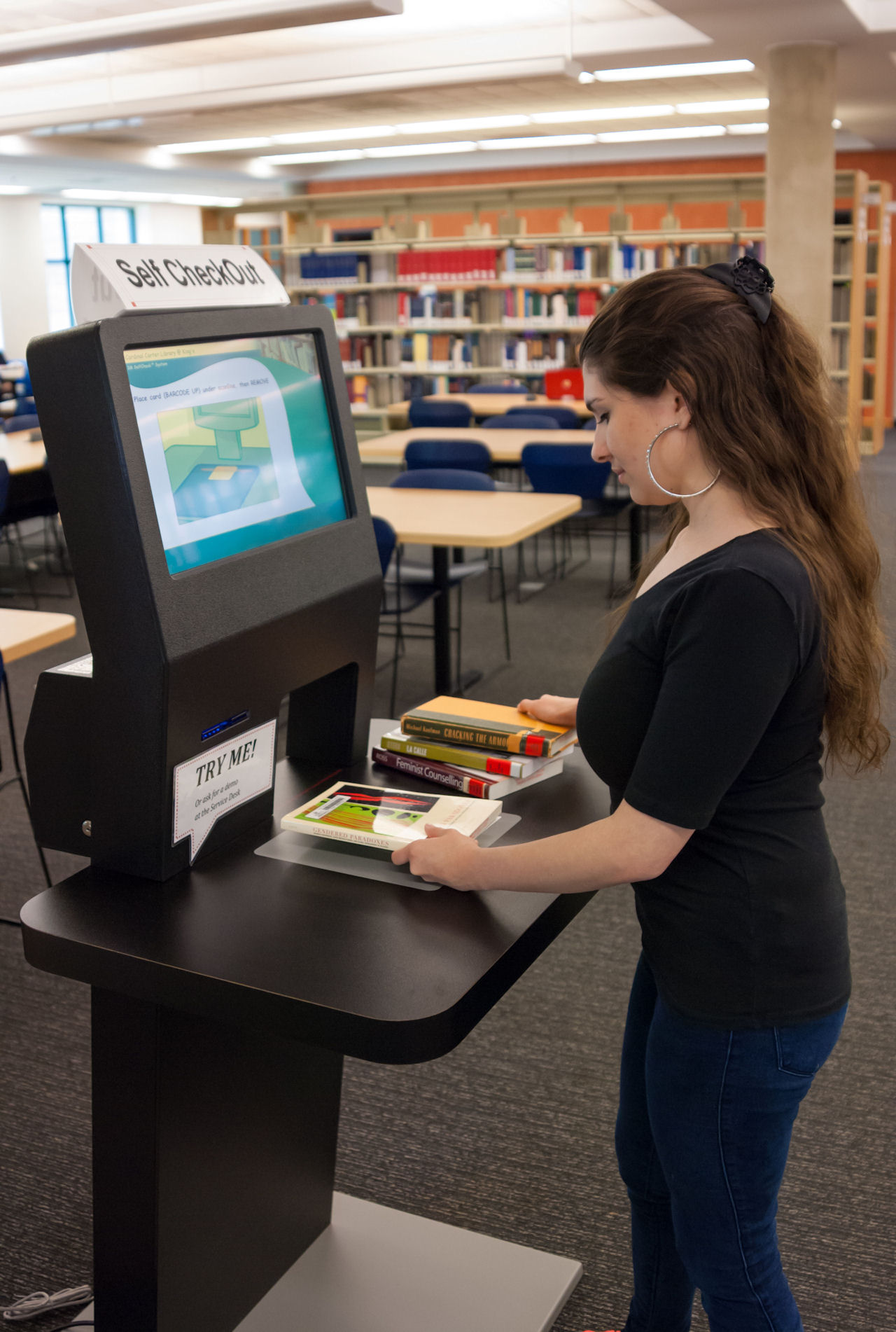

Our interactive digital kiosk has three types. The 19" floor standing touch screen kiosk has a 4:3 display ratio and can be used for self-service information query. It is suitable for use in libraries or companies where query is the priority. The 43" interactive kiosk machine is mainly used in banks or government systems. It has functions such as query, card swiping, and printing, which can bring more convenience to users. The 55" digital display touch screen kiosk is mainly used in retail supermarkets. It adopts a flat design and can easily guide customers to route information.

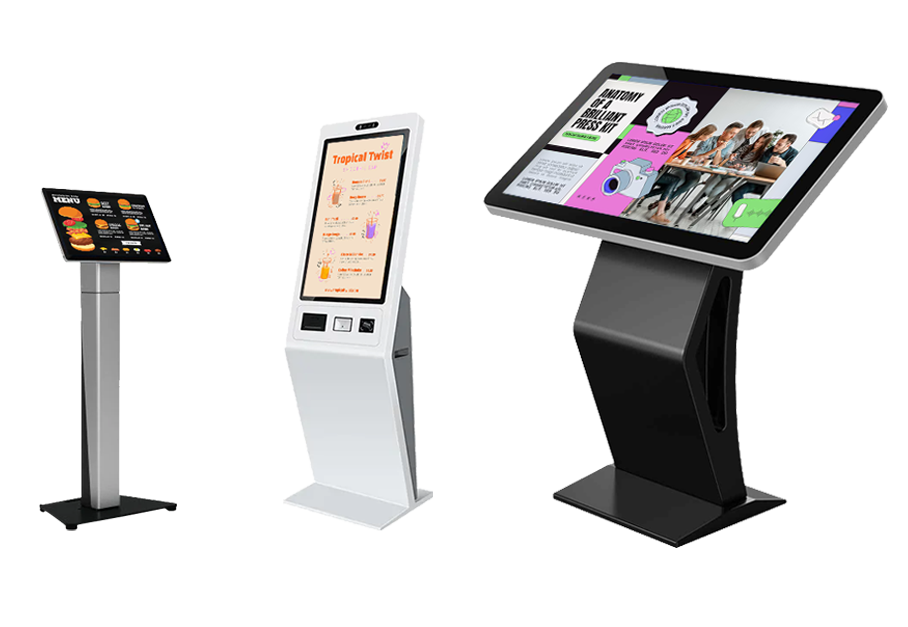

3 Types of Information Kiosks for Different Use Cases

Integrated Android System

This information kiosk is integrated with the Android operating system, making it easier to update and manage content.
Information Search Function

This advertising kiosk uses touch technology, and visitors can easily find various information by touching the screen.
Multimedia Function Display

This digital display monitor supports high-definition video, image and audio playback in multiple formats, bringing more possibilities for information display.

24/7 Operation

This touch screen kiosks uses LED backlight technology, which has low energy consumption, longer service life, and heat dissipation capabilities to ensure long-term operation of the device.
Anti-glare Panel

It uses an anti-glare panel processed with advanced optical technology to effectively reduce light reflection and ensure that information is clearly visible under different lighting conditions.
Tempered Glass Reinforcement

This touch screen kiosks utilizes tempered glass to reinforce the screen, which is highly impact-resistant and can withstand simple collisions and scratches, ensuring long-term stable operation of the device.

Optimize User Experience With Information Kiosk

This display kiosk can print through the system

Other Options

Full Specification

19 Inch
43 Inch
55 Inch

19"-G190DTWA24-S01

Active Display Area

374.8(L×299.8(V) mm
Overall Size

435.2(L)*348.2(V)*1028.11(H)mm
Pixel Pitch (mm)

0.2928×0.2928
Native Resolution

1280*1024
Brightness

400Nits
Contrast Ratio

1000:1
Power Supply

AC 110-240V
Power Consumption( Watt)

≤50W
Packing Carton Dimension

600*550*1200mm
Net Weight

12KG
Gross Weight

15KG

43"-G430DTWA80-S01

Active Display Area

940.896(L)×529.254(V) mm
Overall Size

1011.58(L)*599.82(V)*1103.25(H)mm
Pixel Pitch (mm)

0.49×0.49
Native Resolution

1920*1080
Brightness

400Nits
Contrast Ratio

1200:1
Power Supply

AC 110-240V
Power Consumption( Watt)

≤65W
Packing Carton Dimension

1200*800*1300mm
Net Weight

40KG
Gross Weight

45KG

55"-G550DTWN60-S01

Active Display Area

1209.6(L)×680.4(V) mm
Overall Size

1283(L)*753.8(V)*1139.76(H)mm
Pixel Pitch (mm)

0.315×0.315
Native Resolution

3840*2160
Brightness

400Nits
Contrast Ratio

1300:1
Power Supply

AC 110-240V
Power Consumption( Watt)

≤85W
Packing Carton Dimension

1480*950*1350mm
Net Weight

55KG
Gross Weight

60KG

Panel Features

Viewing Angle

178(H)/178(V)
Response Time

10ms
Frame Rate

60Hz
Life Time

>30000 Hrs

Functions

OS System

Android7.1/8.1/9.1/11 Optional
RAM+Flash

DDR 2GB+EMMC 8G

(Optional maximum 32G)
Video Format

RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.
Picture Format

JPG, JPEG, BMP, PNG, GIF
Audio Input/Output

Supports left and right channel output
Network Support

WIFI,4G

Horizontal/Vertical/Split Scree
Timed Play

Customized Play & Power On/Oﬀ
CMS

Support Web/Local Info.Publish
Touch

Infrared 20-point touch

Input Ports（Customizable）

SD

*1 (UP to 64G)
Micro-USB

*3
HDMI OUT

*1
LAN/RJ45

*1

Environmental

Operating Temperature

0°C - 50°C/-20-70 Optional
Storage Temperature

—20°C - 50°C
Operating Humidity

10% - 80%
Storage Humidity

10% - 80%

Outer Frame

Material

Sheet metal/profile optional
Color

Customizable
Tempered Glass

Optional
