Bus Stop
Outdoor Digital Signage Kiosk
55"/65" Optional, Customization Options Available

Bus Shelter Digital Signage Brings Convenience To Passengers
  • Real-time Update
  • Dustproof
  • Waterproof
  • High Brightness
  • Automatic Brightness Adjustment
  • High Readability
  • Android Operating System
  • Commercial-grade Panel
  • Lifetime Technical Support
What Has Bus Shelter Digital Signage
Brought To Commuting?
In modern urban areas, public transportation is the primary mode of commuting for most people. Previously, bus shelter displays lacked the capability to show real-time information, leading to information asymmetry and uncertain waiting times for passengers. Addressing this need, Gomany has developed bus shelter digital signage.
This digital signage integrates an HD display and a real-time data transmission system, link the bus system to provide passengers with an intelligent waiting environment. It facilitates passenger travel by continuously displaying the arrival times, route information, and transfer options for buses. For bus operators, it enables passenger flow monitoring and data analysis, helping managers to optimize bus scheduling and improve operational efficiency.

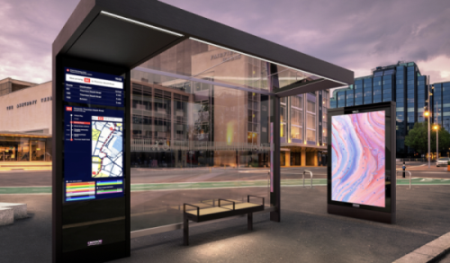

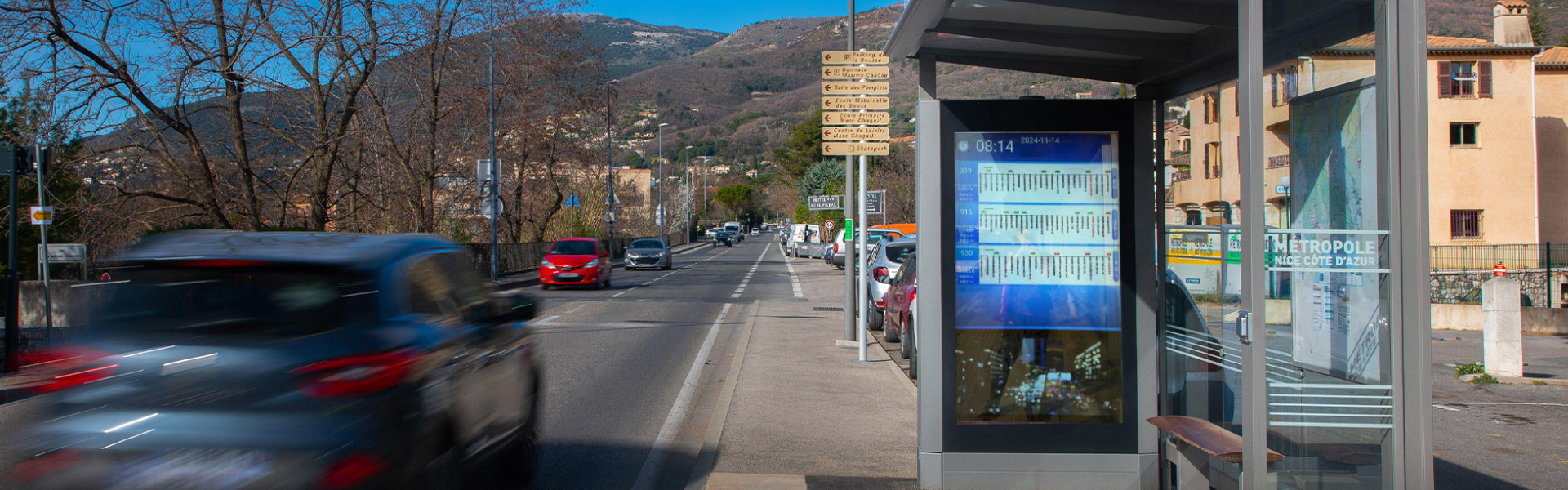

Preview image of bus shelter digital signage

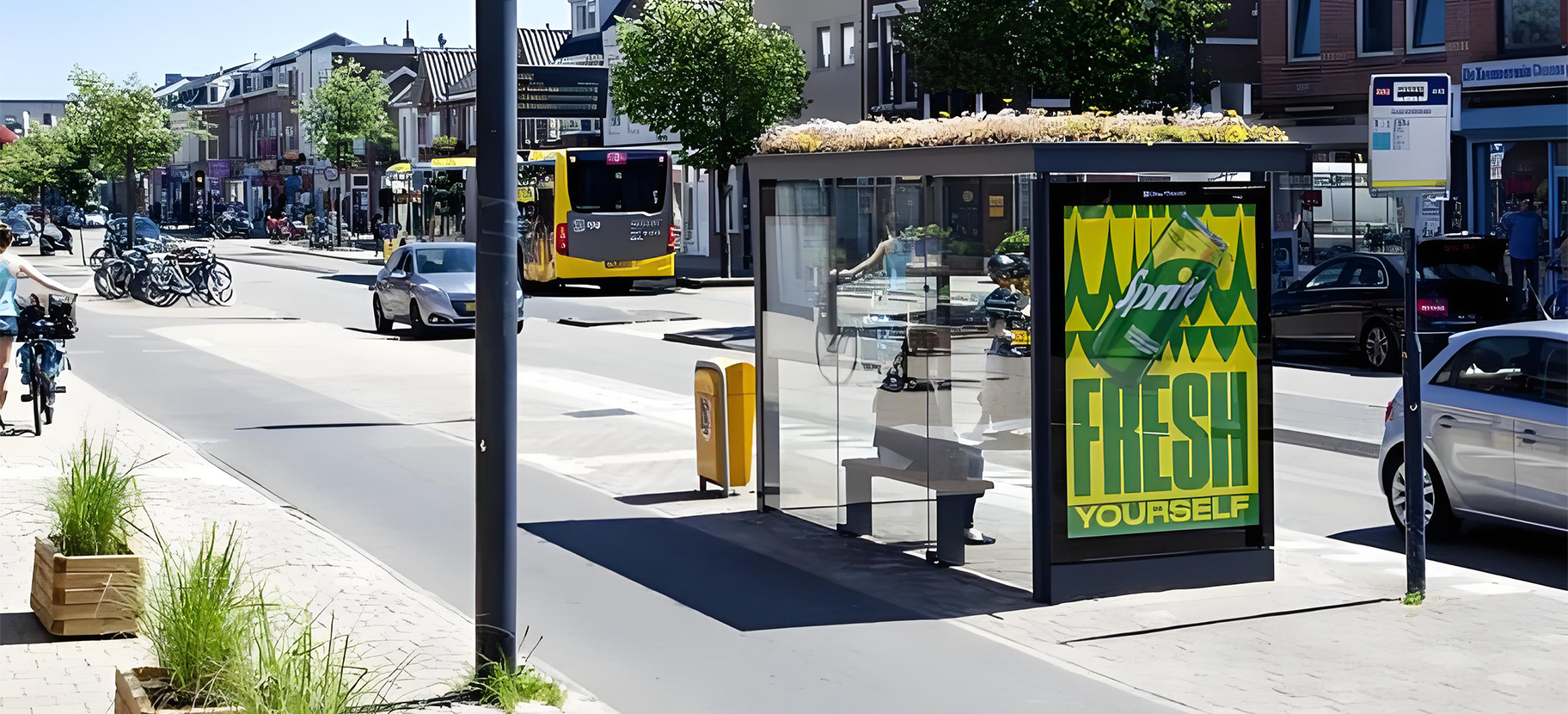

Preview image of bus shelter digital signage
  • Strong Heat Dissipation Capability

    This electronic bus stop LCD sign has the ability to dissipate heat efficiently, which can ensure stable operation of the device in a high temperature environment and avoid equipment failure caused by overheating. This design is particularly suitable for outdoor use to ensure stable operation at bus stops.

  • Operates 24/7

    As the main way of modern travel, this bus station digital signage can support uninterrupted operation around the clock, and its durable design and low-power technology can ensure that the information of each train can be accurately displayed at any time of time.

  • Route Adjustment Reminder

    When the bus route is facing temporary adjustment, the advertising LCD screen can update the information and issue reminders through the remote system in the first time, so that passengers can perceive the route changes as quickly as possible, avoiding wrong rides or detours due to information asymmetry.

  • Brightness Adjustment

    Considering the all-day nature of bus travel, Gomany designed this kiosk with a brightness adjustment function, which automatically increases the brightness of the screen during the day when the sun is strong to ensure that the information is clearly visible; At night or in low-light environments, the brightness is automatically reduced to avoid harsh light affecting passengers' vision, which not only improves the user experience, but also reduces energy consumption.


  • Real-time Update Of Route Information

    The bus outdoor advertising kiosk can synchronize data with the bus operation system in real time, and can dynamically display the bus arrival time, distance and route adjustment information. Passengers no longer need to rely on paper departure times, which greatly reduces the uncertainty of waiting time.

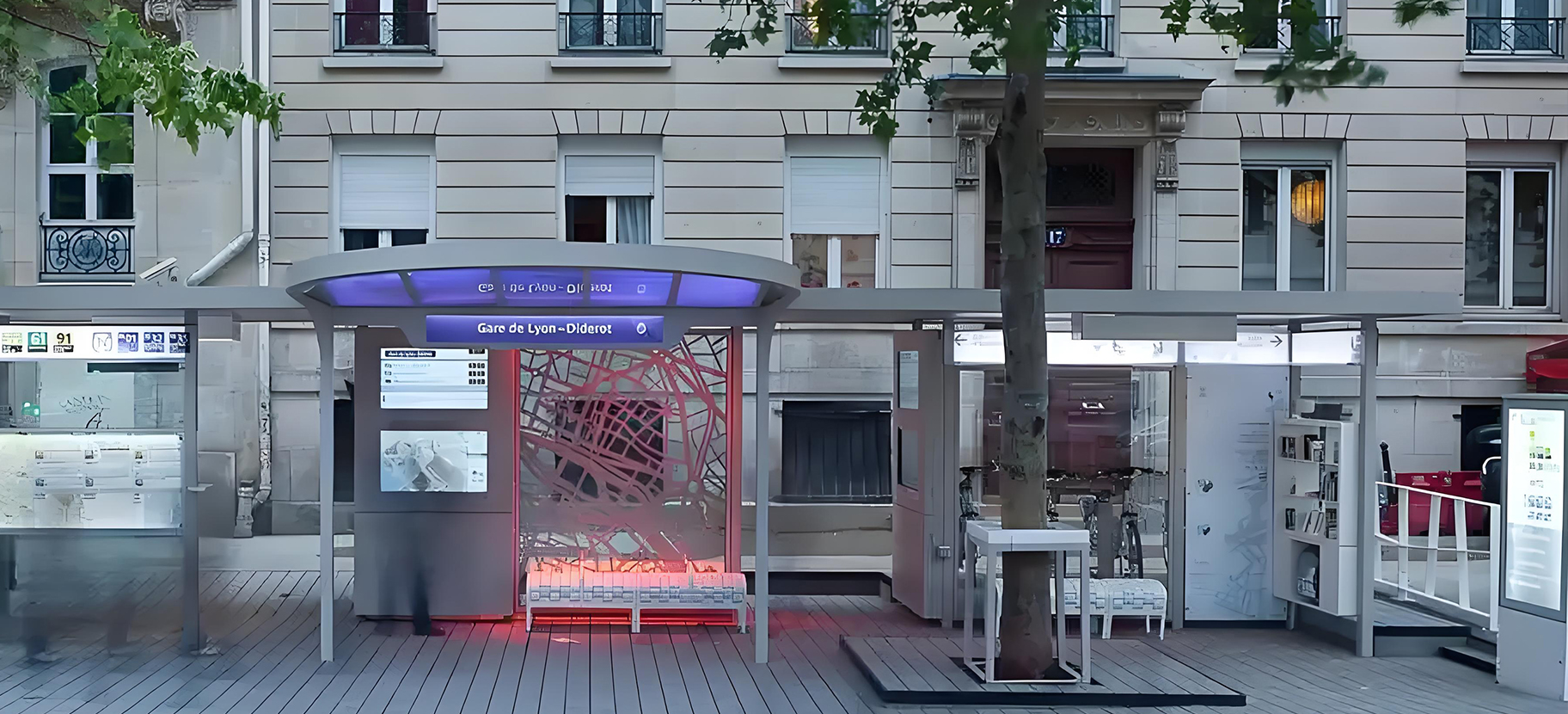

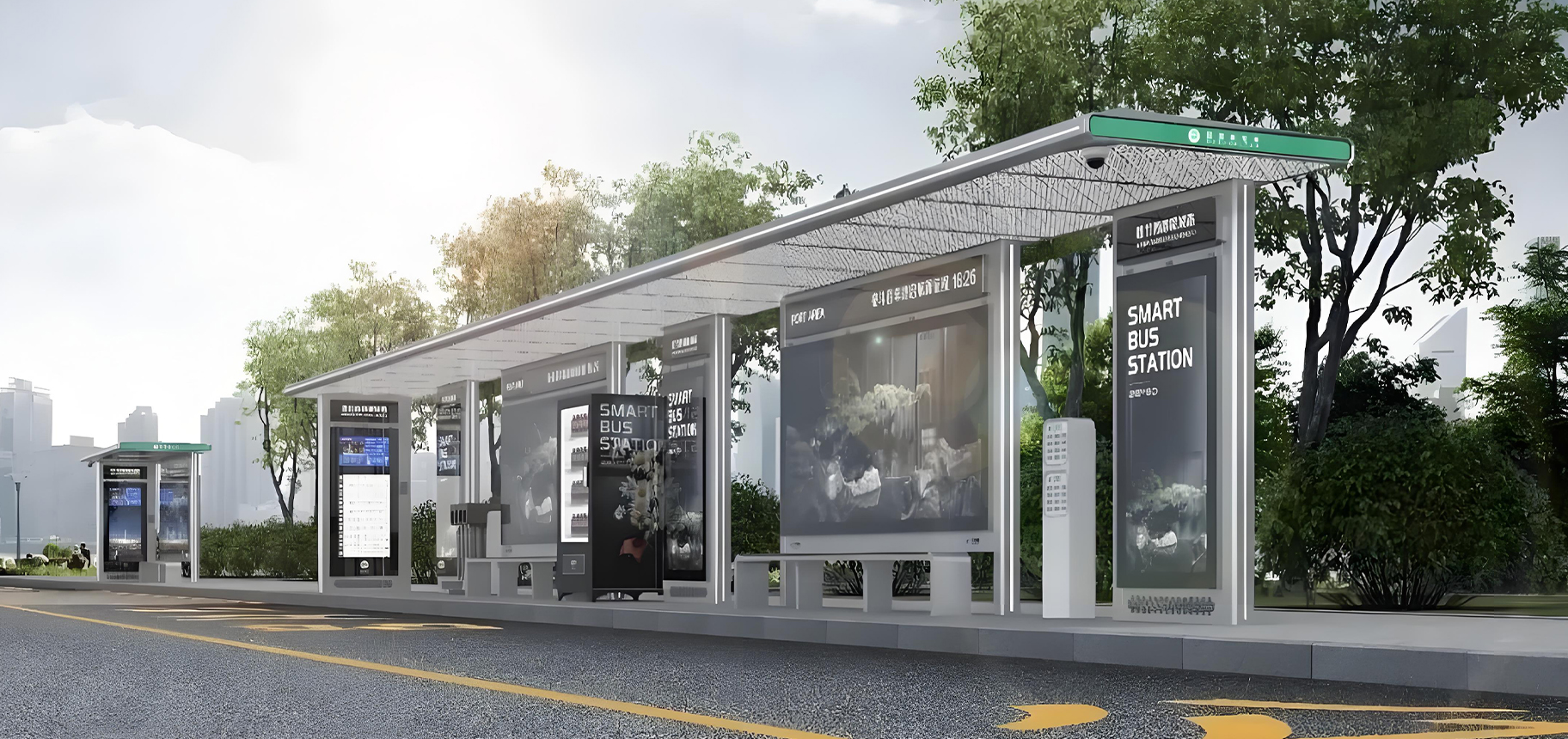

Bus Shelter Digital Signage Makes The City Full Of Technology
Bus Shelter Digital Signage provides convenience for people to travel
Other Options
Specification
Full Specification
  • 55 Inch
  • 65 Inch
55"-G55DWA80-D02
  • Active Display Area

    680.4(H)*1209.6(V)mm

  • Overall Size

    800(H)*1990(V)*125(W)mm

  • Pixel Pitch (mm)

    0.315*0.315

  • Native Resolution

    1080*1920

  • Brightness

    2000Nits

  • Contrast Ratio

    4000:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤350W

  • Packing Carton Dimension

    1200*2500*350mm

  • Net Weight

    100KG

  • Gross Weight

    120KG

65"-G650DWN60-D02
  • Active Display Area

    803(H)*1428(V)mm

  • Overall Size

    960(H)*2100(V)*150(W)mm

  • Pixel Pitch (mm)

    0.372*0.372

  • Native Resolution

    2160*3840

  • Brightness

    2000Nits

  • Contrast Ratio

    4000:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤700W

  • Packing Carton Dimension

    1360*2500*350mm

  • Net Weight

    120KG

  • Gross Weight

    150KG

Panel Features
  • Viewing Angle

    178(H)/178(V)

  • Response Time

    10ms

  • Frame Rate

    60Hz

  • Life Time

    >30000 Hrs

Functions
  • OS System

    Android7.1/8.1/9.1/11 Optional

  • RAM+Flash

    DDR 2GB+EMMC 8G

    (Optional maximum 32G)

  • Video Format

    RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.

  • Picture Format

    JPG, JPEG, BMP, PNG, GIF

  • Audio Input/Output

    Supports left and right channel output

  • Network Support

    WIFI,4G

  • Picture

    Horizontal/Vertical/Split Scree

  • Timed Play

    Customized Play & Power On/Off

  • CMS

    Support Web/Local Info.Publish

  • Touch

    Optional

Input Ports(Customizable)
  • SD

    *1 (UP to 64G)

  • Micro-USB

    *3

  • HDMI OUT

    *1

  • LAN/RJ45

    *1

Environmental
  • Operating Temperature

    —20°C - 70°C

  • Storage Temperature

    —20°C - 50°C

  • Operating Humidity

    10% - 80%

  • Storage Humidity

    10% - 80%

Outer Frame
  • Material

    Sheet metal/profile optional

  • Color

    Customizable

  • Tempered Glass

    Optional

Cases
Our Digital Screen Projects

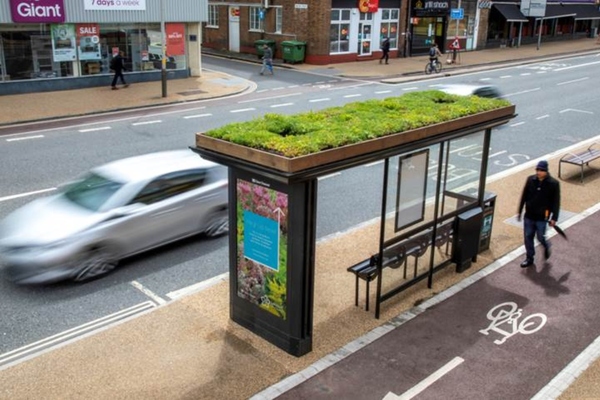

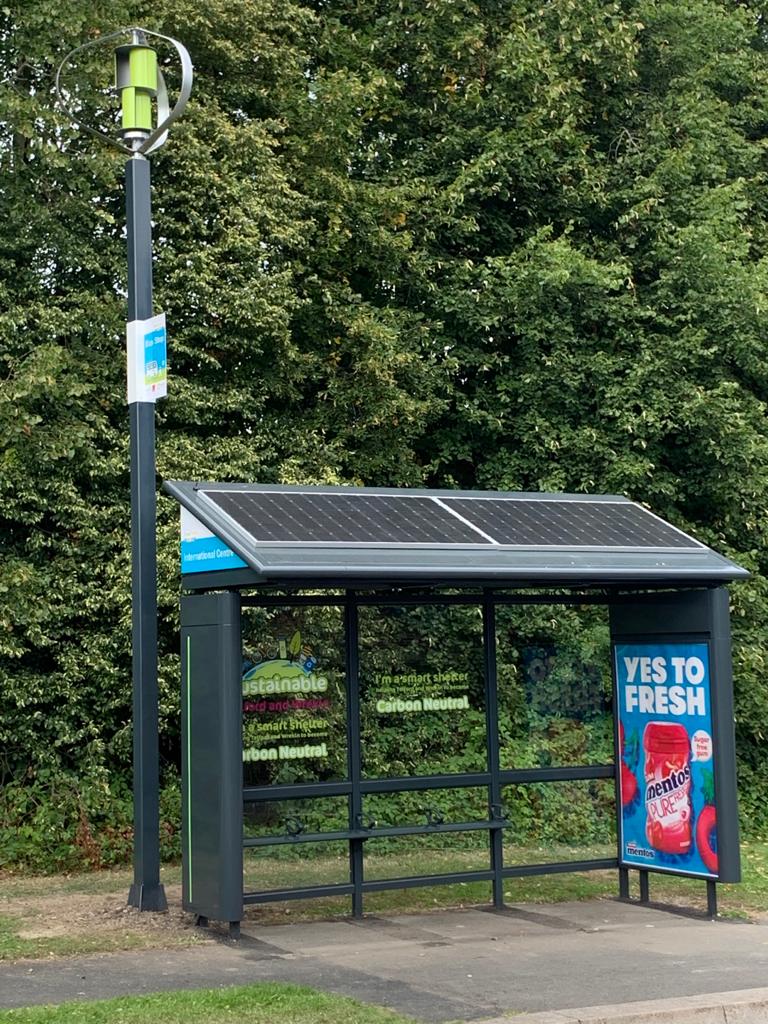

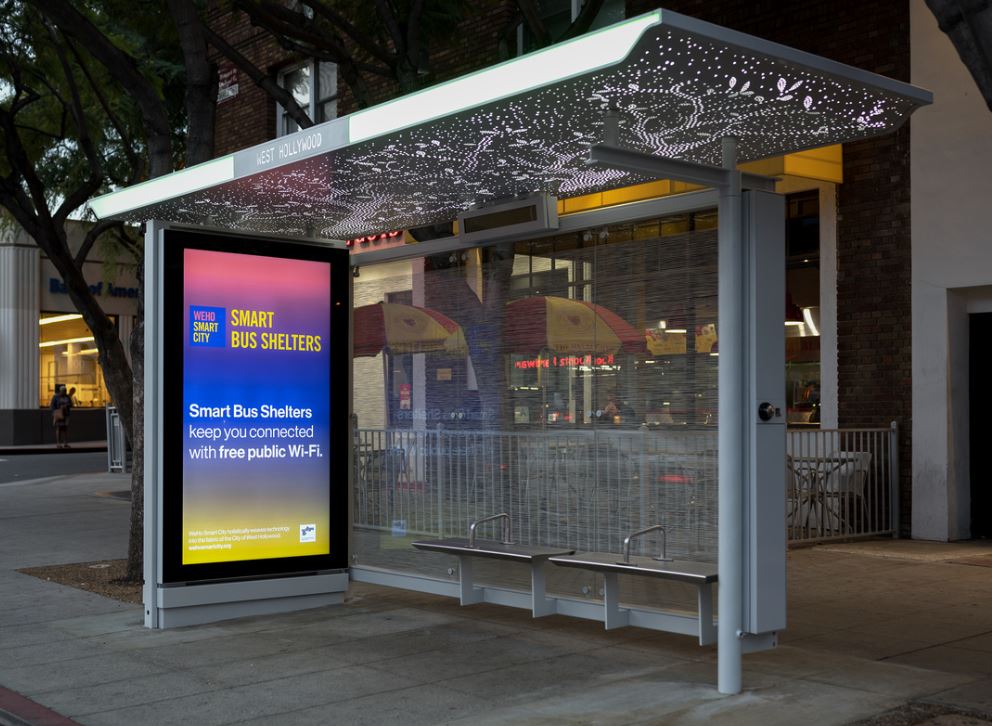

Gallery
Gallery
Why Choose Gomany
  • Quality Assurance
    Quality is built into every step of our manufacturing process, with dedicated quality control specialists conducting rigorous inspections at each stage to ensure zero defects. This meticulous approach guarantees customers receive LCD screens of uncompromising quality and reliability.
  • Mature Experience
    With extensive expertise in the commercial display sector, Gomany has successfully implemented large-scale digital signage deployments across diverse industries including retail, transportation, industrial applications, and smart city infrastructure. Our track record spans over 400,000 display installations since founding, demonstrating our capacity to deliver robust, industry-tailored visual communication solutions.
  • Project Evaluation
    Our expert consulting team provides comprehensive project evaluation, delivering tailored optimization recommendations and actionable solutions - saving you valuable time and resources while maximizing your project's potential.
  • Delivery Guarantee
    We guarantee reliable product delivery through our robust manufacturing system, currently maintaining a stable monthly output of 8,000+ commercial LCD digital display products Our precision-planned production scheduling ensures on-time, accurate deliveries to meet your project timelines without compromise.
  • Lifetime Technical Support
    Upon delivery, you'll receive complete operational guidance for your equipment. Should any technical issues arise, our engineering team provides immediate remote assistance to ensure rapid resolution - minimizing downtime and maximizing your operational efficiency.
  • Support Customization
    We provide a full range of customization services. You can add logos, choose colors, materials, and even customize functions to the products according to your needs. As long as you have requirements, we will try our best to tailor the most suitable solution for you.
  • 3D Rendering Service
    Our advanced 3D visualization solutions enable you to preview photorealistic display simulations before production, ensuring every detail meets your exact specifications. This empowers data-driven decision making and optimized planning for your projects.
  • Product Testing
    Each LCD digital display device unit undergoes stringent pre-shipment testing, including environmental , mechanical vibration, and waterproof evaluations. This comprehensive validation process ensures stable operation in all conditions, delivering truly maintenance-free performance for your peace of mind.
  • Support Warranty
    All display products come with 1-3 years of comprehensive warranty, with duration determined by your selected solution. Should you require extended coverage, our support team will customize an optimal protection plan tailored to your specific needs.
