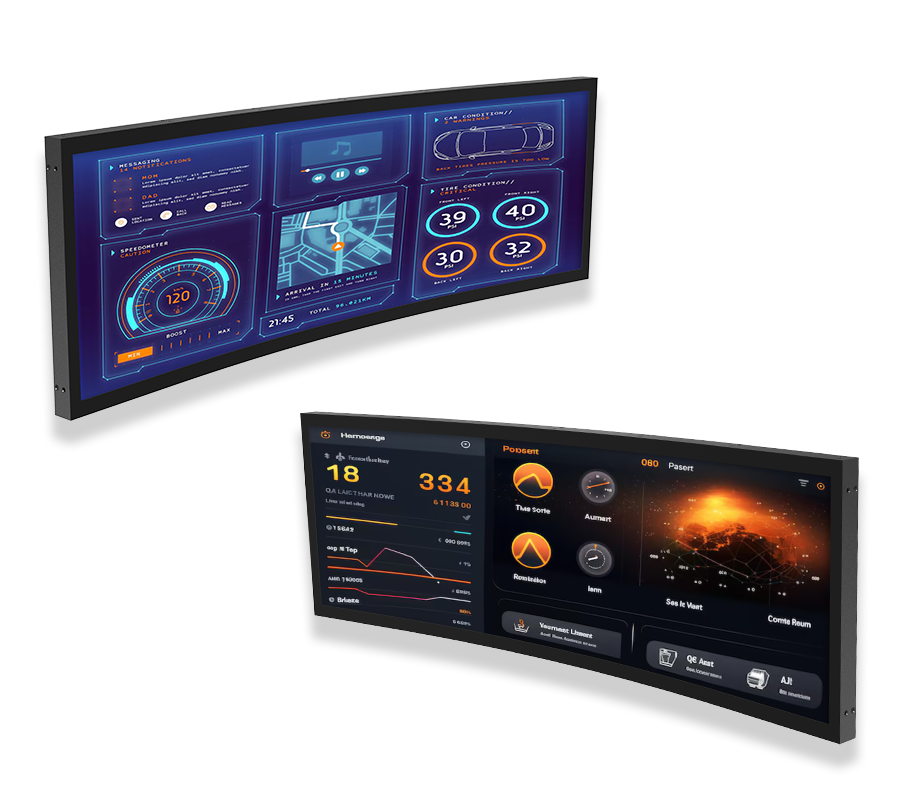

Gomany's Curved Stretched LCD Monitor

Bringing New Life To Casinos And Cars Through Digital Displays

Curved Curvature
Touch Support
Android Player
178° Viewing Angle
2K Resolution
Lifetime Technical Support
Multimedia Presentation
Fast Response Time

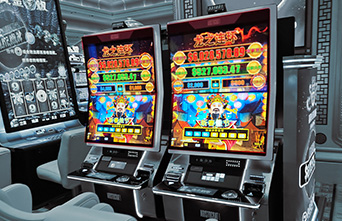

Why Casinos Deploy
Curved LCD Display?

Slot machines are an indispensable device in casinos. Many players are keen on this game. This curved display can perfectly fit in the slot machine with its unique display ratio, bringing it a wider field of view and better visual experience, increasing the player's stay time and bringing more revenue to the casino.

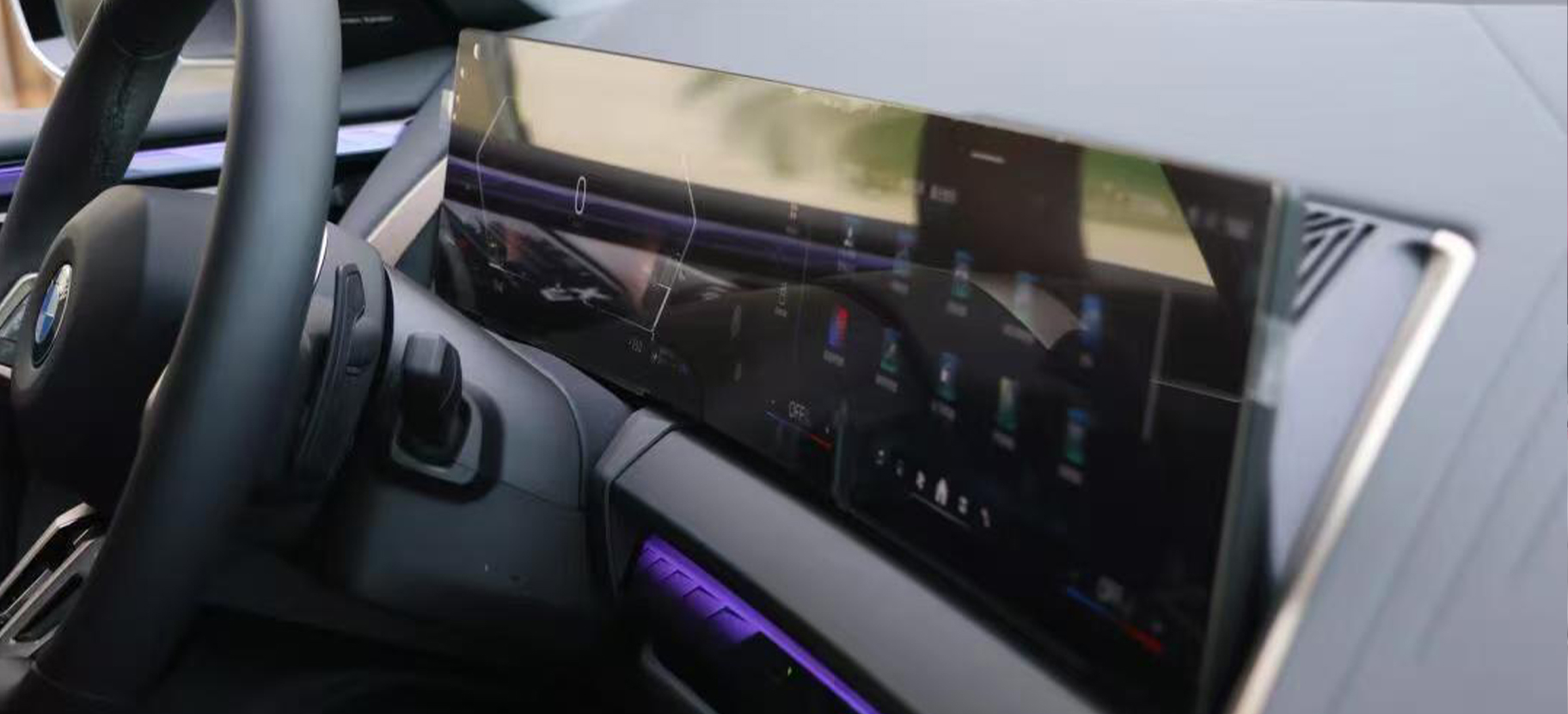

Front view of the Curved LCD Display acting as a car recorder

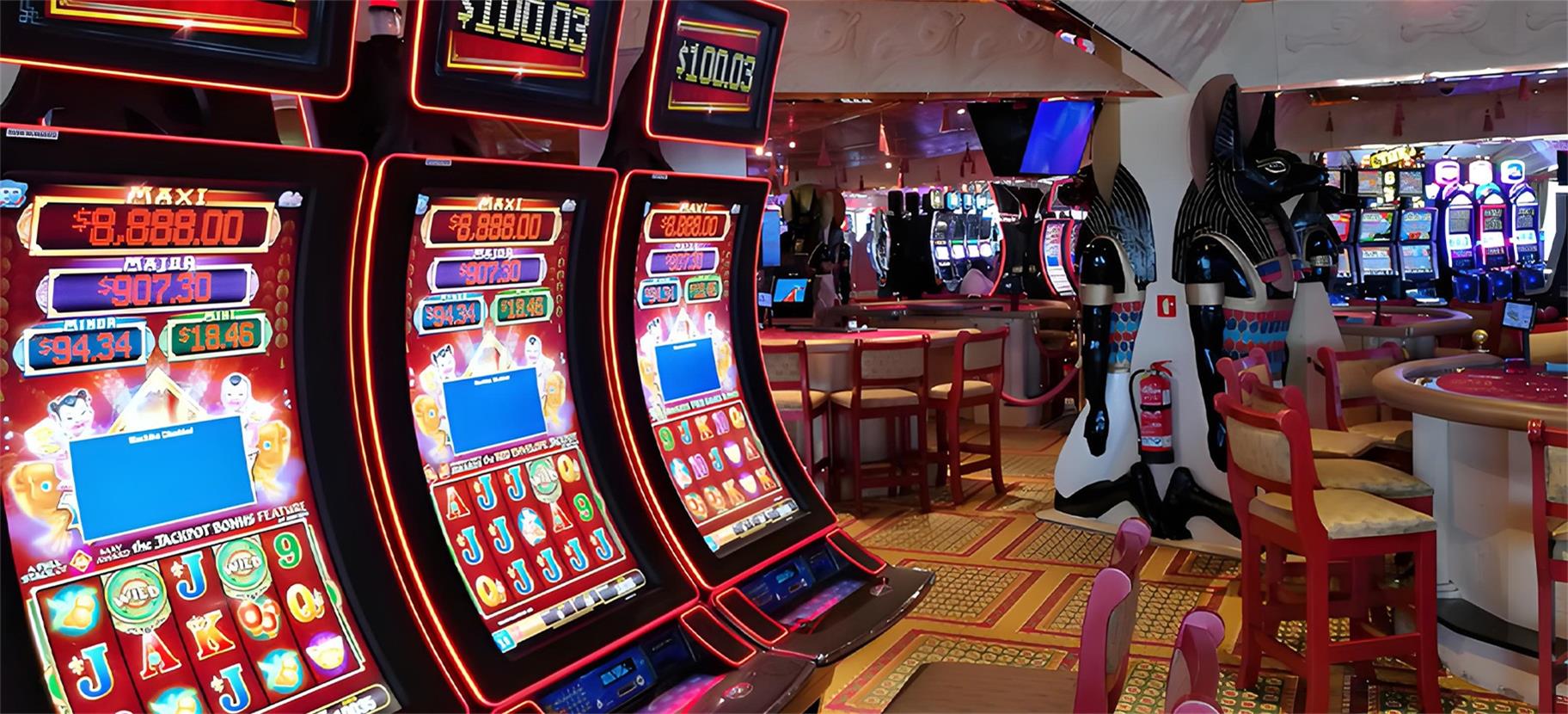

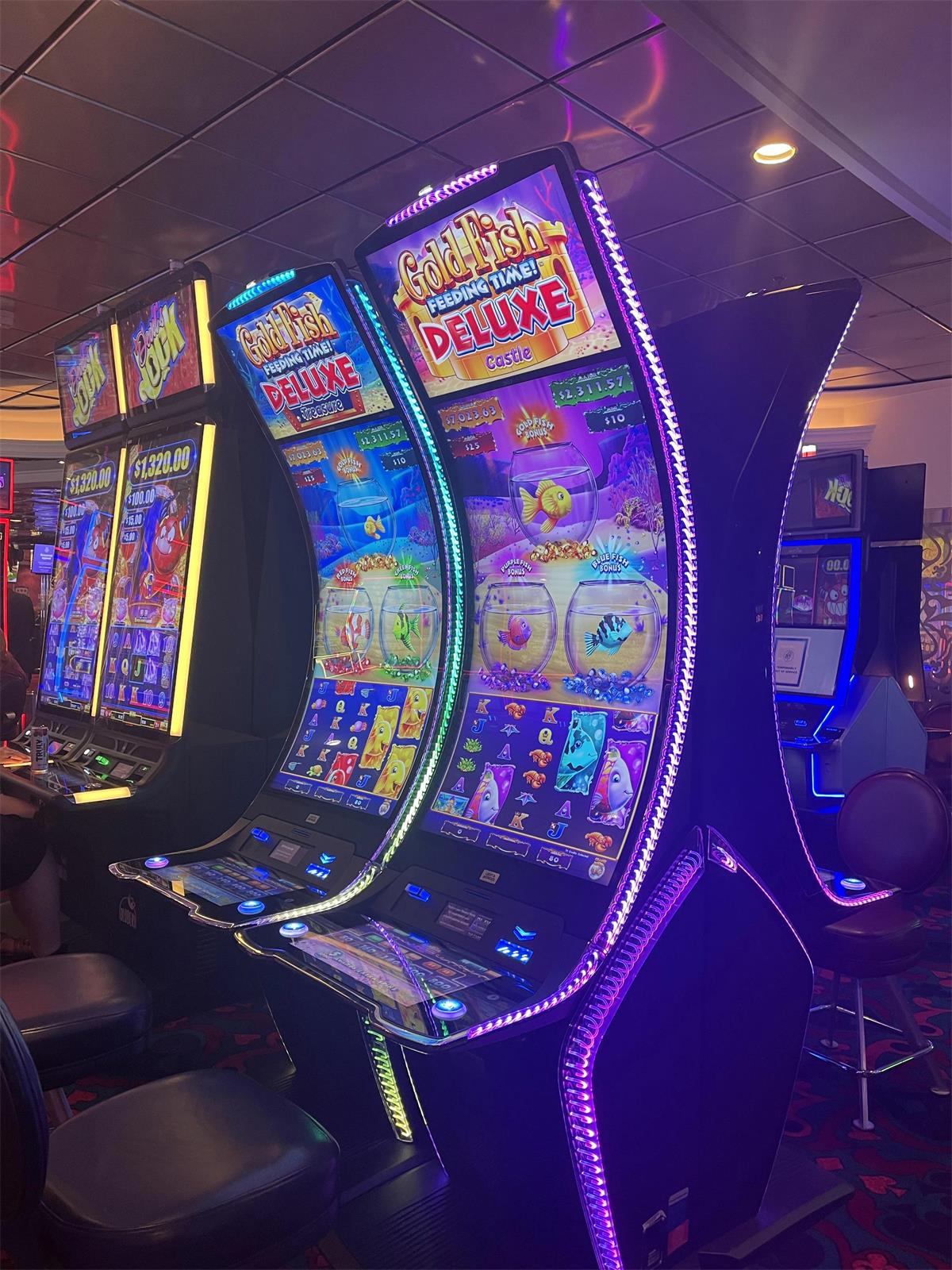

Front view of curved LCD Display used as casino slot machine display

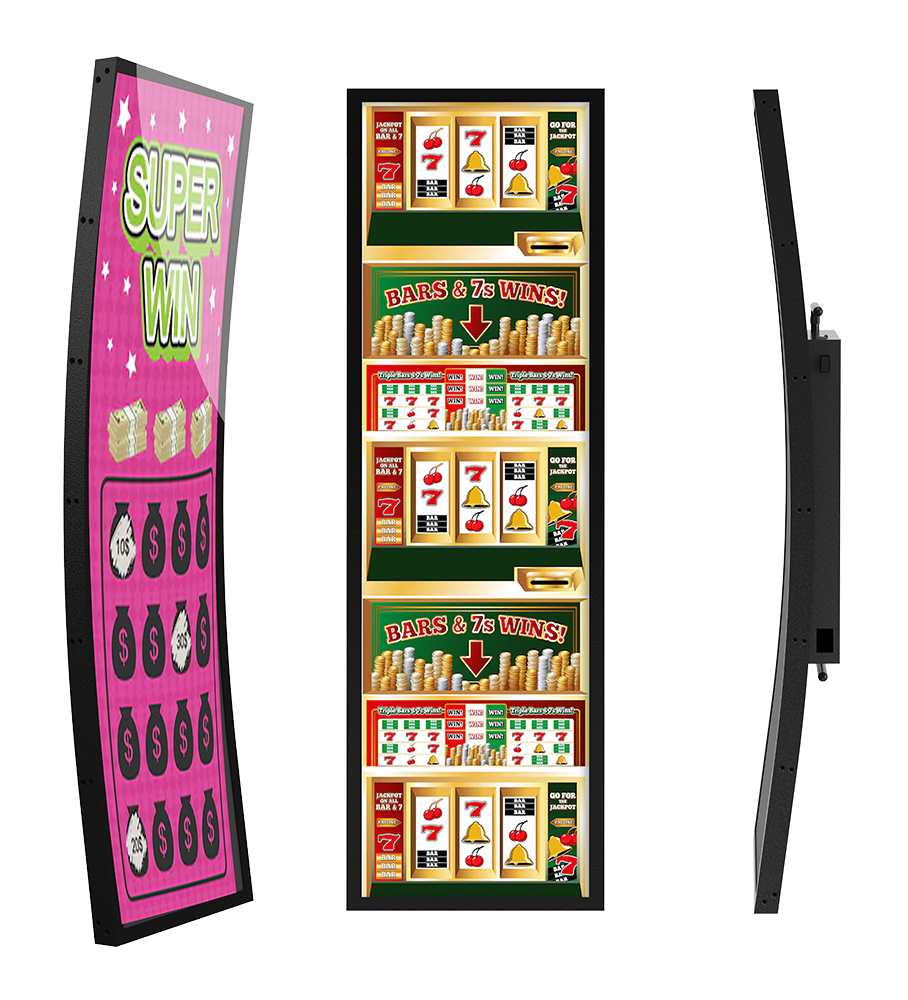

Fits The Golden Curvature Of Casinos And Car Interiors

This curved touch monitor offers golden curvatures of 1800R and 4000R, and can be perfectly embedded in either a slot machine or a car interior, creating a more comfortable environment.
Support Touchscreen

This stretched bar LCD has an optional touchscreen, users can easily perform various operations by touching the screen, and passengers can easily switch the screen.

Fast Response Screen Switching

This curved monitor has fast response capability, the screen switching is smooth and without delay, it can quickly display new content and the screen can remain clear and smooth without ghosting or blurring. This fast response capability is crucial for gambling machines.
Dynamic Content Display

It supports the display of various multimedia content formats, whether it is video, animation, or scrolling text, it can be displayed clearly and vividly, improving the efficiency and appeal of information transmission.

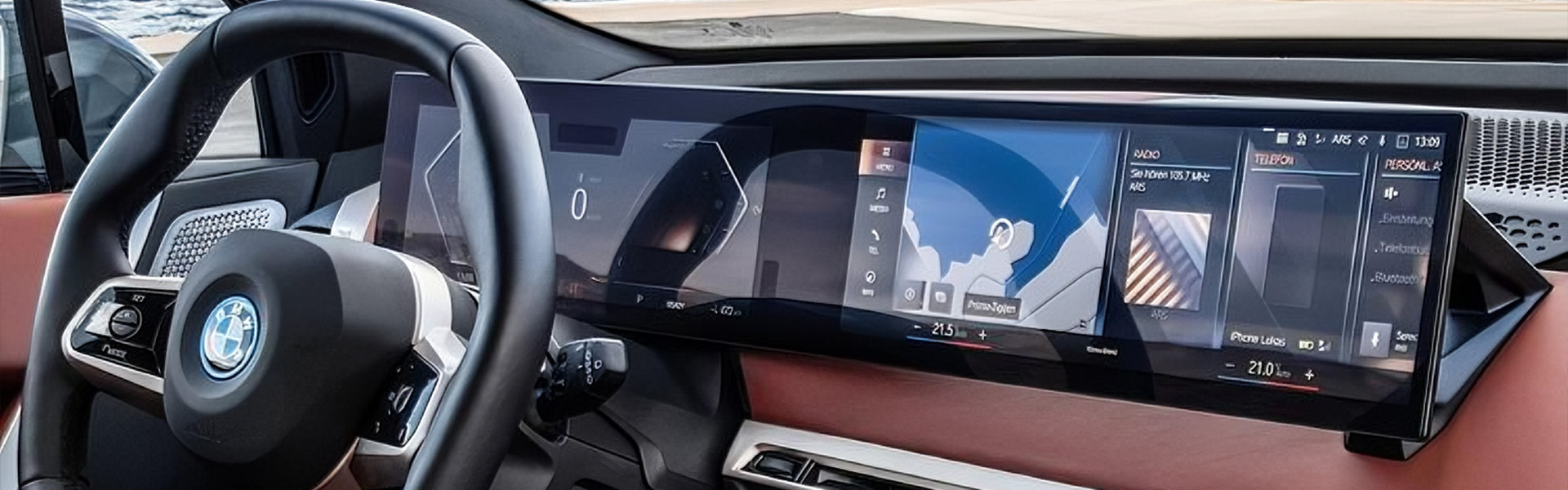

Curved Stretched LCD Display Fits Perfectly Into The Car Interior

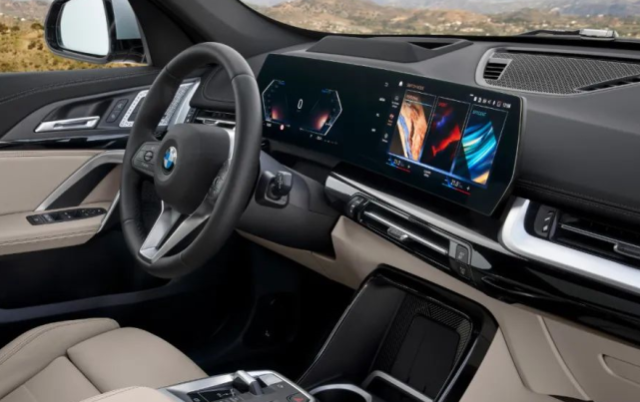

The curved stretched LCD display is perfect for the interior display of the car

Other Options

Full Specification

29 Inch
38 Inch

29"-G290AQY540-S01

Active Display Area

698.4（H)*196.43(V)mm
Overall Size

722.1(H)*226.63(V)*77.27(W)mm
Pixel Pitch (mm)

0.36375(H) x 0.36375(V)
Native Resolution

1920*540
Brightness

350 Nits
Curvature Design

1800R
Contrast Ratio

3000:1
Power Supply

DC 24V 5A
Power Consumption( Watt)

≤85W
Packing Carton Dimension

850x330x120mm
Net Weight

7KG
Gross Weight

9KG

38"-G380AQY412-S01

Active Display Area

941.18（H)*201.96(V)mm
Overall Size

1011.16(H)*244.15(V)*83.11(W)mm
Pixel Pitch (mm)

0.4901(H) *0.4901(V)
Native Resolution

1920*412
Brightness

350 Nits
Curvature Design

4000R
Contrast Ratio

1100:1
Power Supply

DC 24V 5A
Power Consumption( Watt)

≤85W
Packing Carton Dimension

1100x377x150mm
Net Weight

9KG
Gross Weight

11KG

Panel Features

Viewing Angle

178(H)/178(V)
Response Time

10ms
Frame Rate

60Hz
Life Time

>30000 Hrs

Functions

OS System

Android7.1/8.1/9.1/11 Optional
RAM+Flash

DDR 2GB+EMMC 8G

(Optional maximum 32G)
Video Format

RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.
Picture Format

JPG, JPEG, BMP, PNG, GIF
Audio Input/Output

Supports left and right channel output
Network Support

WIFI,4G

Horizontal/Vertical/Split Scree
Timed Play

Customized Play & Power On/Oﬀ
CMS

Support Web/Local Info.Publish
Touch

Optional

Input Ports（Customizable）

SD

*1 (UP to 64G)
Micro-USB

*3
HDMI OUT

*1
LAN/RJ45

*1

Environmental

Operating Temperature

0°C - 50°C/-20-70 Optional
Storage Temperature

—20°C - 50°C
Operating Humidity

10% - 80%
Storage Humidity

10% - 80%

Outer Frame

Material

Sheet metal/profile optional
Color

Customizable
Tempered Glass

Optional

Our Digital Screen Projects

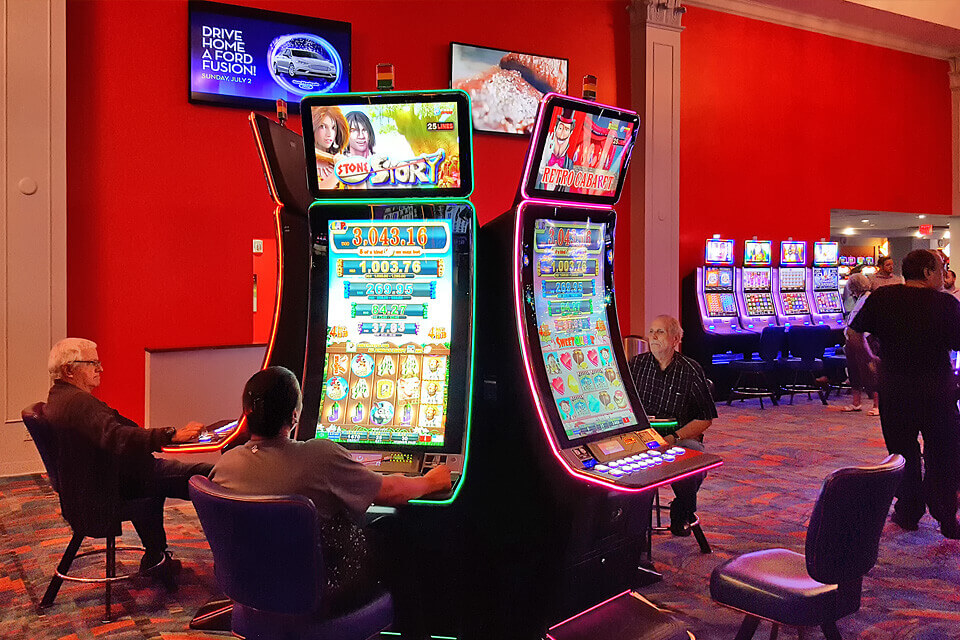

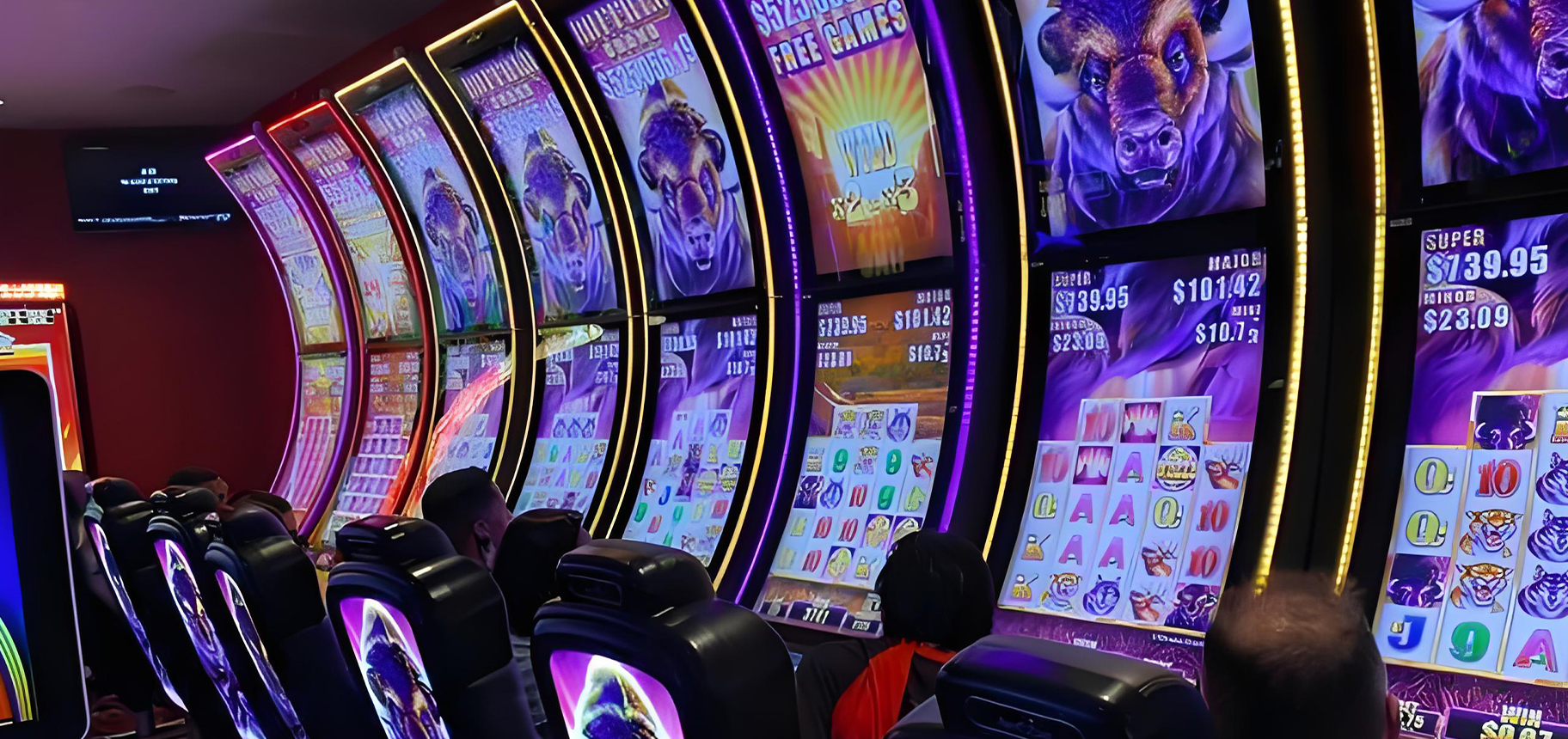

Curved Stretched Display Helps Upgrade Slot Machines In A Casino In Macau
