46" Video Wall Display

Use 46 Video Wal To Improve The Effect Of Conference And Business Presentation

Seamless Video Wall
24*7
Free Splicing
Ultra-narrow Splicing Seam
Pure Flat Design
Stable Image Without Flicker
Technical Service Support
1 Year Warranty

About Gomany's
46inch LCD Video Wall

In the field of digital display, display wall has become an ideal choice for conference rooms and commercial large-screen displays. Our spliced screen has a variety of seams to choose from. You can choose the most suitable solution according to your needs. This screen has high-definition resolution and 500nit brightness, which can be clearly seen in indoor environments. Whether it is used for video conferencing and presentations in conference rooms, or advertising displays and product promotions in shopping malls, our 46-inch digital wall display can significantly improve the display effect, attract the audience's attention, and enhance the efficiency of information communication.

Each screen is an independent unit and can also be spliced together.

Multiple Seams Available

Our monitors offer three seam options: 0.88mm, 1.7mm, and 3.5mm, to meet the needs of different scenarios. You can choose the screen combination with the corresponding seam according to different usage scenarios.
Wide Viewing Angle

Since the display screen needs to face viewers from all angles, we use a 178° viewing angle in the design to ensure that the audience can get a consistent display screen no matter which direction they are in.

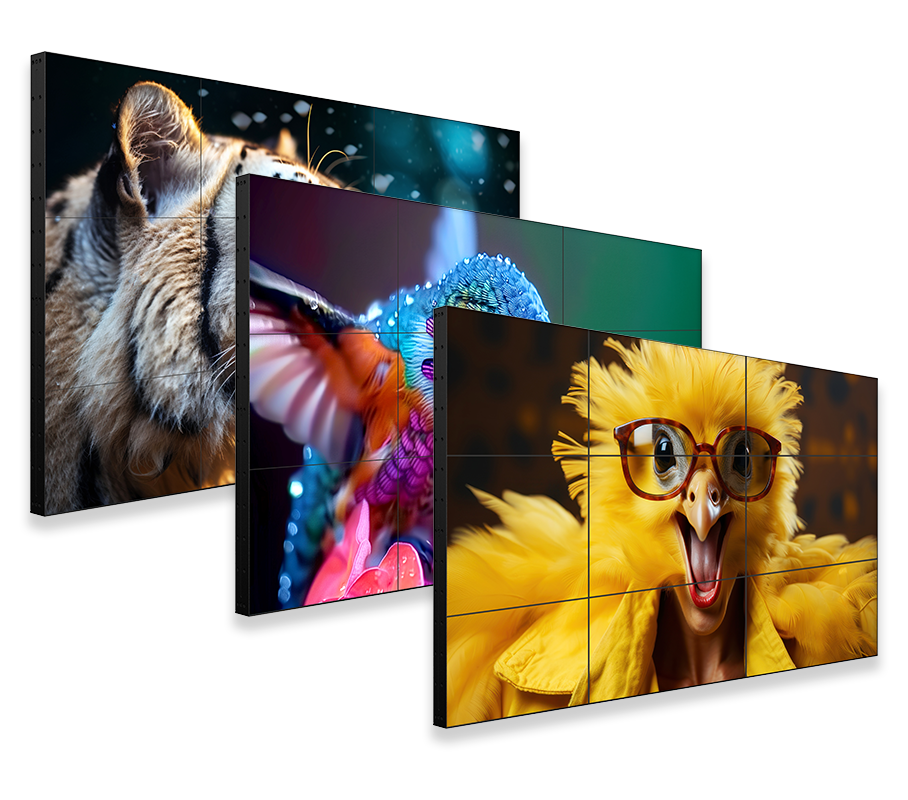

Freely Choose The Splicing Mode

The biggest feature of the video wall is its flexibility. It can support a variety of splicing modes, whether it is special-shaped splicing or regular splicing mode. Its combination shape depends on the needs and ideas of the user.

Rich Color Performance

Our screen uses a commercial-grade OC panel with high-definition resolution, which can ensure clear presentation of the picture whether it is displaying high-definition video or static images.
Easy Maintenance

Our video wall display is composed of LCD screens and adopts modular design. If there is any problem with the unit screen, it can be easily maintained and replaced.

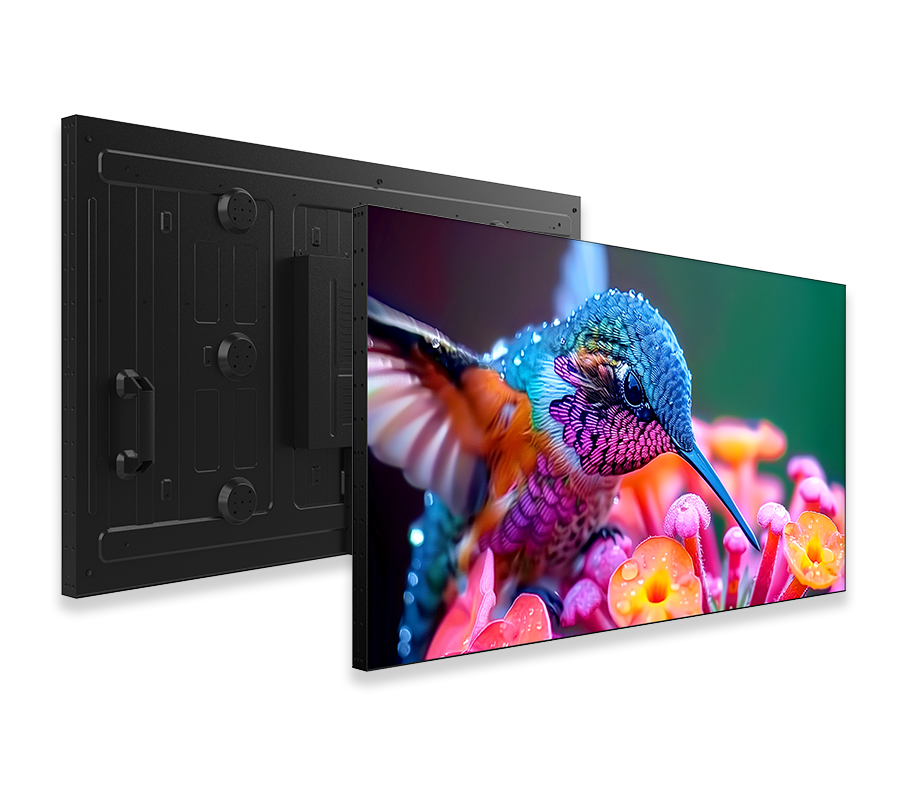

Pure Flat Design

This display device adopts a pure flat design. Flat design has no curvature, fits the wall better, has no deformation or distortion, enhances the visual effect, and is easier to clean and maintain.

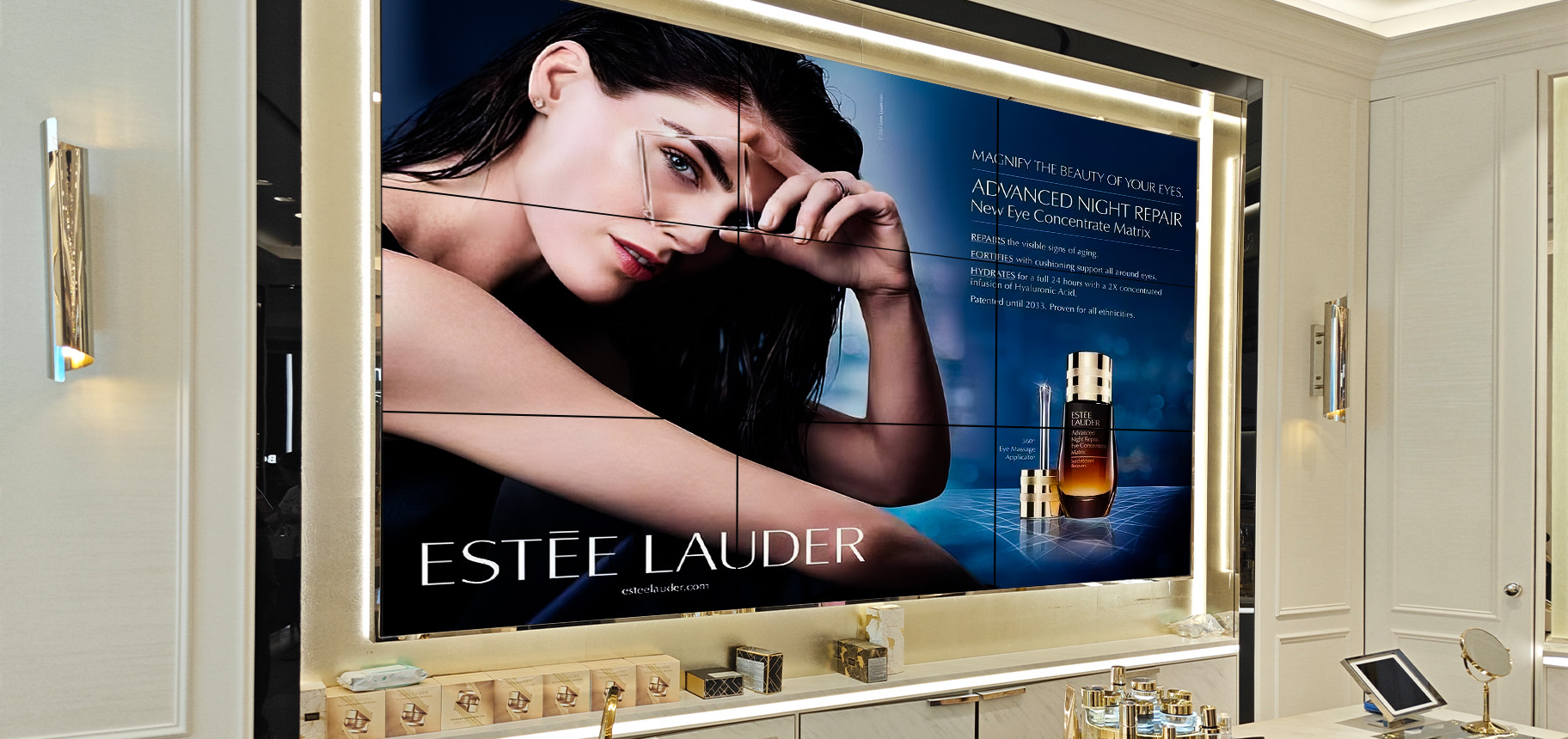

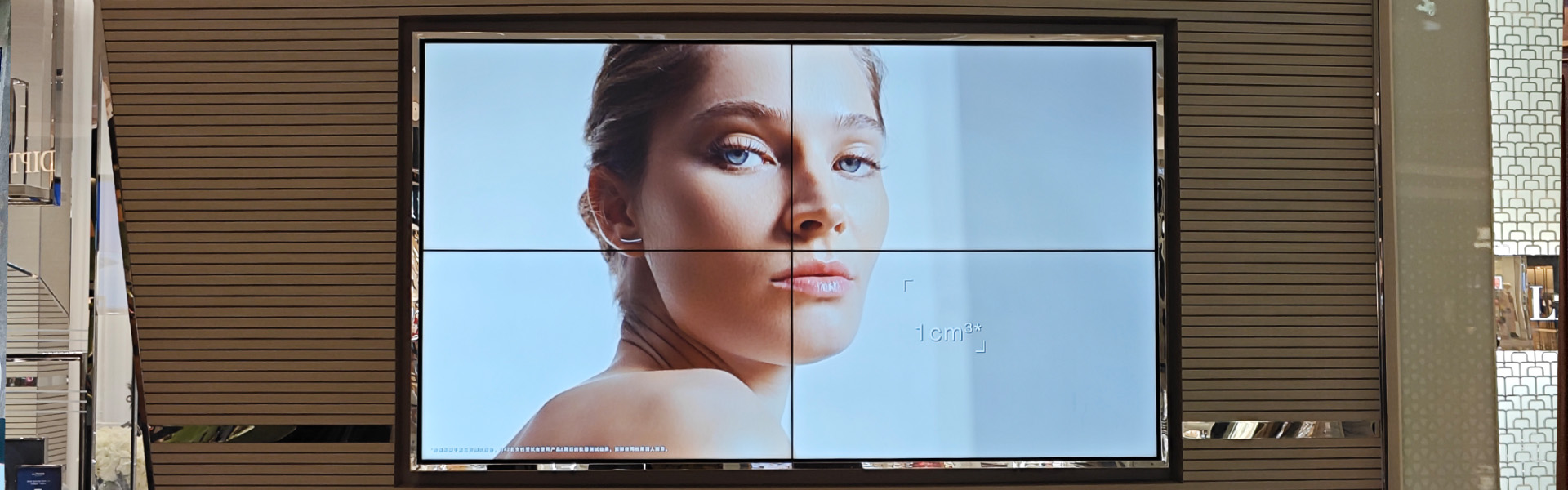

Optimize Your Business Environment With A 46 inch Video Wall

Use the splicing between screens to create an advantageous marketing environment

Other Options

Full Specification

0.88 Seam
1.7 Seam
3.5 Seam

0.88-G460AY088-D01

Overall Size

1019×573.6×140.2mm
Native Resolution

1920*1080
Brightness

500Nits
Nominal Bezel Size

0.88mm
Power Supply

AC 110-240V
Power Consumption

≤200W
Packing Carton Dimension

1222×776.6×224mm
Net Weight

17KG
Gross Weight

20KG

1.7-G460AY170-D01

Overall Size

1021.28×575.87×151.61mm
Native Resolution

1920*1080
Brightness

500Nits
Nominal Bezel Size

1.7mm
Power Supply

AC 110-240V
Power Consumption

≤200W
Packing Carton Dimension

1222×776.6×224mm
Net Weight

17KG
Gross Weight

20KG

3.5-G460AY350-D01

Overall Size

1022.28×576.87×152mm
Native Resolution

1920*1080
Brightness

500Nits
Nominal Bezel Size

3.5mm
Power Supply

AC 110-240V
Power Consumption

≤200W
Packing Carton Dimension

1222×776.6×224mm
Net Weight

17KG
Gross Weight

20KG

Panel Features

Viewing Angle

178(H)/178(V)
Response Time

8ms
Frame Rate

60Hz
Life Time

>60000 Hrs

Functions

Splicing Function

Split screen/full screen display,

Any combination of display
Video Format

RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.
Picture Format

JPG, JPEG, BMP, PNG, GIF
Temperature Control System

Automatic adjustment

Input Ports（Customizable）

VGA

*1
DVI

*1
HDMI IN

*1
USB

*1

Environmental

Operating Temperature

0°C - 50°C
Storage Temperature

—20°C - 70°C
Operating Humidity

10% - 90%
Storage Humidity

5% - 95%

Outer Frame

Material

Sheet metal
Color

Black

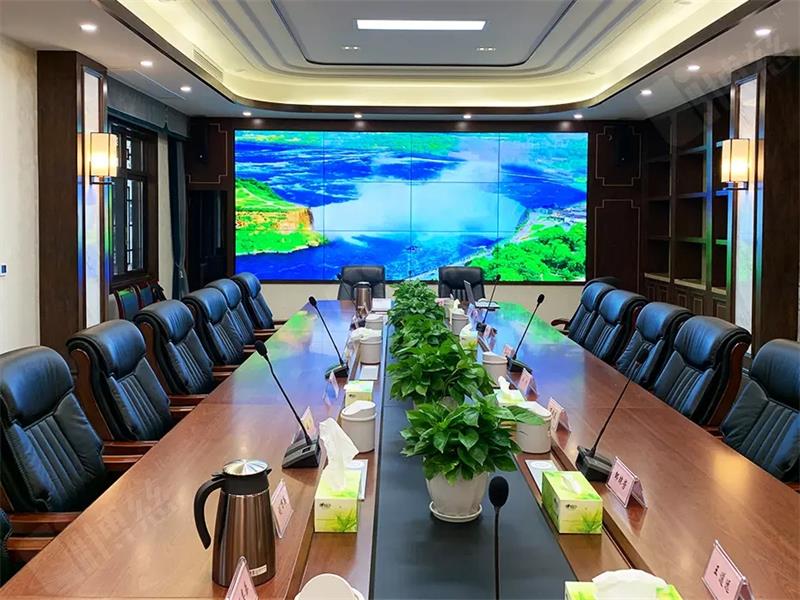

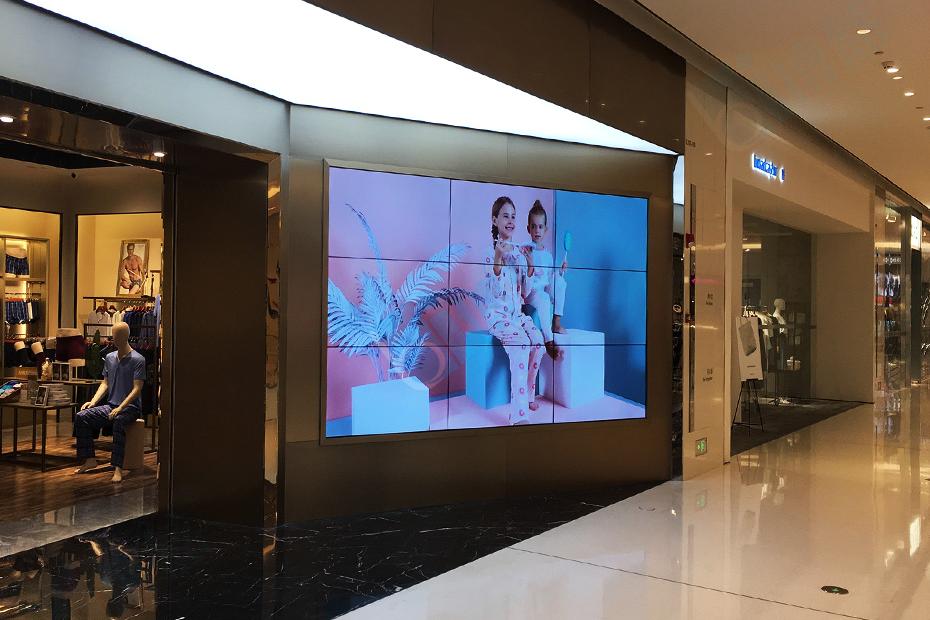

Our Digital Screen Projects
