Gomany's Double Sided Digital Signage

Window Display Reaches New Heights, 2 Sided Communication Is More Efficient.

Ceiling Installation
4k Resolution
Android Media Player
Integrated Speakers
Cloud Update
Dual-sided Display
Split-screen Playback
Echnical Service Support
Warranty Service

About Gomany's
Double Sided Digital Signage

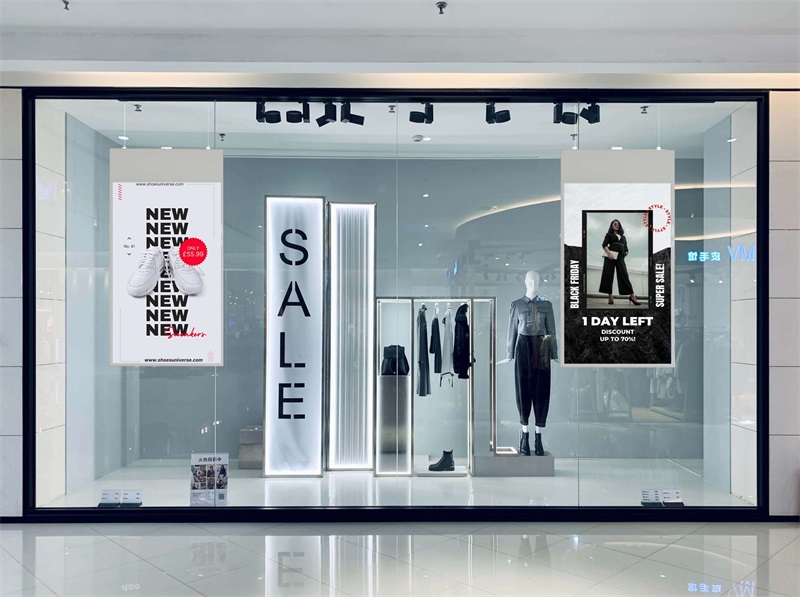

This double-sided window facing display is an ideal choice for modern commercial display. It is specially designed for windows in supermarkets, shopping malls, restaurants and other scenes. Through the double-sided display technology, targeted marketing can be carried out both inside and outside to maximize the information dissemination effect. The hanging design improves the space utilization of the entire scene and can attract customers' attention. In terms of timeliness and accuracy, it has the ability to update in real time, which can meet the dynamic needs of modern commercial marketing methods. This display device provides enterprises with a strong visual impact.

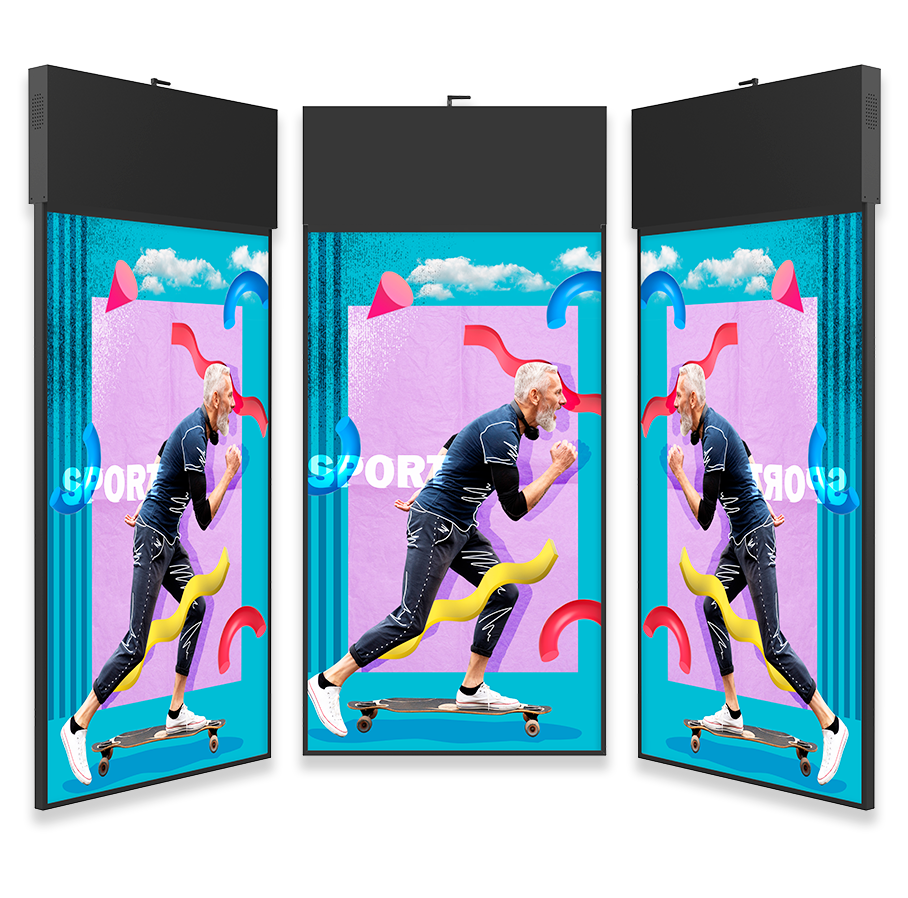

Rendering of Gomany's double sided digital signage displays.

Double-sided Display, Supporting Different Display Modes

The digital window advertising display adopts advanced double-sided display technology to ensure that the content can be clearly seen from multiple directions. The two screens can display the same content or different information independently to meet diverse display needs. This flexibility allows merchants to convey multiple information at the same time, attract customers from different directions, and ensure the efficiency of information dissemination.
Integrated Ceiling Installation, High Space Utilization

As a commercial display device, digital shelf talker display has the ability to operate all day, which is very important for 24-hour business occasions. Whether it is day or night, it can ensure that your product information is always visible and attractive, thereby maintaining customer satisfaction.
LED Backlight Technology, Lower Energy Consumption

This double sided screen uses LED backlight technology, which can effectively reduce energy loss. Compared with traditional backlight technology, LED backlight technology improves energy utilization by more than 30%, which is very suitable for long-term operation in commercial environments.

Plug And Play, Real-time Update

This double sided monitor has a built-in Android media player. You can update the content directly through the USB flash drive. After inserting the USB flash drive storing the content into the display, the USB flash drive will copy the file to the display. When the USB flash drive is removed, the screen will start to play the content in a loop. This method allows merchants to quickly respond to market changes and adjust display strategies in a timely manner.
Support Customized Needs

Our digital signage supports customized services. It can provide customized services for different needs, including interface, size, appearance and function. For example, the size of the signage can be customized according to the size of the window to ensure the perfect integration of the device and the environment. You can also choose different display modes and content management methods. We will have professional engineers to provide you with solutions.

Application Of Double Sided Digital Signage

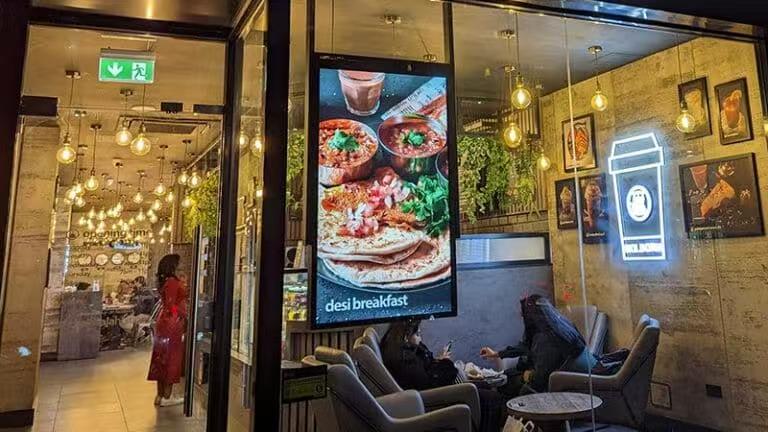

Deploying double sided screens on the windows of a coffee shop can achieve internal marketing and attract external customers.

Other Options

Full Specification

36.3 Inch

36.3”-G363DVN60-S01

Active Display Area

452.35（L)*803.52(H)
Overall Size

473.95（L)*1012.58(H)*40(W)
Pixel Pitch (mm)

0.372*0.372
Native Resolution

1216*2160
Brightness

300Nits
Contrast Ratio

1200:1
Power Supply

DC 24V 5A
Power Consumption( Watt)

≤90W
Packing Carton Dimension

600*1150*110mm
Net Weight

10.5KG
Gross Weight

14KG

Panel Features

Viewing Angle

178(H)/178(V)
Response Time

10ms
Frame Rate

60Hz
Life Time

>30000 Hrs

Functions

OS System

Android7.1/8.1/9.1/11 Optional
RAM+Flash

DDR 2GB+EMMC 8G

(Optional maximum 32G)
Video Format

RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.
Picture Format

JPG, JPEG, BMP, PNG, GIF
Audio Input/Output

Supports left and right channel output
Network Support

WIFI,4G

Horizontal/Vertical/Split Scree
Timed Play

Customized Play & Power On/Oﬀ
CMS

Support Web/Local Info.Publish
Touch

Optional

Input Ports（Customizable）

SD

*1 (UP to 64G)
Micro-USB

*3
HDMI OUT

*1
LAN/RJ45

*1

Environmental

Operating Temperature

0°C - 50°C/-20-70 Optional
Storage Temperature

—20°C - 50°C
Operating Humidity

10% - 80%
Storage Humidity

10% - 80%

Outer Frame

Material

Sheet metal/profile optional
Color

Customizable
Tempered Glass

Optional

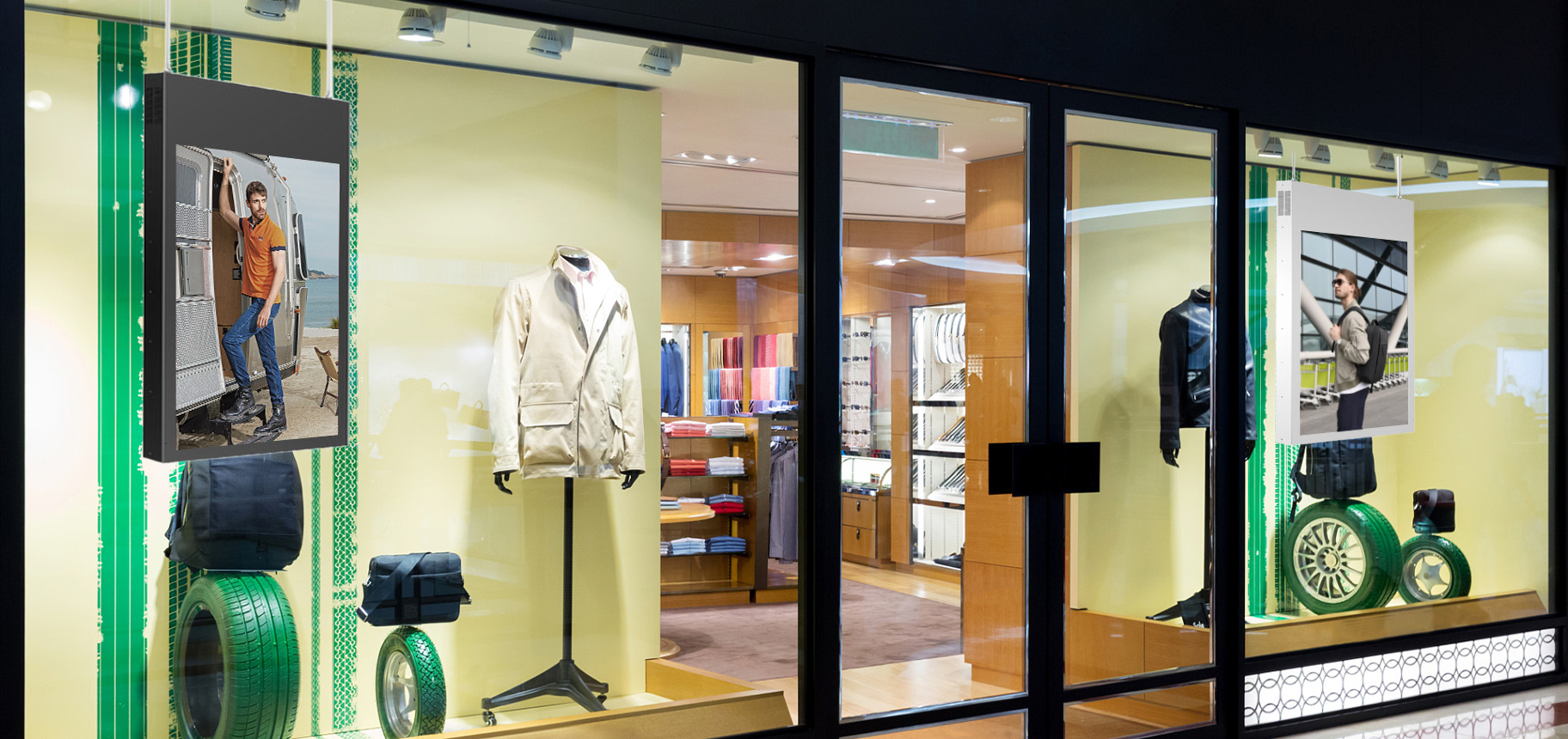

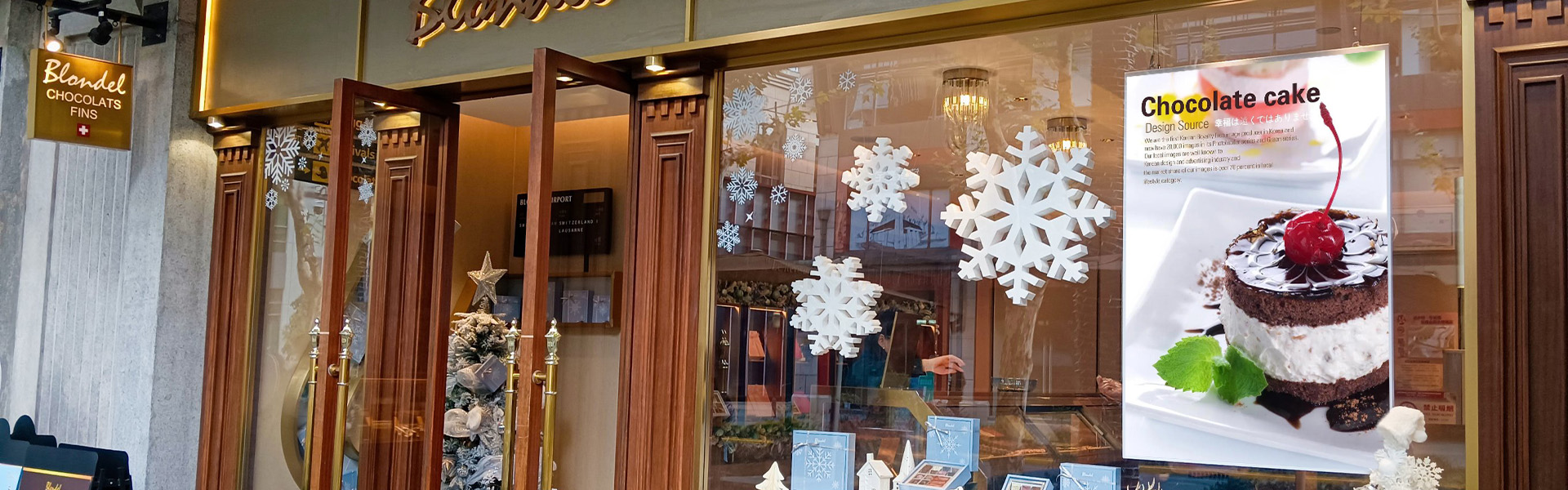

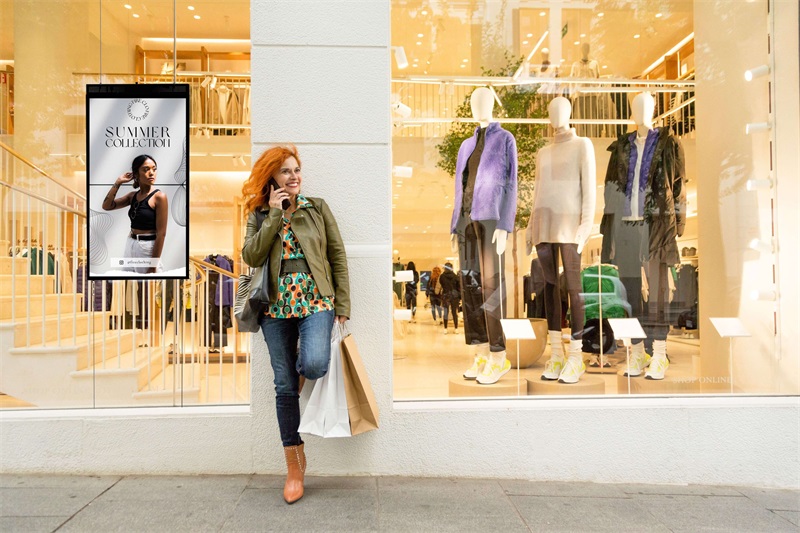

Our Digital Screen Projects

Gallery

Relevant Documents

Specification

2D Drawings

36.3" Double Sided Digital Signage Parameter

36.3" Double Sided Digital Signage 2D Images

Why Choose Gomany

Quality Assurance

Quality is built into every step of our manufacturing process, with dedicated quality control specialists conducting rigorous inspections at each stage to ensure zero defects. This meticulous approach guarantees customers receive LCD screens of uncompromising quality and reliability.
Mature Experience

With extensive expertise in the commercial display sector, Gomany has successfully implemented large-scale digital signage deployments across diverse industries including retail, transportation, industrial applications, and smart city infrastructure. Our track record spans over 400,000 display installations since founding, demonstrating our capacity to deliver robust, industry-tailored visual communication solutions.
Project Evaluation

Our expert consulting team provides comprehensive project evaluation, delivering tailored optimization recommendations and actionable solutions - saving you valuable time and resources while maximizing your project's potential.
Delivery Guarantee

We guarantee reliable product delivery through our robust manufacturing system, currently maintaining a stable monthly output of 8,000+ commercial LCD digital display products Our precision-planned production scheduling ensures on-time, accurate deliveries to meet your project timelines without compromise.
Lifetime Technical Support

Upon delivery, you'll receive complete operational guidance for your equipment. Should any technical issues arise, our engineering team provides immediate remote assistance to ensure rapid resolution - minimizing downtime and maximizing your operational efficiency.
Support Customization

We provide a full range of customization services. You can add logos, choose colors, materials, and even customize functions to the products according to your needs. As long as you have requirements, we will try our best to tailor the most suitable solution for you.
3D Rendering Service

Our advanced 3D visualization solutions enable you to preview photorealistic display simulations before production, ensuring every detail meets your exact specifications. This empowers data-driven decision making and optimized planning for your projects.
Product Testing

Each LCD digital display device unit undergoes stringent pre-shipment testing, including environmental , mechanical vibration, and waterproof evaluations. This comprehensive validation process ensures stable operation in all conditions, delivering truly maintenance-free performance for your peace of mind.
Support Warranty

All display products come with 1-3 years of comprehensive warranty, with duration determined by your selected solution. Should you require extended coverage, our support team will customize an optimal protection plan tailored to your specific needs.
