28.6/37/43/48.5/58"
Outdoor Stretched Digital Signage
(Vertical/Hanging/Wall-Mounted) Triple Installation Mode, Perfect For Various Commercial Scenarios

Smart Display Terminal That Redefines Outdoor Advertising

  • 1500nit Brightness
  • Waterproof
  • Automatic Temperature Adjustment
  • Automatic Brightness Adjustment
  • Support 24-hour Display
  • Vertical Installation
  • Anti-glare Design
  • Wall Installation
  • Hanging Installation
  • 4k
  • Lifetime Technical Service Support
  • Quality Assurance
Why Deploy Streatched
Bar LCD Display Outdoors?
Traditional advertising forms cannot achieve good display effects in high-brightness environments in outdoor environments, and it is not convenient to update content. With the advancement of display technology, more possibilities have been brought to the field of outdoor display. Through this display device, not only the display effect is optimized, but also dynamic display content can be realized, and updating becomes easier. Whether it is used in the construction of smart cities or in catering, retail and other industries, its display effect can be guaranteed.

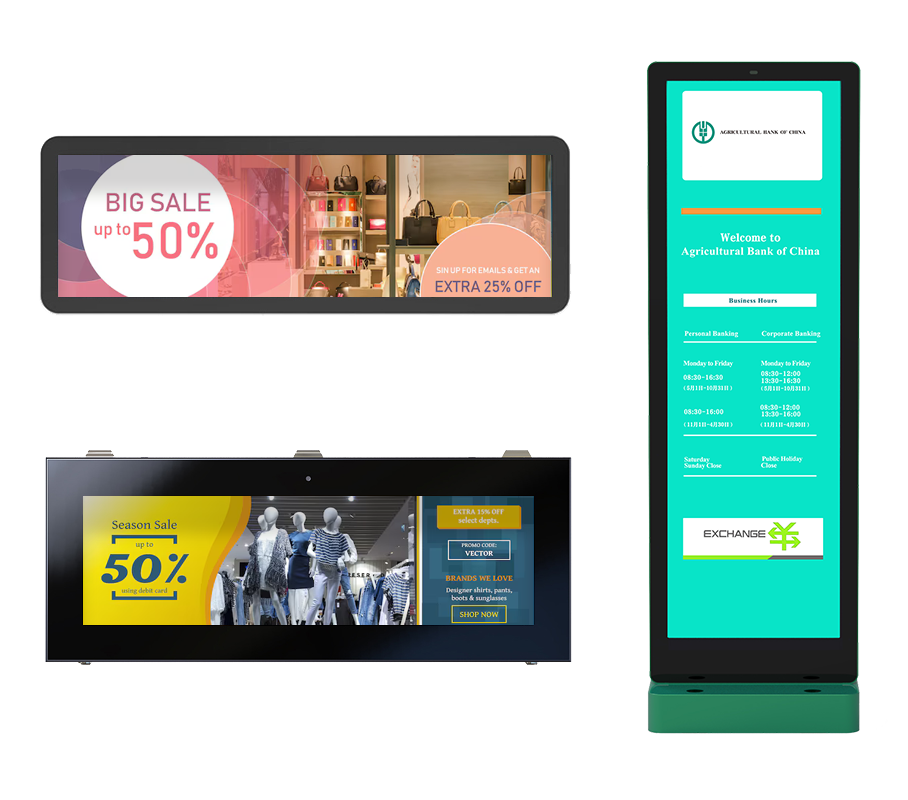

3 different installation types of outdoor stretched display
  • Dust And Waterproof Capability

    This outdoor LCD display has excellent dust and water resistance, which can effectively prevent dust and moisture from invading the interior of the device. When facing bad weather, the screen can operate stably to ensure that your content is not affected. This feature allows the screen to maintain good working condition in various outdoor environments, extending the service life of the device and saving you the cost of repair and replacement.

  • Temperature Regulation Capability

    Outdoor temperature cannot be controlled and is full of various possibilities. This streatched LCD display has the ability to regulate temperature. Through efficient heat dissipation and heat preservation design, the device can maintain a stable working state in different temperature environments, providing continuous and stable protection for your outdoor display at different temperatures.

  • Adapt To Most Spaces

    When designing this commercial digital device, we took into account most usage scenarios. There are three installation methods: vertical, hanging, and wall-mounted. We provide customized solutions for different scenarios to meet your display needs in various spaces.

  • Brightness Adjustment Capability

    As a digital signage used outdoors, we have considered the situation when it faces different light conditions. The display brightness of the device can be easily adjusted according to the surrounding light conditions, ensuring smooth transmission of information whether it is day or night.

  • Easier To Update

    If you want to adjust the content of the advertisement, you don’t need to be on site. You can easily change the screen content through the remote system with simple operations. Whether it is changing advertisements, issuing notifications or updating guidance information, it can be done quickly, which greatly improves work efficiency and allows you to seize every display opportunity in time.

Transform The Commercial Environment With Outdoor Bar LCD Display

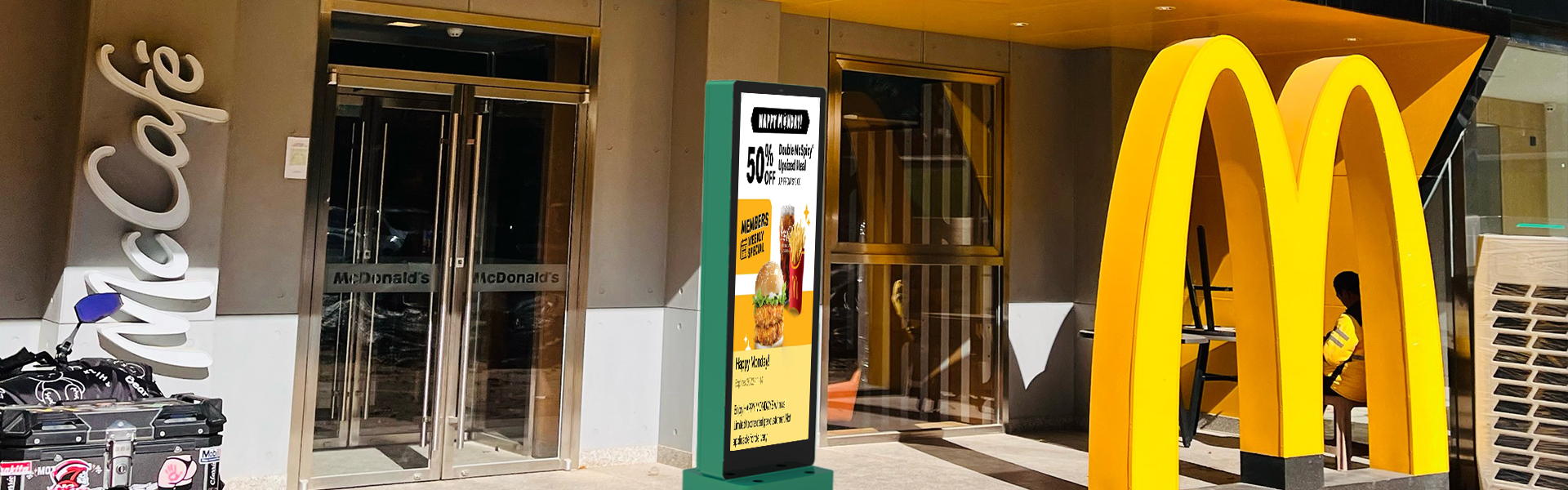

Application of outdoor bar digital display in catering industry
Other Options
Specification
Full Specification
  • 28.6 Inch
  • 37 Inch
  • 43 Inch
  • 48.5 Inch
  • 58 Inch
28.6"-G286AOY540-D01
  • Active Display Area

    698.4(L)*196.43(V)mm

  • Overall Size

    730(L)*227.5(V)*85(W)mm

  • Pixel Pitch (mm)

    0.36375*0.36375

  • Native Resolution

    1920*540

  • Brightness

    2000 Nits

  • Contrast Ratio

    4000:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤120W

  • Packing Carton Dimension

    850x330x150mm

  • Net Weight

    17KG

  • Gross Weight

    19KG

37"-G370AOY540-D01
  • Active Display Area

    904.32(L)*254.34(V)mm

  • Overall Size

    936(L)*287(V)*85(W)mm

  • Pixel Pitch (mm)

    0.471*0.471

  • Native Resolution

    1920*540

  • Brightness

    2000 Nits

  • Contrast Ratio

    5000:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤130W

  • Packing Carton Dimension

    1050x377x150mm

  • Net Weight

    17.5KG

  • Gross Weight

    18KG

43"-G430AOY720-D01
  • Active Display Area

    1073.78(L)*201.3(V)mm

  • Overall Size

    1105(L)*235(V)*85(W)mm

  • Pixel Pitch (mm)

    0.2796*0.2796

  • Native Resolution

    3840*720

  • Brightness

    2000 Nits

  • Contrast Ratio

    5000:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤140W

  • Packing Carton Dimension

    1283x330x150mm

  • Net Weight

    20KG

  • Gross Weight

    22KG

48.5"-G485AOY720-D01
  • Active Display Area

    1209.6(L)*226.8(V)mm

  • Overall Size

    1240(L)*260(V)*85(W)mm

  • Pixel Pitch (mm)

    0.630*0.630

  • Native Resolution

    1920*360

  • Brightness

    2000 Nits

  • Contrast Ratio

    1200:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤145W

  • Packing Carton Dimension

    1450x400x150mm

  • Net Weight

    30KG

  • Gross Weight

    35KG

58"-G580AOY720-D01
  • Active Display Area

    1428.48(L)*267.84(V)mm

  • Overall Size

    1460(L)*303(V)*85(W)mm

  • Pixel Pitch (mm)

    0.372(H) x 0.372(V)

  • Native Resolution

    3840*720

  • Brightness

    2000 Nits

  • Contrast Ratio

    1200:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤150W

  • Packing Carton Dimension

    1640x450x150mm

  • Net Weight

    40KG

  • Gross Weight

    45KG

Panel Features
  • Viewing Angle

    178(H)/178(V)

  • Response Time

    10ms

  • Frame Rate

    60Hz

  • Life Time

    >30000 Hrs

Functions
  • OS System

    Android7.1/8.1/9.1/11 Optional

  • RAM+Flash

    DDR 2GB+EMMC 8G

    (Optional maximum 32G)

  • Video Format

    RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.

  • Picture Format

    JPG, JPEG, BMP, PNG, GIF

  • Audio Input/Output

    Supports left and right channel output

  • Network Support

    WIFI,4G

  • Picture

    Horizontal/Vertical/Split Scree

  • Timed Play

    Customized Play & Power On/Off

  • CMS

    Support Web/Local Info.Publish

  • Touch

    Optional

Input Ports(Customizable)
  • SD

    *1 (UP to 64G)

  • Micro-USB

    *3

  • HDMI OUT

    *1

  • LAN/RJ45

    *1

Environmental
  • Operating Temperature

    0°C - 50°C/-20-70 Optional

  • Storage Temperature

    —20°C - 50°C

  • Operating Humidity

    10% - 80%

  • Storage Humidity

    10% - 80%

Outer Frame
  • Material

    Sheet metal/profile optional

  • Color

    Customizable

  • Tempered Glass

    Optional

Cases

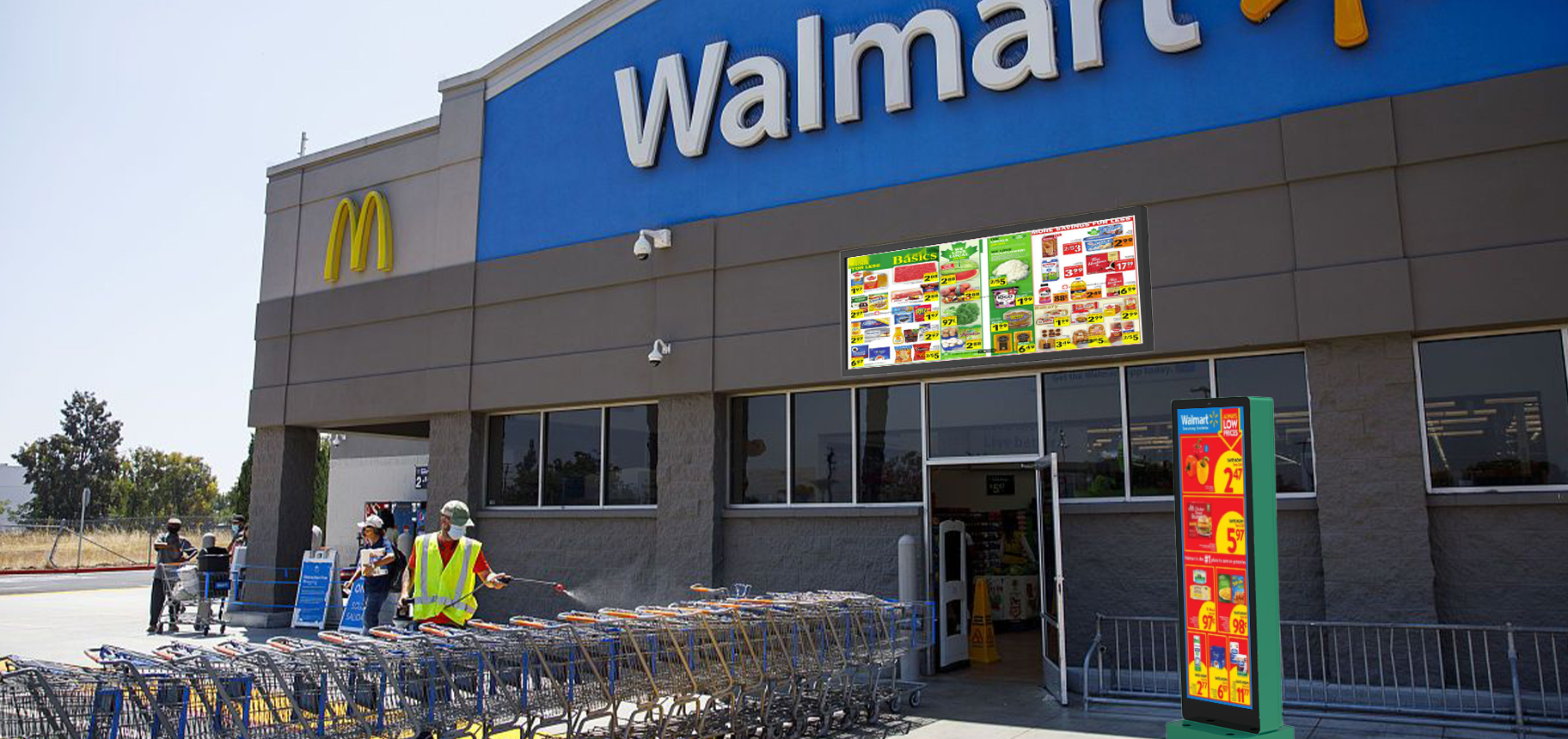

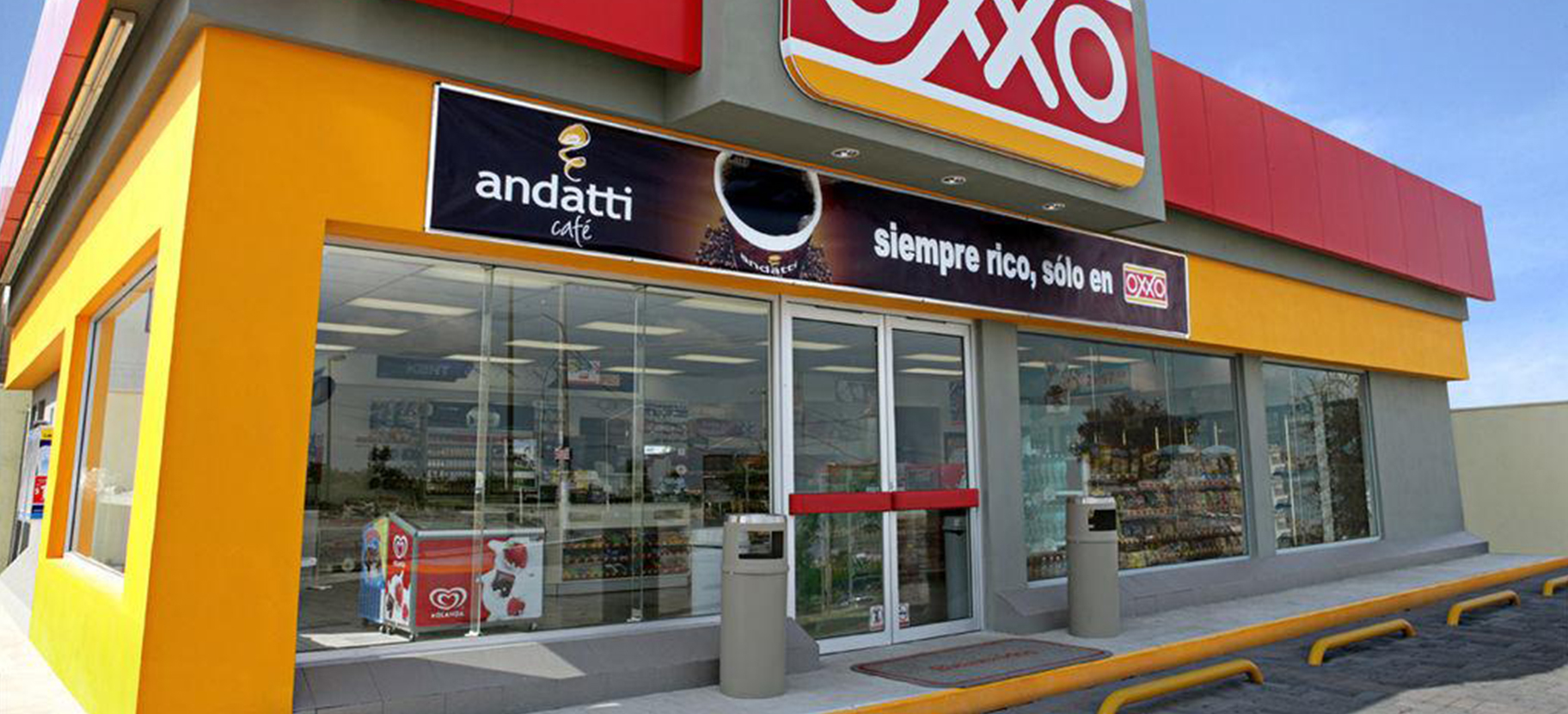

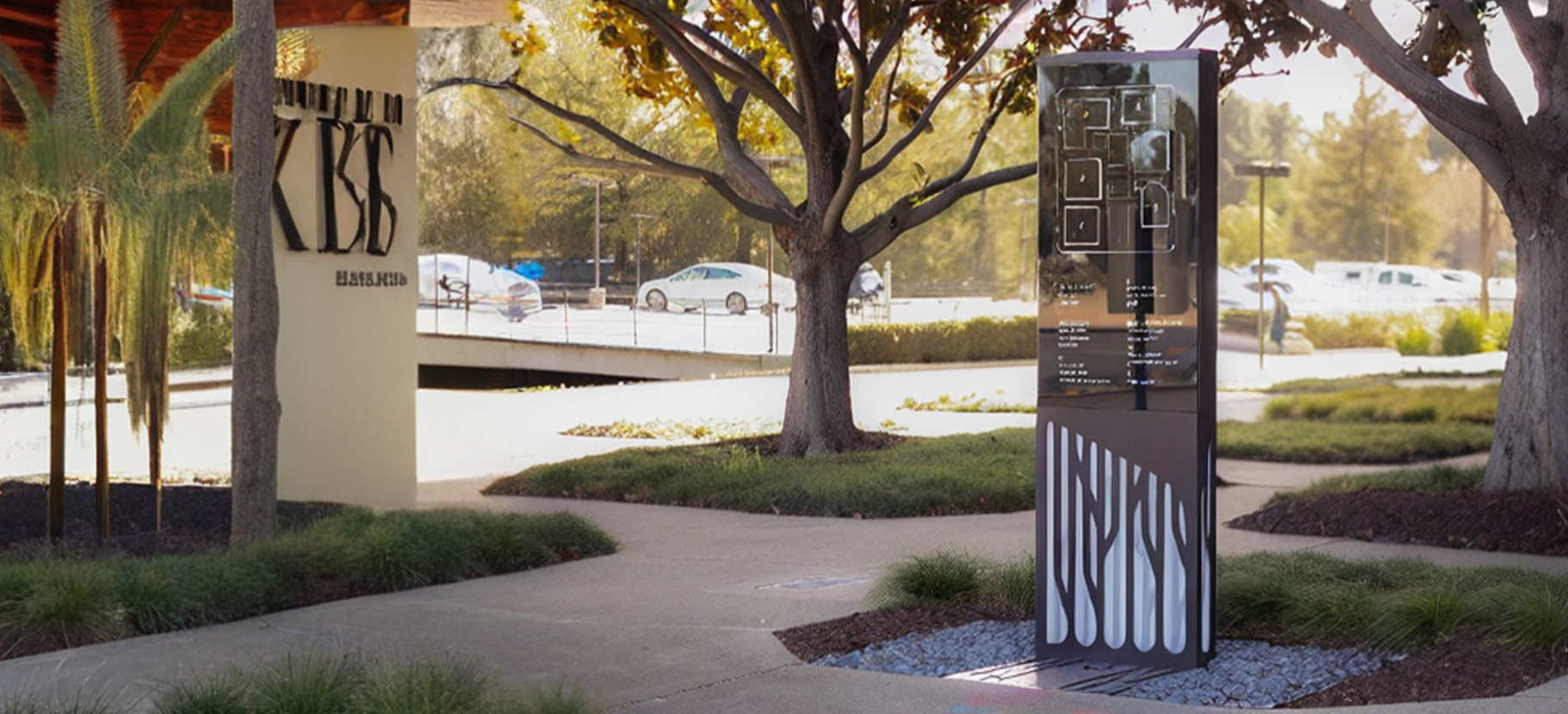

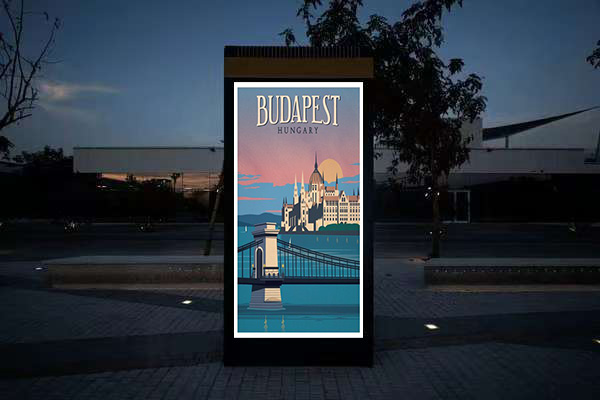

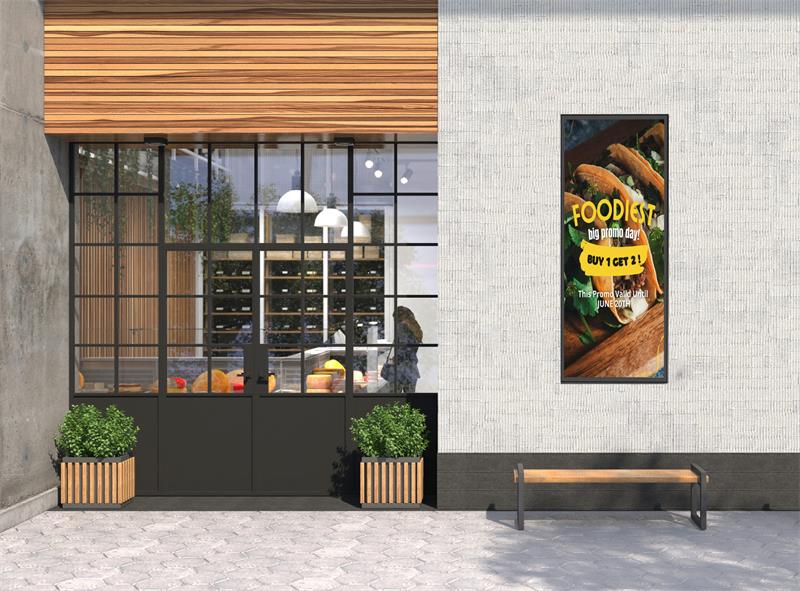

Our Digital Screen Projects
Gallery
Gallery
Why Choose Gomany
  • Quality Assurance
    Quality is built into every step of our manufacturing process, with dedicated quality control specialists conducting rigorous inspections at each stage to ensure zero defects. This meticulous approach guarantees customers receive LCD screens of uncompromising quality and reliability.
  • Mature Experience
    With extensive expertise in the commercial display sector, Gomany has successfully implemented large-scale digital signage deployments across diverse industries including retail, transportation, industrial applications, and smart city infrastructure. Our track record spans over 400,000 display installations since founding, demonstrating our capacity to deliver robust, industry-tailored visual communication solutions.
  • Project Evaluation

    Our expert consulting team provides comprehensive project evaluation, delivering tailored optimization recommendations and actionable solutions - saving you valuable time and resources while maximizing your project's potential.


  • Delivery Guarantee
    We guarantee reliable product delivery through our robust manufacturing system, currently maintaining a stable monthly output of 8,000+ commercial LCD digital display products Our precision-planned production scheduling ensures on-time, accurate deliveries to meet your project timelines without compromise.
  • Lifetime Technical Support
    Upon delivery, you'll receive complete operational guidance for your equipment. Should any technical issues arise, our engineering team provides immediate remote assistance to ensure rapid resolution - minimizing downtime and maximizing your operational efficiency.
  • Support Customization
    We provide a full range of customization services. You can add logos, choose colors, materials, and even customize functions to the products according to your needs. As long as you have requirements, we will try our best to tailor the most suitable solution for you.
  • 3D Rendering Service
    Our advanced 3D visualization solutions enable you to preview photorealistic display simulations before production, ensuring every detail meets your exact specifications. This empowers data-driven decision making and optimized planning for your projects.
  • Product Testing
    Each LCD digital display device unit undergoes stringent pre-shipment testing, including environmental , mechanical vibration, and waterproof evaluations. This comprehensive validation process ensures stable operation in all conditions, delivering truly maintenance-free performance for your peace of mind.
  • Support Warranty
    All display products come with 1-3 years of comprehensive warranty, with duration determined by your selected solution. Should you require extended coverage, our support team will customize an optimal protection plan tailored to your specific needs.
