Gomany's Square LCD Digital Photo Frames

Decorate Your Space With A 1:1 Ratio LCD Screen

1:1 Aspect Ratio
Touch Screen Optional
Multimedia Format
HD Resolution
Plug And Play
Android Operating System
Warranty Support
Quality Assurance
Lifetime Technical Support

What Is
Square Digital Picture Frame

Square digital photoframe is an alternative digital display device. It breaks the traditional 16:9 display ratio and adopts an innovative 1:1 screen ratio, which has higher novelty and artistry. It has a touch option, and users can achieve a smooth operation experience by simply touching the screen. Whether it is for exhibition display, retail promotion, corporate publicity, or family album sharing, it can present a balanced and delicate picture effect and improve the efficiency of information transmission.

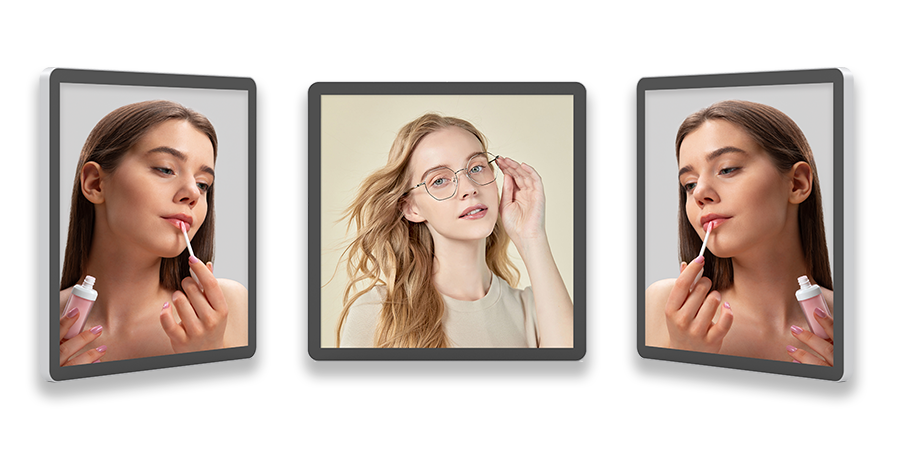

Front view of Square LCD Digital Photo Frames

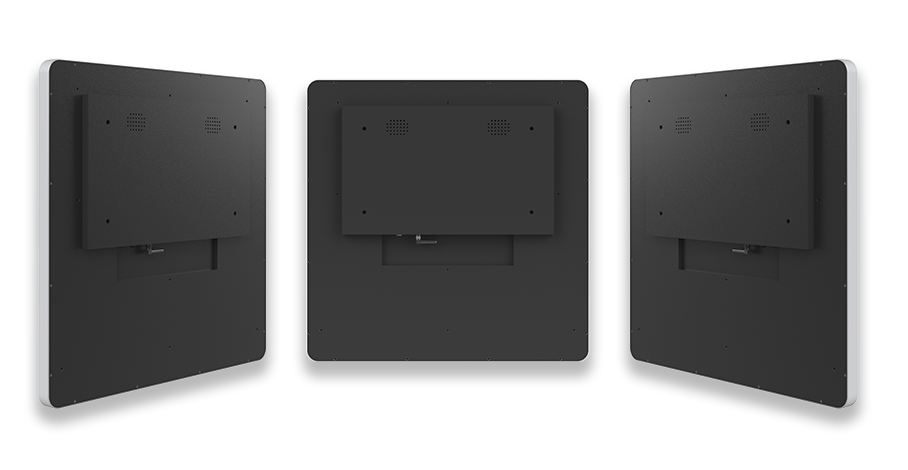

Back view of Square LCD Digital Photo Frames

Unique Display Ratio

This digital picture frame adopts a square display ratio, which avoids the loss of picture caused by traditional horizontal and vertical screen cropping, and can take into account both practicality and aesthetics, ensuring the attractiveness of the picture.
Touch Support

This video photo frame has touch technology support, with precise touch experience, which can improve interaction with users, such as sliding to browse pictures, clicking to play videos, etc. The screen surface has been specially treated to be scratch-resistant and wear-resistant, ensuring good touch performance even after long-term use.

Plug And Play

This digital signage has excellent compatibility and convenience. It is equipped with a variety of common interfaces, such as USB, HDMI, etc., and supports a variety of devices. The photo frame can automatically identify and read the content and quickly enter the playback state, making the operation simple and efficient.
Clear And Exquisite Images

This LCD display retains a high resolution of 1880*1880, which can clearly present every detail, and the switching effect is smooth and natural. Whether it is product promotion in commercial display or photo display in home use, it can bring the audience the ultimate visual enjoyment.

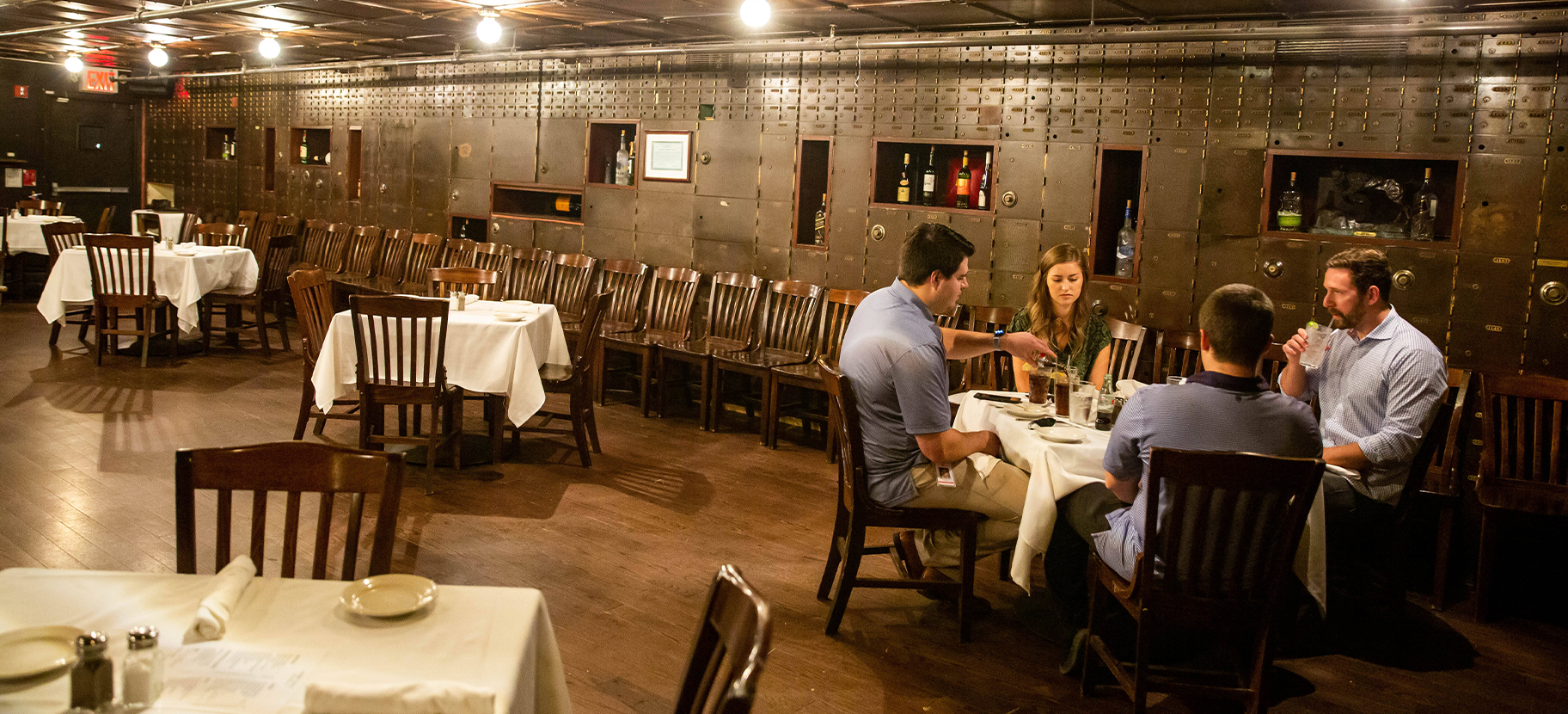

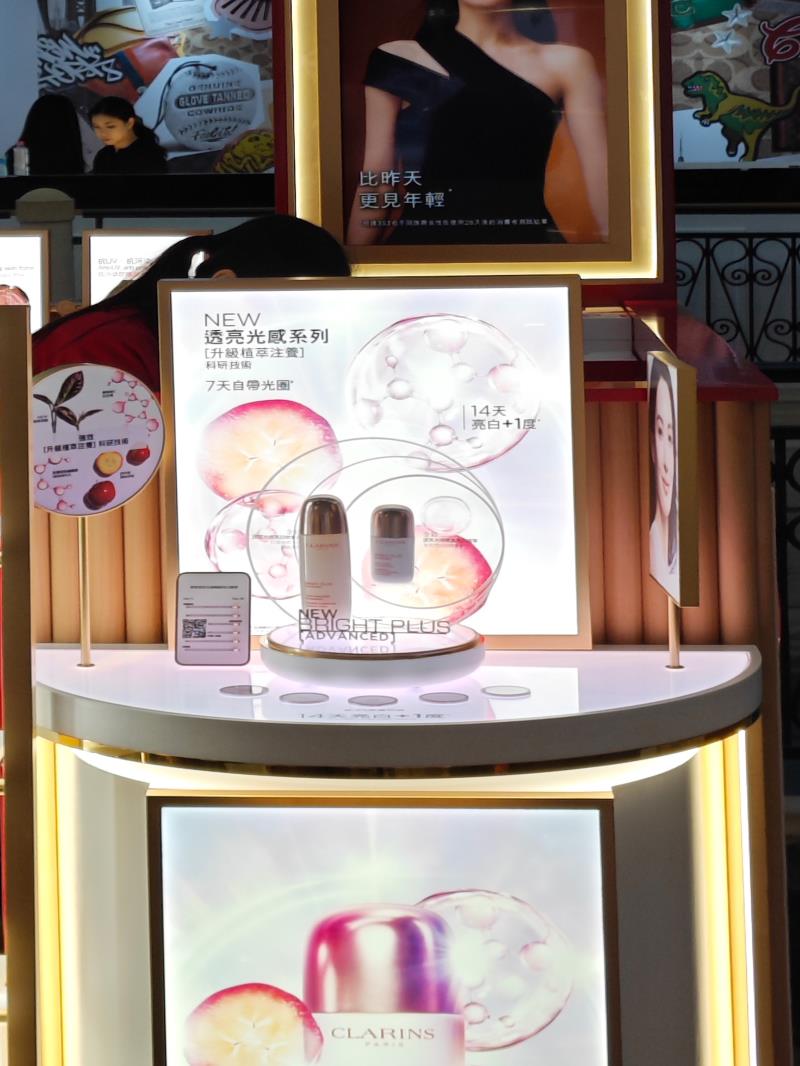

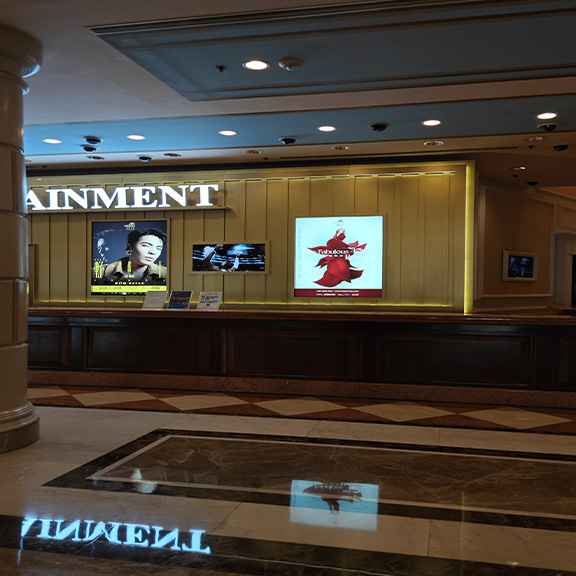

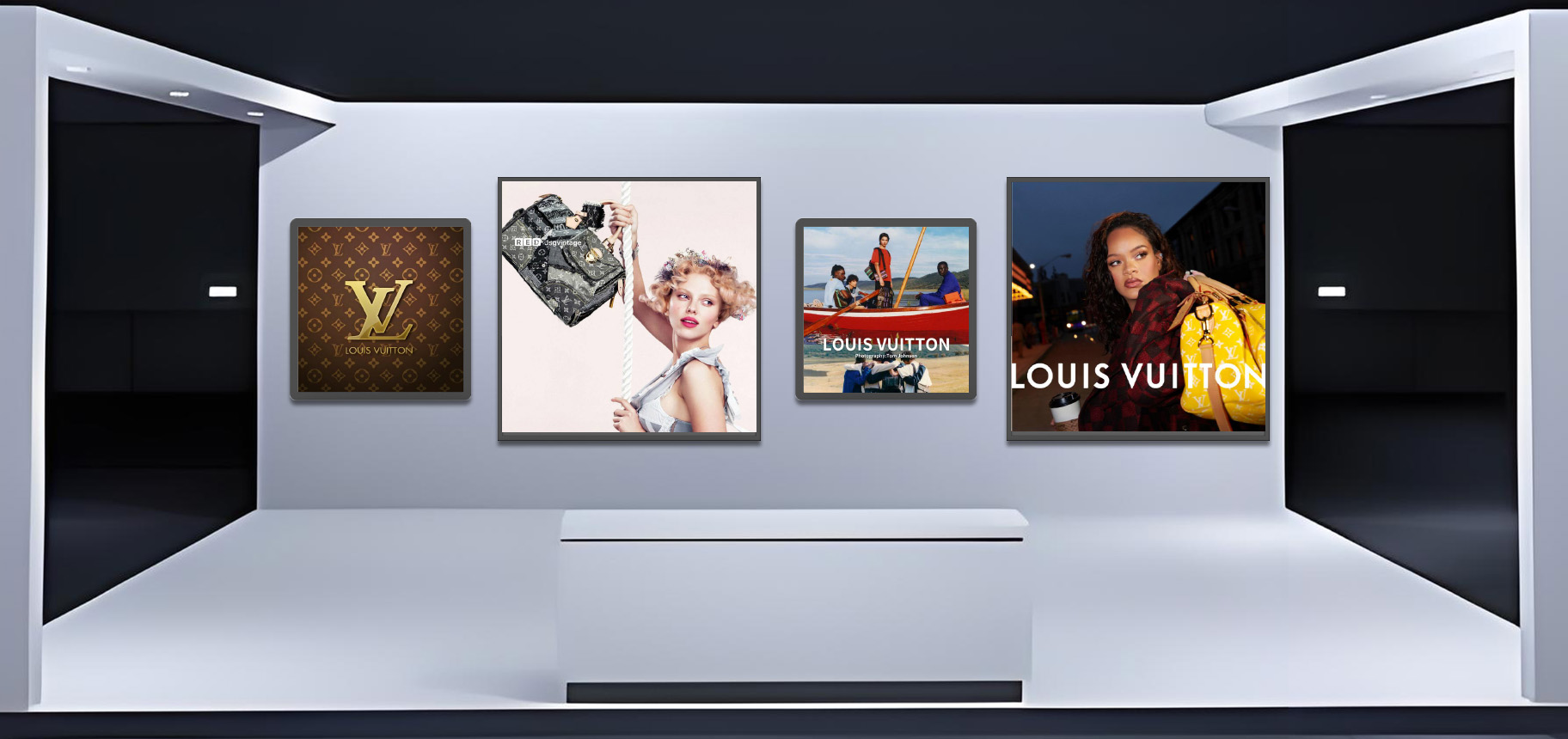

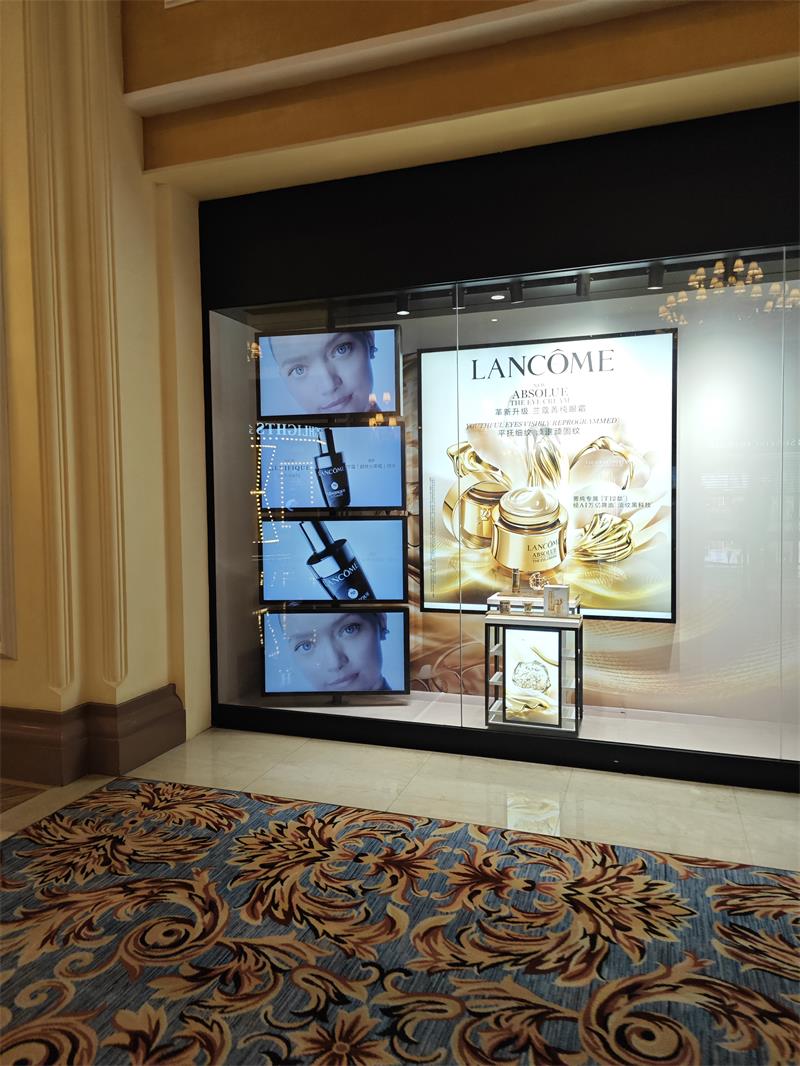

Application Scenarios Of Square LCD Digital Photo Frames

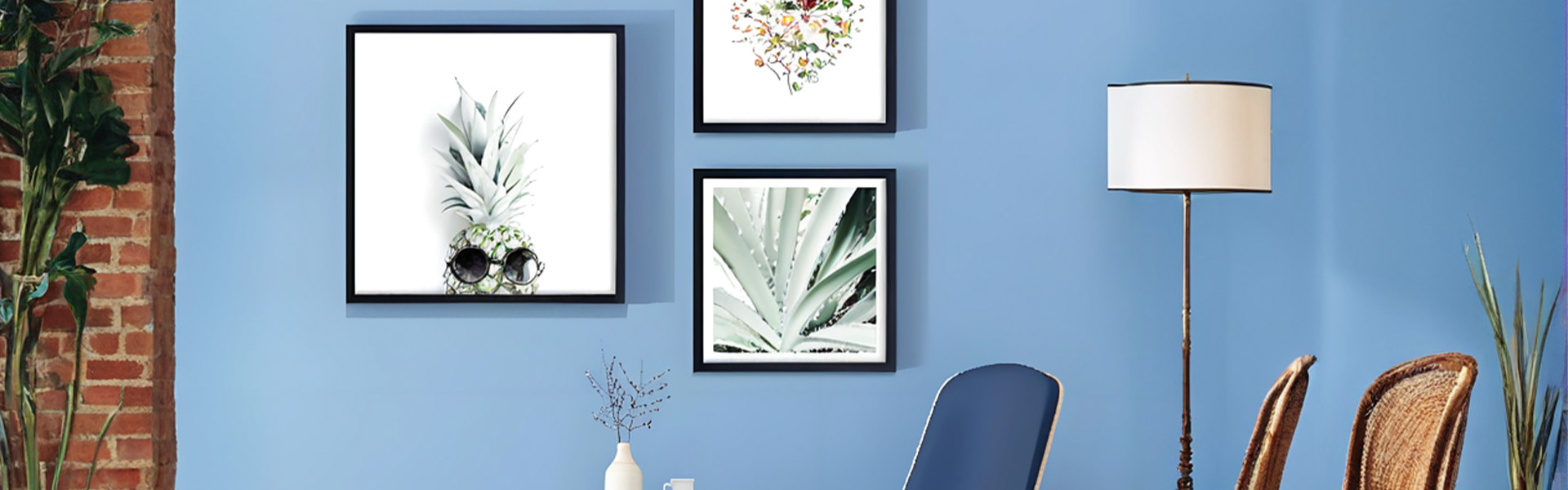

Decorate your space with square lcd digital photoframe

Other Options

Full Specification

19.2 Inch
28.1 Inch
29.4 Inch
39 Inch
45 Inch
52 Inch
59 Inch

19.2”-G192BY936-S01

Active Display Area

340.4mm(H)×340.4mm(V)
Overall Size

369.6×369.6×32mm
Pixel Pitch (mm)

0.3636(H) x 0.3636(V)
Native Resolution

936*936
Brightness

350 Nits
Contrast Ratio

4000:1
Power Supply

DC 12V 5A
Power Consumption( Watt)

≤45W
Packing Carton Dimension

460x460x120mm
Net Weight

6.8KG
Gross Weight

9KG

28.1”-G39BYM48-D01

Active Display Area

501.97mm(H)×501.97mm(V)
Overall Size

535*557x35mm
Pixel Pitch (mm)

0.2451(H) x 0.2451(V)
Native Resolution

2048*2048
Brightness

500 Nits
Contrast Ratio

4000:1
Power Supply

AC 110-240V
Power Consumption( Watt)

≤50W
Packing Carton Dimension

650x650x120mm
Net Weight

10KG
Gross Weight

12KG

29.4"-G294BYN60-S01

Active Display Area

529.42mm(H)x 529.42mm(V)
Overall Size

560*560x25mm
Pixel Pitch (mm)

0.2451*0.2451
Native Resolution

2160*2160
Brightness

500 Nits
Contrast Ratio

1100:1
Power Supply

DC 12V 7A
Power Consumption( Watt)

≤80W
Packing Carton Dimension

660x660x120mm
Net Weight

11KG
Gross Weight

13KG

39"-G39BYJ80-D01

Active Display Area

699.4mm (H) x 699.4mm (V)
Overall Size

730x730x60mm
Pixel Pitch (mm)

0.372(H) x 0.372(V)
Native Resolution

1880*1880
Brightness

350 Nits
Contrast Ratio

5000:1
Power Supply

AC 110-240V
Power Consumption( Watt)

≤120W
Packing Carton Dimension

829x829x120mm
Net Weight

15KG
Gross Weight

17KG

45"-G45BYJ80-S01

Active Display Area

807.6mm (H) x 807.6mm (V)
Overall Size

837x837x47mm
Pixel Pitch (mm)

0.4296(H) x 0.4296(V)
Native Resolution

1880*1880
Brightness

500 Nits
Contrast Ratio

1200:1
Power Supply

AC 110-240V
Power Consumption( Watt)

≤120W
Packing Carton Dimension

937x937x120mm
Net Weight

15KG
Gross Weight

17KG

52”-G52BYJ80-D01

Active Display Area

927.78mm (H) x927.78mm (V)
Overall Size

965.2x965.2x65mm
Pixel Pitch (mm)

0.4935(H) x 0.4935(V)
Native Resolution

1880*1880
Brightness

500 Nits
Contrast Ratio

1200:1
Power Supply

AC 110-240V
Power Consumption( Watt)

≤280W
Packing Carton Dimension

1077x1077x180mm
Net Weight

25KG
Gross Weight

28KG

59”-G59BYJ80-S01

Active Display Area

1056.93mm (H) x1056.93mm (V)
Overall Size

1090x1090x46mm
Pixel Pitch (mm)

0.5621(H) x 0.5621(V)
Native Resolution

1880*1880
Brightness

300 Nits
Contrast Ratio

1200:1
Power Supply

AC 110-240V
Power Consumption( Watt)

≤200W
Packing Carton Dimension

1200x1200x200mm
Net Weight

25KG
Gross Weight

28KG

Panel Features

Viewing Angle

178(H)/178(V)
Response Time

10ms
Frame Rate

60Hz
Life Time

>30000 Hrs

Functions

OS System

Android7.1/8.1/9.1/11 Optional
RAM+Flash

DDR 2GB+EMMC 8G

(Optional maximum 32G)
Video Format

RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.
Picture Format

JPG, JPEG, BMP, PNG, GIF
Audio Input/Output

Supports left and right channel output
Network Support

WIFI,4G

Horizontal/Vertical/Split Scree
Timed Play

Customized Play & Power On/Oﬀ
CMS

Support Web/Local Info.Publish
Touch

Optional

Input Ports（Customizable）

SD

*1 (UP to 64G)
Micro-USB

*3
HDMI OUT

*1
LAN/RJ45

*1

Environmental

Operating Temperature

0°C - 50°C/-20-70 Optional
Storage Temperature

—20°C - 50°C
Operating Humidity

10% - 80%
Storage Humidity

10% - 80%

Outer Frame

Material

Sheet metal/profile optional
Color

Customizable
Tempered Glass

Optional
