Public Transport
Ultra-wide LCD Stretched Displays
28.6"-88" Available, Suitable For Buses And Subways



Use Bar Type Display To Convey Information And Make Travel More Efficient!

  • Ultra-wide Screen Ratio
  • Remote Update
  • HD Resolution
  • 178° Viewing Angle
  • Anti-glare Design
  • Lifetime Technical Support
  • Integrated Speakers
  • Support Multimedia Formats
  • A+ Commercial Grade Panel
  • Tempered Glass Reinforcement
Why Does Traffic
Need Stretched Display?
Buses and subways have a large passenger flow and a relatively noisy environment, so passengers' attention is easily distracted. Stretch monitors, with their unique display ratio, can perfectly fit the layout of buses or subways, allowing information to be displayed to the maximum in a limited space, attracting passengers' attention through dynamic images, and allowing important information to reach passengers accurately.

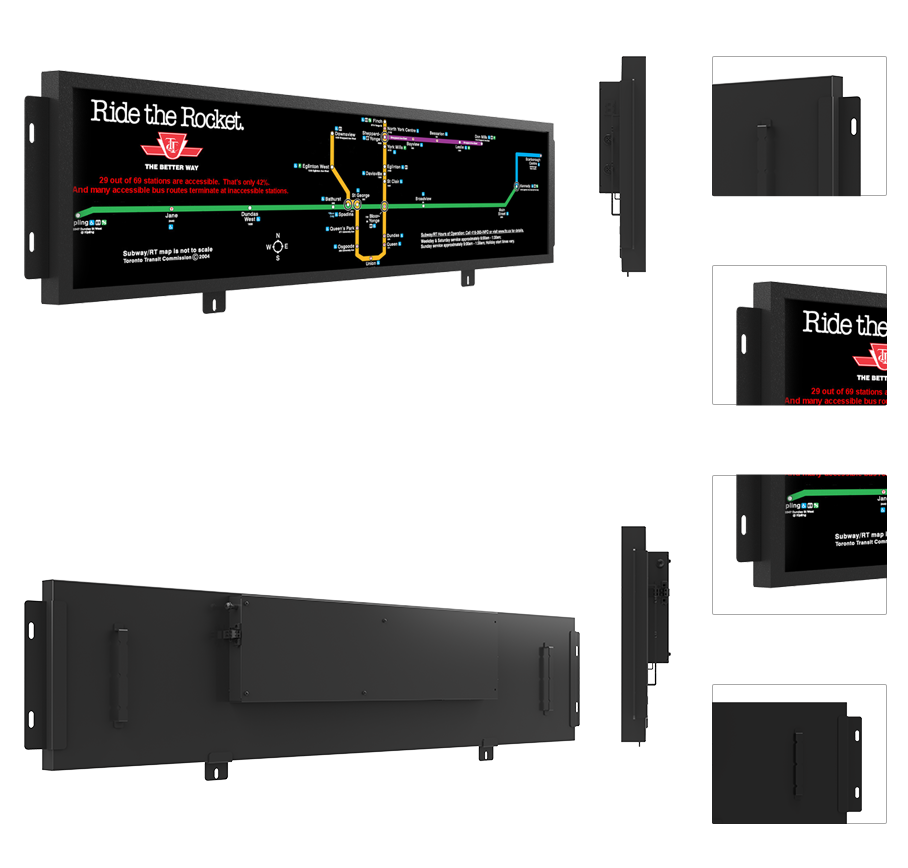

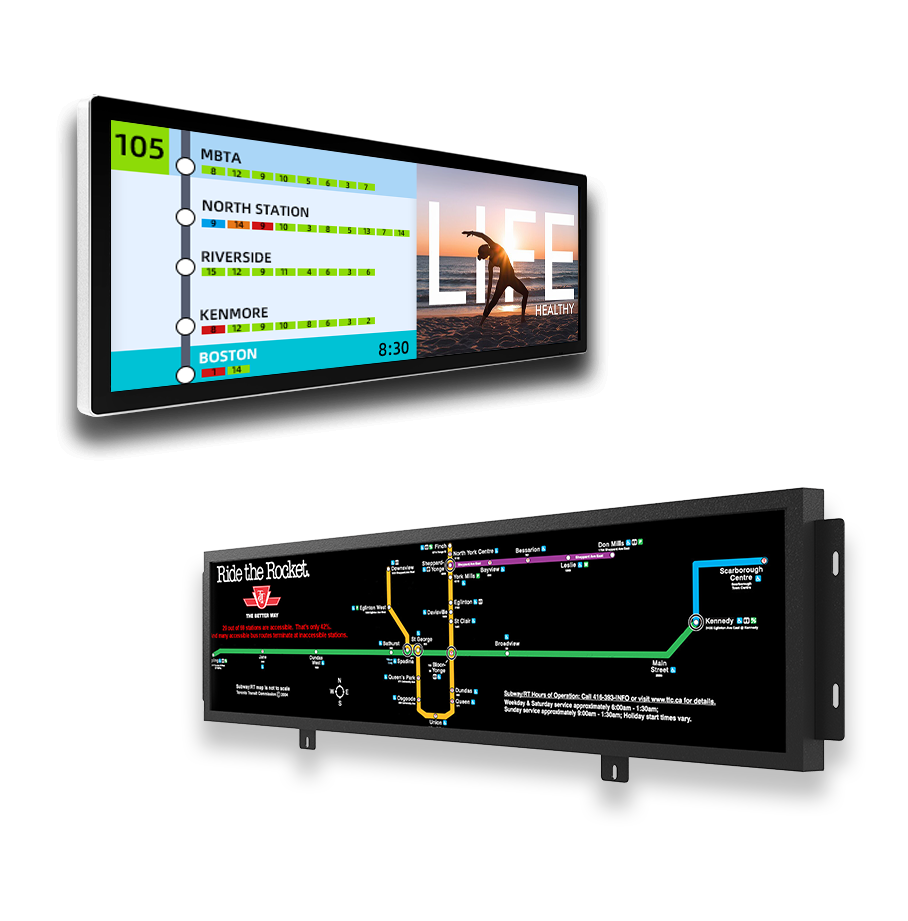

Ultra wide LCD stretched displays front view
ultra wide LCD stretched displays back view
  • Clear Picture Presentation

    Gomany's bar type LCD display uses OC cutting technology to retain the characteristics of high resolution. Combined with advanced display technology, it can present route information with clear effects, allowing passengers to easily obtain key information for riding.

  • Real-time Information Update

    The display of this series is equipped with an Android player, which can instantly receive and display the latest information, whether it is the arrival time of the bus, the line adjustment of the subway, or emergency notifications, etc., which can be presented to passengers in the first time to ensure the timeliness and accuracy of travel information.

  • Tempered Glass Curing

    The flow of people in buses and subways is very large. In order to avoid external force damage during the operation of the equipment, we have cured the surface of the stretched screen, which not only greatly enhances the impact resistance of the screen, but also ensures the stability of the display route of public transportation.

  • Ultra-wide Viewing Angle

    These displays have an ultra-wide viewing angle of 178°, which means that no matter where passengers are in the bus or subway car, they can clearly see the information on the screen without any obstruction, bringing a better riding experience

Optimizing The In-car Display Environment With Ultra-wide LCD Stretched Displays

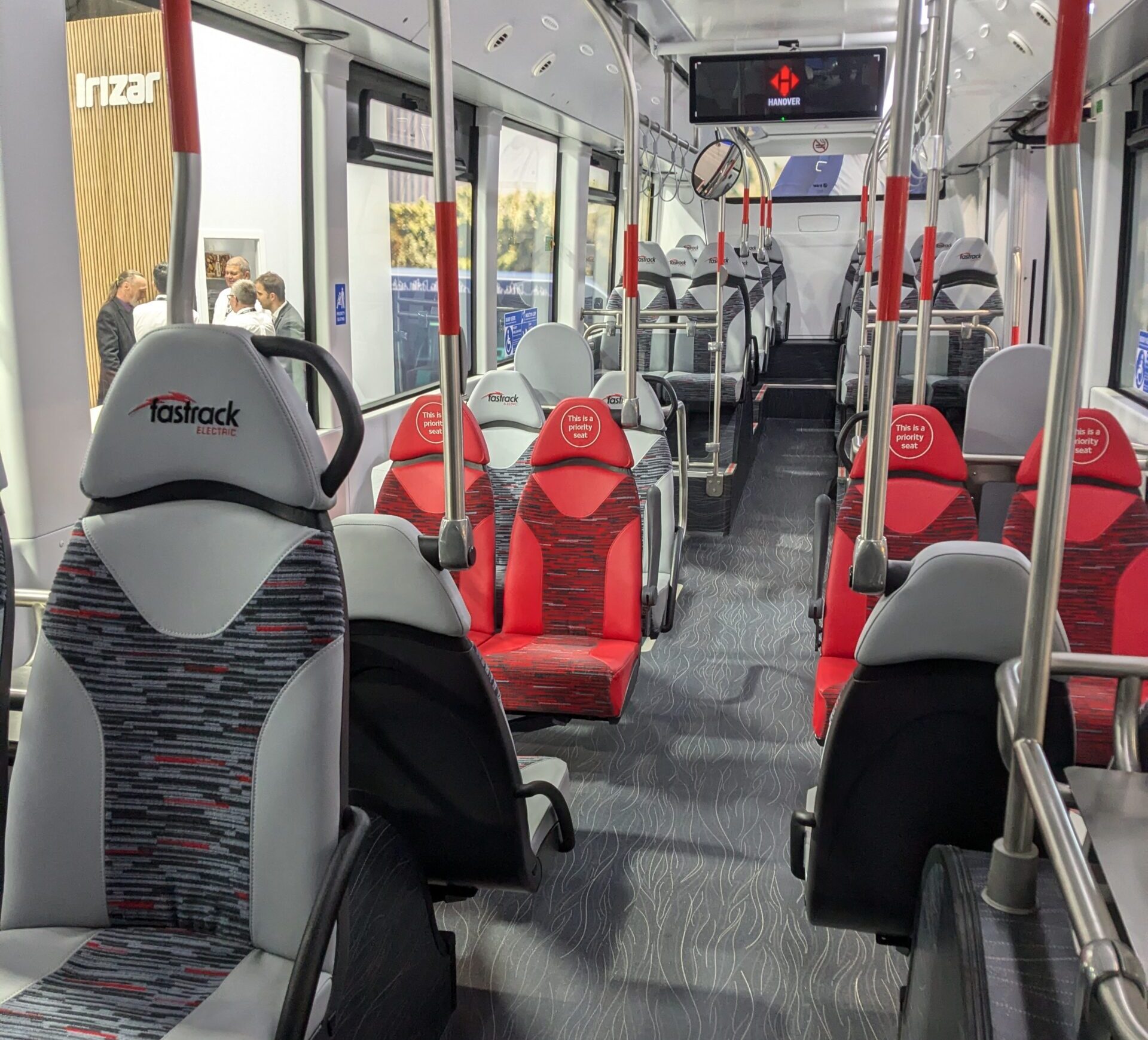

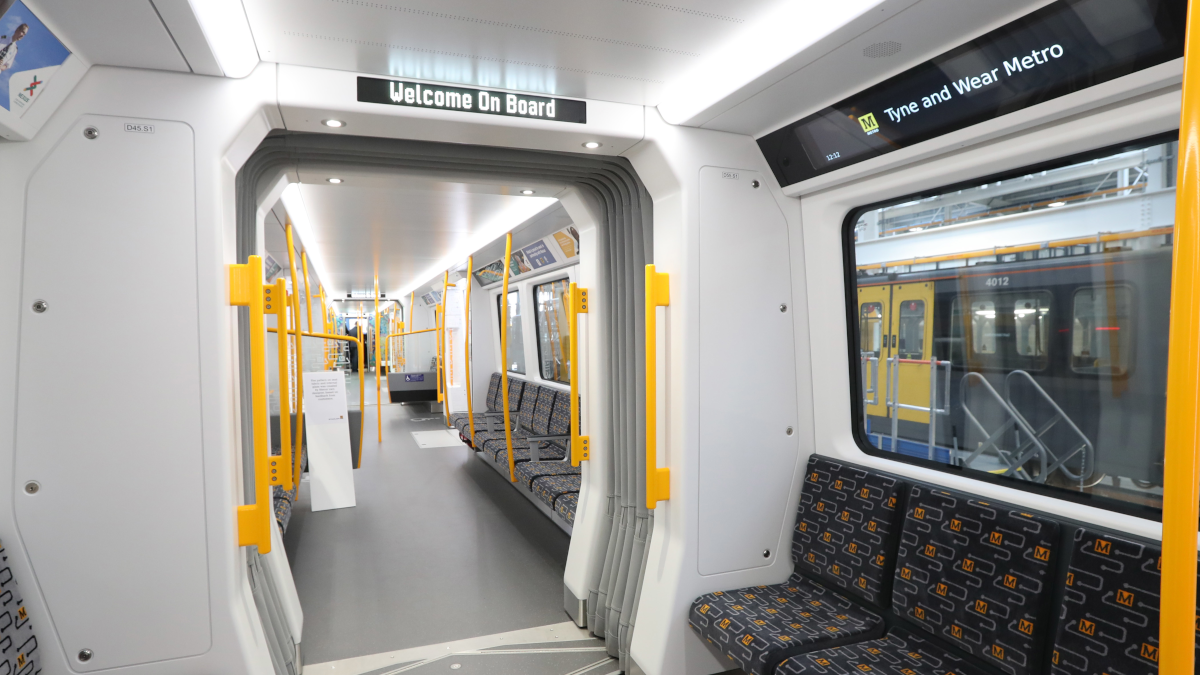

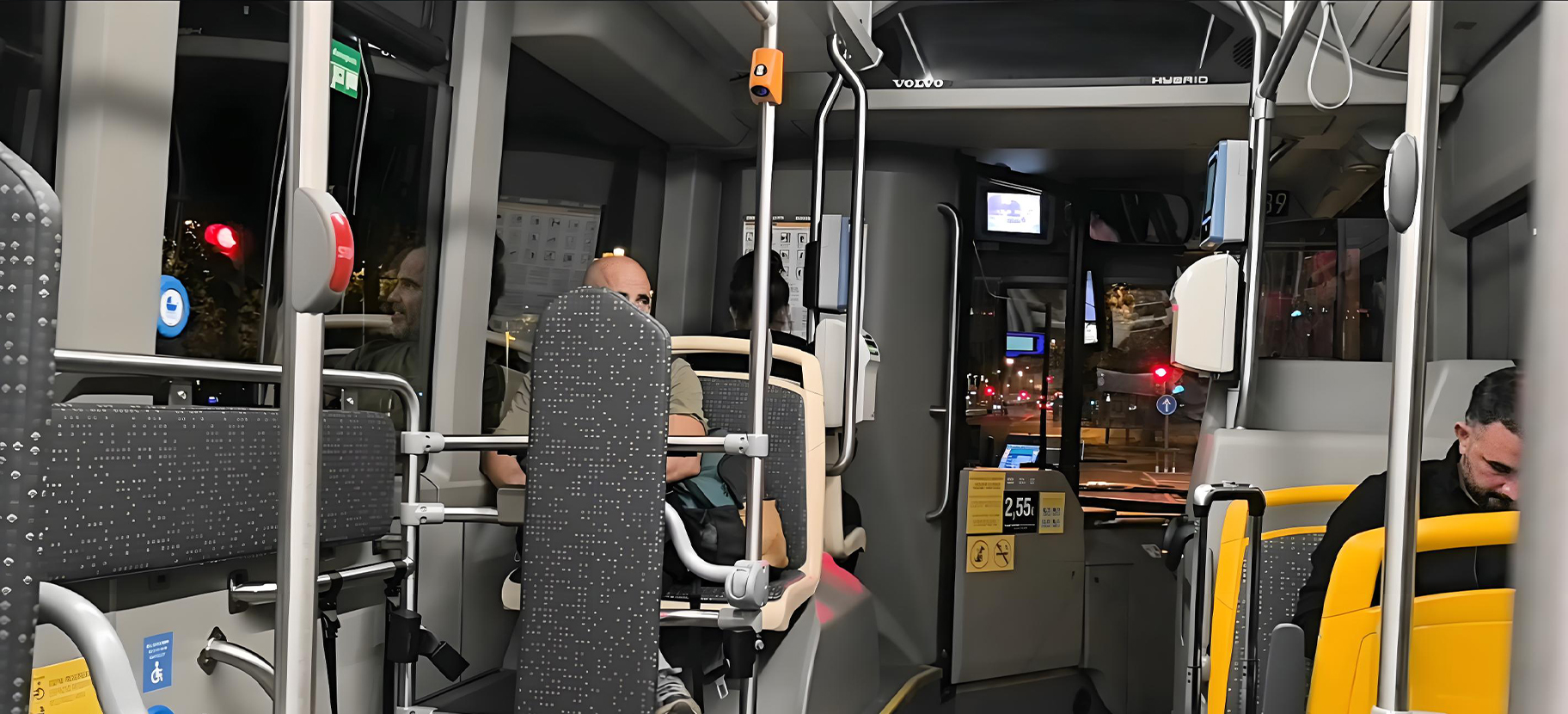

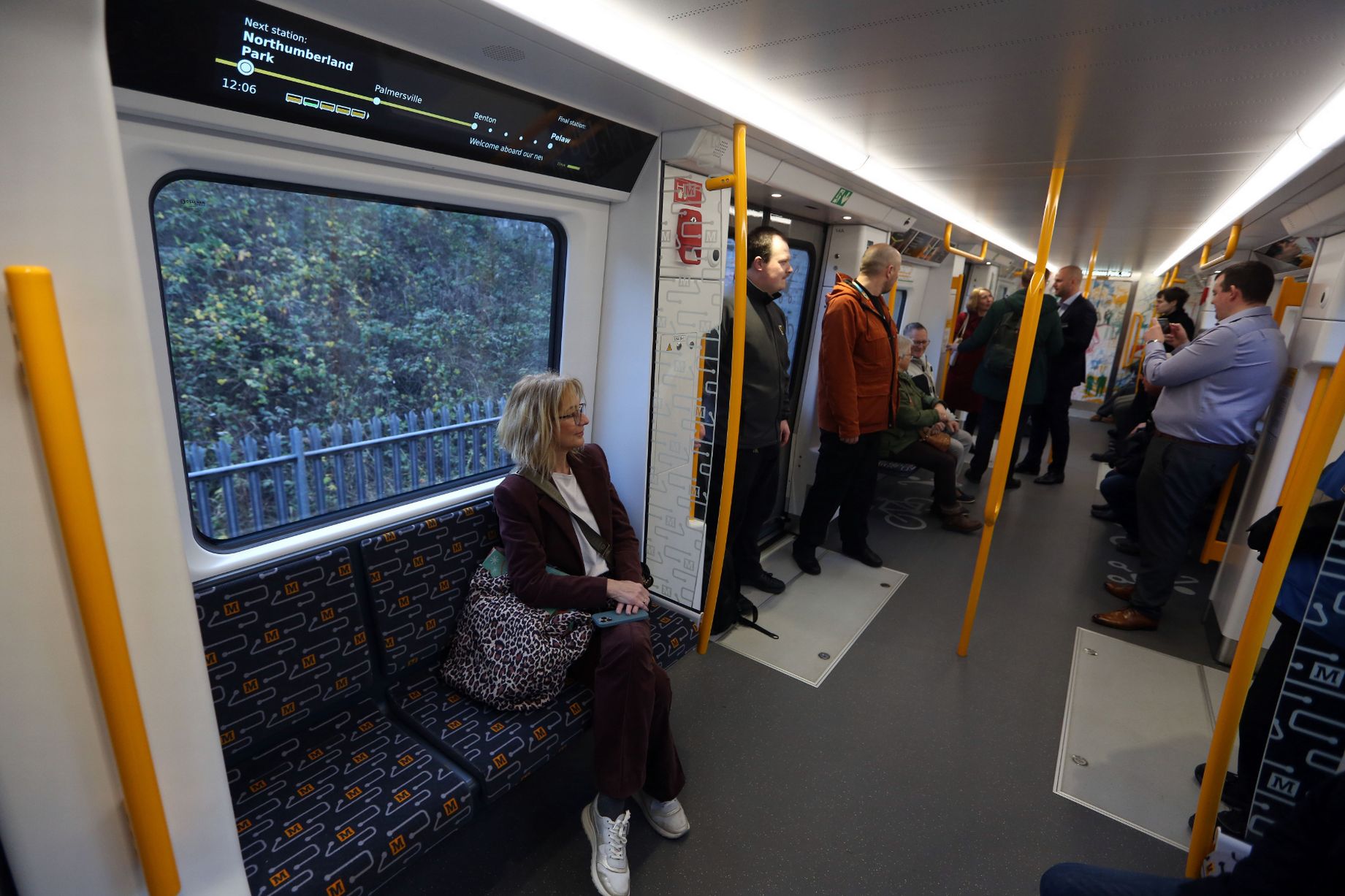

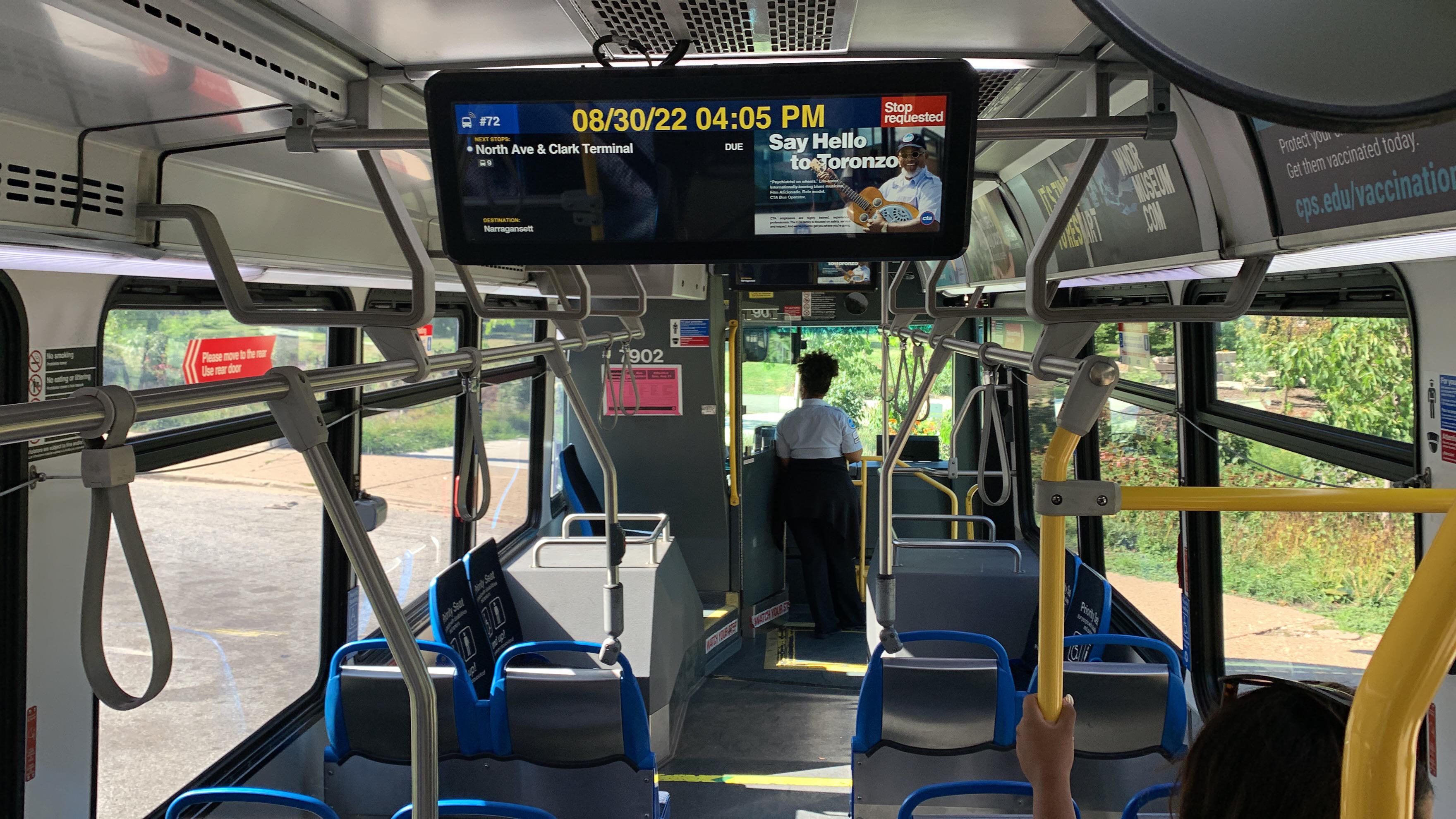

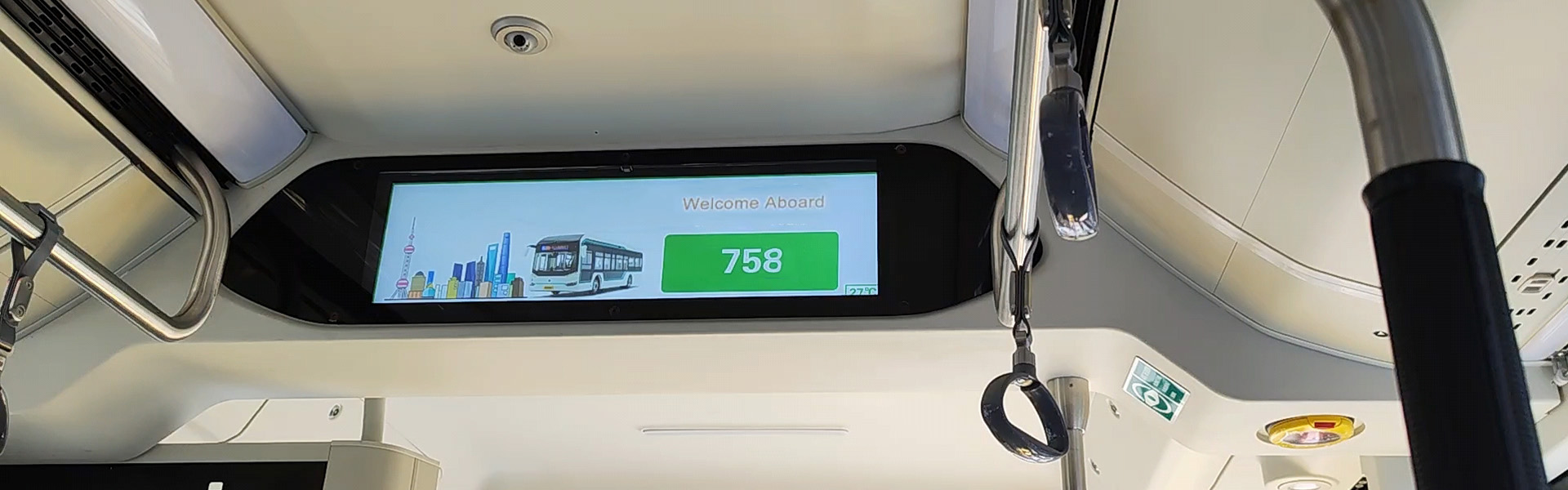

Stretched bar display installed in buses to show route
Other Options
Specification
Full Specification
  • 28.6 Inch
  • 36.6 Inch
  • 37 Inch
  • 43.1 Inch
  • 86 Inch
28.6"-G286AY540-S01
  • Active Display Area

    698.4(H)*196.43(V)mm

  • Overall Size

    788(H)*282(W)*71.8(H)mm

  • Pixel Pitch (mm)

    0.36375(H) x 0.36375(V)

  • Native Resolution

    1920*540

  • Brightness

    500 Nits

  • Contrast Ratio

    1200:1

  • Power Supply

    DC 24V 5A

  • Power Consumption( Watt)

    ≤45W

  • Packing Carton Dimension

    850x330x120mm

  • Net Weight

    7.7KG

  • Gross Weight

    9.6KG

36.6"-G366AY290-S01
  • Active Display Area

    919.3(H)*138.85(V)mm

  • Overall Size

    1059.5(H)*182.8(V)*21.7(W)mm

  • Pixel Pitch (mm)

    0.4788(H) x 0.4788(V)

  • Native Resolution

    1920*290

  • Brightness

    700 Nits

  • Contrast Ratio

    4000:1

  • Power Supply

    DC 110V

  • Power Consumption( Watt)

    ≤80W

  • Packing Carton Dimension

    1072x280x150mm

  • Net Weight

    8.5KG

  • Gross Weight

    10KG

37"-G37AY511-S01
  • Active Display Area

    878.11(H)*247.61(V)mm

  • Overall Size

    918(H)*287.5(W)*50(H)mm

  • Pixel Pitch (mm)

    0.4573(H) x 0.4494(V)

  • Native Resolution

    1920*551

  • Brightness

    350 Nits

  • Contrast Ratio

    5000:1

  • Power Supply

    DC 24V 5A

  • Power Consumption( Watt)

    ≤80W

  • Packing Carton Dimension

    1000x377x150mm

  • Net Weight

    11KG

  • Gross Weight

    13KG

43.1"-G431AY360-S01
  • Active Display Area

    1073.78(H)*201.1(V)mm

  • Overall Size

    1122.5(H)*239(V)*27(W)mm

  • Pixel Pitch (mm)

    0.559(H) x 0.559(V)

  • Native Resolution

    1920*360

  • Brightness

    700 Nits

  • Contrast Ratio

    3000:1

  • Power Supply

    DC 110V

  • Power Consumption( Watt)

    ≤80W

  • Packing Carton Dimension

    1283x330x150mm

  • Net Weight

    10KG

  • Gross Weight

    12KG

86"-G860AY600-D01
  • Active Display Area

    2158.84(L)*334.51(V)mm

  • Overall Size

    2185.5(H)*366(W)*72(H)mm

  • Pixel Pitch (mm)

    0.5622(H)*0.5622(V)

  • Native Resolution

    3840*600

  • Brightness

    500 Nits

  • Contrast Ratio

    1200:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤180W

  • Packing Carton Dimension

    2280x543x220mm

  • Net Weight

    42KG

  • Gross Weight

    50KG

Panel Features
  • Viewing Angle

    178(H)/178(V)

  • Response Time

    10ms

  • Frame Rate

    60Hz

  • Life Time

    >30000 Hrs

Functions
  • OS System

    Android7.1/8.1/9.1/11 Optional

  • RAM+Flash

    DDR 2GB+EMMC 8G

    (Optional maximum 32G)

  • Video Format

    RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.

  • Picture Format

    JPG, JPEG, BMP, PNG, GIF

  • Audio Input/Output

    Supports left and right channel output

  • Network Support

    WIFI,4G

  • Picture

    Horizontal/Vertical/Split Scree

  • Timed Play

    Customized Play & Power On/Off

  • CMS

    Support Web/Local Info.Publish

  • Touch

    Optional

Input Ports(Customizable)
  • SD

    *1 (UP to 64G)

  • Micro-USB

    *3

  • HDMI OUT

    *1

  • LAN/RJ45

    *1

Environmental
  • Operating Temperature

    0°C - 50°C/-20-70 Optional

  • Storage Temperature

    —20°C - 50°C

  • Operating Humidity

    10% - 80%

  • Storage Humidity

    10% - 80%

Outer Frame
  • Material

    Sheet metal/profile optional

  • Color

    Customizable

  • Tempered Glass

    Optional
