Retail Digital
Shelf Edge LCD Display
(8.8"-49.5") Can Be Selected, Support Customization

Use The Dynamic Image Of The LCD Display To Accurately Position Customers' Eyes On The Shelf Edge.

  • Ultra-wide ScreenRatio
  • Support Cloud Updates
  • Android Media Player
  • Environmentally Friendly
  • Support Multimedia Formats
  • Lifetime Technical Support
  • Anti-glare Design
  • Quality Assurance
  • Horizontal And Vertical
  • Multi-screen Linkage
  • High Definition
  • 24/7 Display
The TransforMation Of
Retail Shelves
Shelves are no longer just a tool for passively displaying goods. The development of digital display has brought more possibilities to shelves. Using Gomany's shelf edge LCD advertising display, marketing can be carried out through dynamic display methods, and product information can be updated in real time, thus creating a modern smart shelf and improving customers' shopping experience and retention rate.

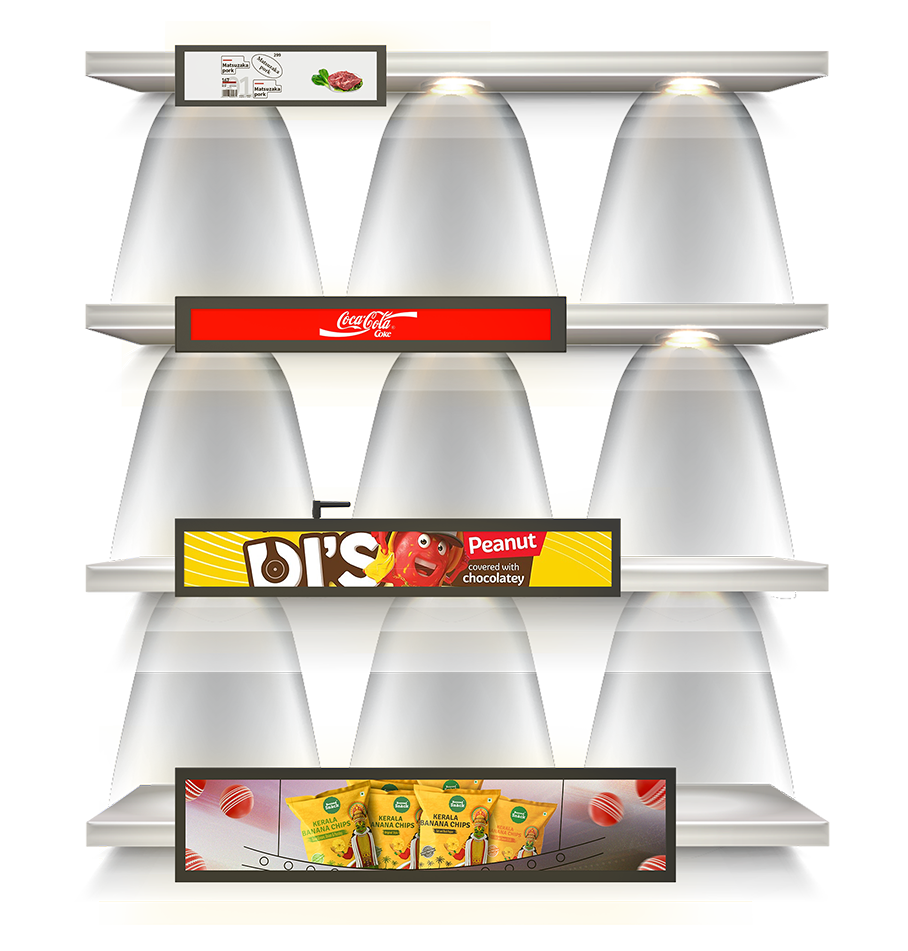

Application effect diagram of Shelf Edge LCD Display

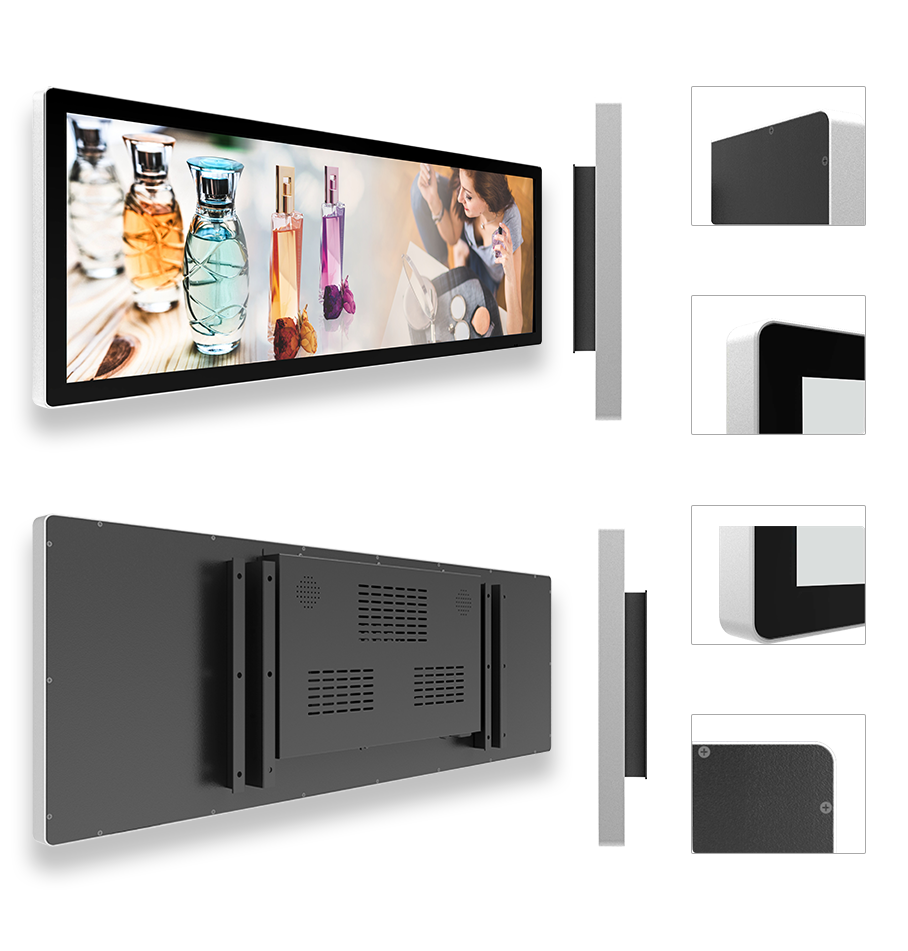

Shelf edge LCD display structure disassembly diagram
  • Display Ratio Designed for Shelves

    This digital LCD display is specially designed for retail shelves. It has a narrow and long display ratio, which can fit the long strip structure of the shelf. It enlarges the display area while ensuring the integrity of the product information. It can present product pictures, prices, promotional information and other content to customers in the most intuitive way.

  • 24 / 7 Display

    As a commercial display device, digital shelf talker display has the ability to operate all day, which is very important for 24-hour business occasions. Whether it is day or night, it can ensure that your product information is always visible and attractive, thereby maintaining customer satisfaction.

  • Environmentally Friendly

    Our digital shelf LCD signage is a product that complies with green retail. For the product itself, it uses LED backlight technology, which has lower power consumption and low operating costs.

    For the retail industry, its appearance reduces the waste of paper labels, which is more in line with today's environmental protection and sustainable strategies.

  • Multi-screen Linkage

    This shelf bar display is not limited to single use. The effect of using multiple screens in linkage is better. Whether it is playing promotional videos synchronously or displaying detailed information of different products, it can achieve seamless connection and create a unified visual effect, which brings more possibilities to your marketing strategy.

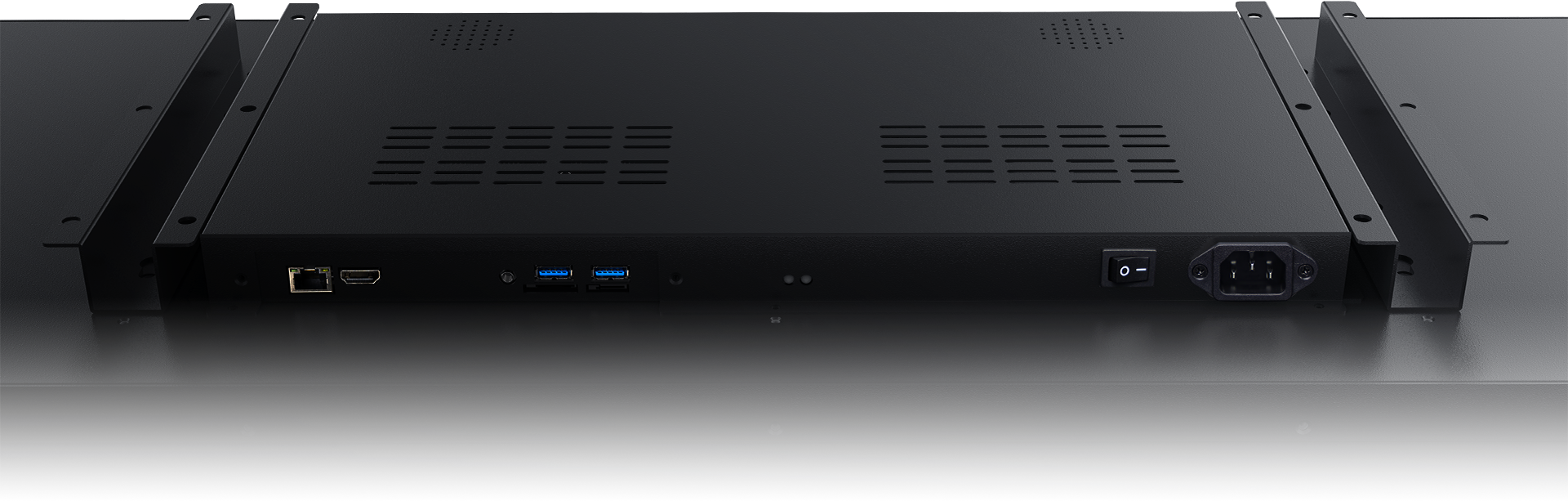

Interface Diagram Of Shelf Edge LCD Display
Interface diagram of shelf edge LCD display
Other Options
Specification
Full Specification
  • 8.8 Inch
  • 11.3 Inch
  • 16.3 Inch
  • 20.9 Inch
  • 23.1 Inch
  • 24.5 Inch
  • 35 Inch
  • 37 Inch
  • 47.7 Inch
  • 49.5 Inch
8.8” -G088AY480-S01
  • Active Display Area

    218.88mm (H) x 54.72mm (V)

  • Overall Size

    240.6x69.6x16mm

  • Pixel Pitch (mm)

    0.114(H) x 0.114(V)

  • Native Resolution

    1920*480

  • Brightness

    500 Nits

  • Contrast Ratio

    800:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤15W

  • Packing Carton Dimension

    350x160x75mm

  • Net Weight

    0.6KG

  • Gross Weight

    1KG

11.3”-G113AY176-S01
  • Active Display Area

    293.76mm (H) x26.928mm (V)

  • Overall Size

    320.5x47x30.5mm

  • Pixel Pitch (mm)

    0.153(H) x 0.153(V)

  • Native Resolution

    1920*176

  • Brightness

    400 Nits

  • Contrast Ratio

    800:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤15W

  • Packing Carton Dimension

    650x220x80mm

  • Net Weight

    2.5KG

  • Gross Weight

    3KG

16.3”-G163AY168-S01
  • Active Display Area

    409.8mm (H) x50.4mm (V)

  • Overall Size

    430*76*35mm

  • Pixel Pitch (mm)

    0.3(H) x 0.3(V)

  • Native Resolution

    1366*168

  • Brightness

    350 Nits

  • Contrast Ratio

    1000:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤15W

  • Packing Carton Dimension

    540x160x80mm

  • Net Weight

    1.2KG

  • Gross Weight

    2KG

20.9”-G209AY360-S01
  • Active Display Area

    521.28mm (H) x97.74mm (V)

  • Overall Size

    545.2*125.5*26mm

  • Pixel Pitch (mm)

    0.2715(H) x 0.2715(V)

  • Native Resolution

    1920*360

  • Brightness

    400 Nits

  • Contrast Ratio

    3000:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤15W

  • Packing Carton Dimension

    650x220x80mm

  • Net Weight

    2KG

  • Gross Weight

    2.5KG

23.1”-G231AY158-S01
  • Active Display Area

    585.22mm (H) x 48.16mm (V)

  • Overall Size

    597.2*61.8*15mm

  • Pixel Pitch (mm)

    0.3048(H) x 0.3048(V)

  • Native Resolution

    1920*158

  • Brightness

    400 Nits

  • Contrast Ratio

    1000:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤18W

  • Packing Carton Dimension

    657x120x75mm

  • Net Weight

    2.4KG

  • Gross Weight

    3KG

24.5”-G245AY540-S01
  • Active Display Area

    597.6mm (H) x168mm (V)

  • Overall Size

    630*198.8*66mm

  • Pixel Pitch (mm)

    0.3112(H) x 0.3112(V)

  • Native Resolution

    1920*540

  • Brightness

    350 Nits

  • Contrast Ratio

    3000:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤35W

  • Packing Carton Dimension

    720x280x150mm

  • Net Weight

    3KG

  • Gross Weight

    3.5KG

35”-G350AY096-S01
  • Active Display Area

    878.11mm (H) x 43.9mm (V)

  • Overall Size

    894.7*60.2*22mm

  • Pixel Pitch (mm)

    0.4573(H) x 0.4573(V)

  • Native Resolution

    1920*96

  • Brightness

    400 Nits

  • Contrast Ratio

    5000:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤50W

  • Packing Carton Dimension

    952x120x75mm

  • Net Weight

    2.6KG

  • Gross Weight

    3KG

37”-G370AY540-S01
  • Active Display Area

    878.11mm (H) x 246.94mm (V)

  • Overall Size

    900*264.5*45mm

  • Pixel Pitch (mm)

    0.4573(H) x0.4573(V)

  • Native Resolution

    1920*540

  • Brightness

    350 Nits

  • Contrast Ratio

    5000:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤50W

  • Packing Carton Dimension

    1000x377x150mm

  • Net Weight

    8.8KG

  • Gross Weight

    9.5KG

47.7”-G477AY220-S01
  • Active Display Area

    1209.6mm(H)x69.3mm(V)

  • Overall Size

    1230x95.12x35mm

  • Pixel Pitch (mm)

    0.315(H) x 0.315(V)

  • Native Resolution

    3840*220

  • Brightness

    700Nits

  • Contrast Ratio

    1300:1

  • Power Supply

    DC 12V 5A

  • Power Consumption( Watt)

    ≤35W

  • Packing Carton Dimension

    1350x200x130mm

  • Net Weight

    4.9KG

  • Gross Weight

    5.5KG

49.5”-G495AYA80-S01
  • Active Display Area

    1209.6mm (H) x 340.2mm (V)

  • Overall Size

    1243x373.6x55mm

  • Pixel Pitch (mm)

    0.315(H) x 0.315(V)

  • Native Resolution

    3840*1080

  • Brightness

    350 Nits

  • Contrast Ratio

    1300:1

  • Power Supply

    AC 110-240V

  • Power Consumption( Watt)

    ≤50W

  • Packing Carton Dimension

    1350x467x150mm

  • Net Weight

    10.7KG

  • Gross Weight

    11.5KG

Panel Features
  • Viewing Angle

    178(H)/178(V)

  • Response Time

    10ms

  • Frame Rate

    60Hz

  • Life Time

    >30000 Hrs

Functions
  • OS System

    Android7.1/8.1/9.1/11 Optional

  • RAM+Flash

    DDR 2GB+EMMC 8G

    (Optional maximum 32G)

  • Video Format

    RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.

  • Picture Format

    JPG, JPEG, BMP, PNG, GIF

  • Audio Input/Output

    Supports left and right channel output

  • Network Support

    WIFI,4G

  • Picture

    Horizontal/Vertical/Split Scree

  • Timed Play

    Customized Play & Power On/Off

  • CMS

    Support Web/Local Info.Publish

  • Touch

    Optional

Input Ports(Customizable)
  • SD

    *1 (UP to 64G)

  • Micro-USB

    *3

  • HDMI OUT

    *1

  • LAN/RJ45

    *1

Environmental
  • Operating Temperature

    0°C - 50°C/-20-70 Optional

  • Storage Temperature

    —20°C - 50°C

  • Operating Humidity

    10% - 80%

  • Storage Humidity

    10% - 80%

Outer Frame
  • Material

    Sheet metal/profile optional

  • Color

    Customizable

  • Tempered Glass

    Optional
