A square LCD display is easy to describe and surprisingly easy to specify badly. A buyer may start with a diagonal size, request a quotation and only later discover that the active area does not match the wall opening, the controller cannot output the native square timing, or the existing 16:9 content becomes too small after scaling. None of those problems is visible in a product-page headline. They appear during enclosure design, system integration or installation—when changes cost more.
This guide explains how to choose a square LCD display as a complete commercial system rather than as an isolated panel. It covers mechanical dimensions, square LCD display sizes, resolution, brightness, playback architecture and long-term supply.
What Is A Square LCD Display?

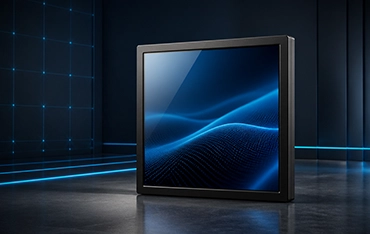

In practical project terms, a square LCD display is an LCD-based display whose visible image area is designed around a 1:1 aspect ratio. Equal horizontal and vertical pixel counts make the format well suited to square artwork, centered product imagery, grid layouts, dashboards and symmetrical architectural features. The square shape does not automatically make it the right choice. It becomes useful when the content and the available space are also close to square.
Active Area Is Not The Same As Overall Size
Three dimensions are routinely mixed together in early quotations: the diagonal, the active display area and the finished enclosure.
The active area is the illuminated image surface. The panel or module outline includes non-display borders and electronics.
The finished unit adds a housing, optional cover glass, connectors and mounting details. A 1:1 lcd display may therefore have a perfectly square image while its outer chassis is slightly taller, wider or deeper than expected.
The purchasing rule is simple: never finalize a cut-out from the diagonal alone. Ask for the model-specific 2D drawing, confirm the active area, confirm the overall size and reserve clearance for cables, airflow and service access. This is particularly important for wall recesses, slot-machine cabinets and custom metalwork.

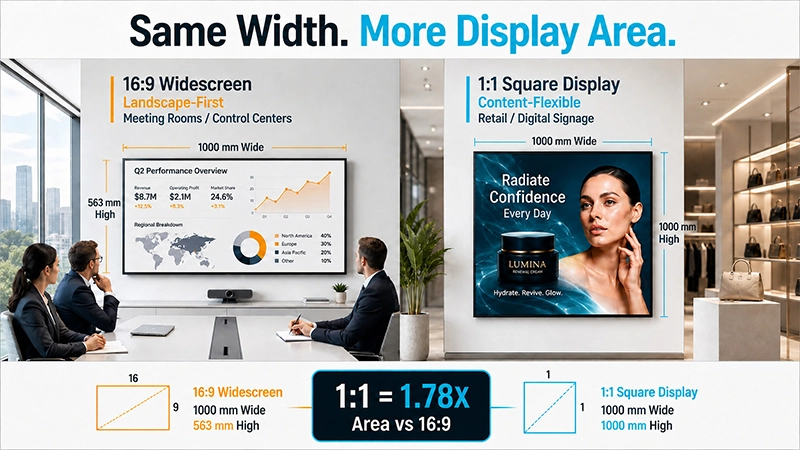

Square Format VS 16:9 Format
Decision Factor
|
Square Format
|
16:9 Format
|
Best content fit
|
1:1 artwork, product images, balanced grids, gauges
|
Landscape video and conventional advertising
|
Space use
|
Square openings and symmetrical structures
|
Wide walls and video-led layouts
|
Orientation
|
No strong landscape/portrait bias
|
Usually planned for one orientation
|
Supply
|
Specialized model selection
|
Broader standard supply
|
A square LCD screen should not be selected merely because it looks distinctive. If a project mainly plays standard landscape video, a conventional display may be simpler. The square format earns its place when it removes an actual design constraint: unused side space, excessive cropping, an awkward dashboard or a square architectural opening.
Start With The Application, Not The Diagonal
Buyers often ask for a screen size before describing the job. That sequence should be reversed. The application determines the content, viewing distance, lighting, installation method, update frequency and operating schedule. Those variables then narrow the acceptable display size and configuration.
Digital Art, Galleries And Electronic Frames

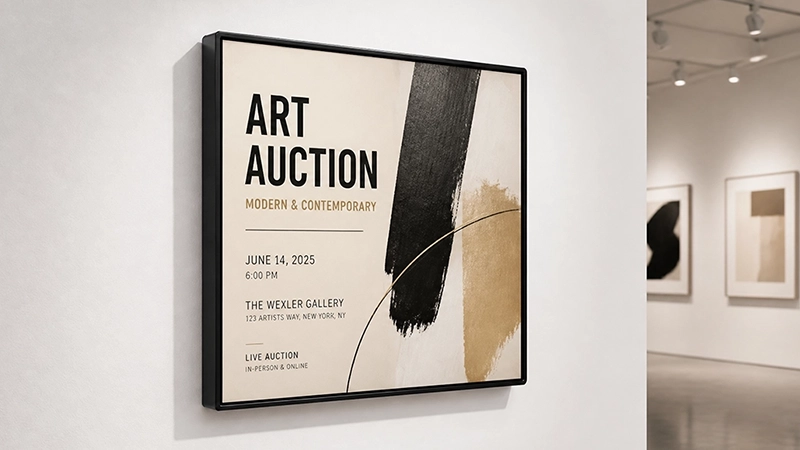

Square photography and digital artwork can fill the screen without the letterboxing associated with a landscape panel.
For this use, image quality is only part of the specification. Frame color, wall depth, glass reflection, local playback, remote updates and cable concealment directly affect the finished installation.
A commercial square display used as an architectural object also needs a service plan: how the unit is removed, how media is updated and how heat escapes from a shallow wall recess.
Retail, Museums And Brand Spaces

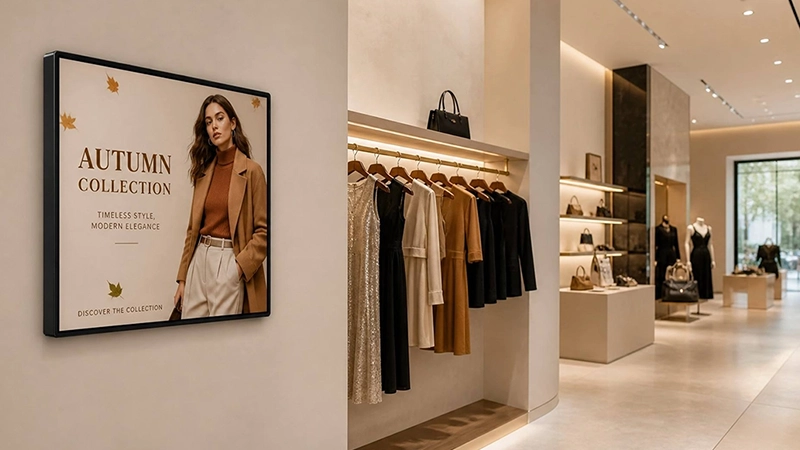

In retail and exhibition projects, square digital signage can echo packaging, product photography or a modular wall grid.
Screen size should be tested with the actual price text, labels and images at the intended viewing distance.
Brightness must be considered together with reflections. Adding more luminance cannot fully compensate for strong spotlights or a reflective cover glass.
Casinos And Entertainment Venues

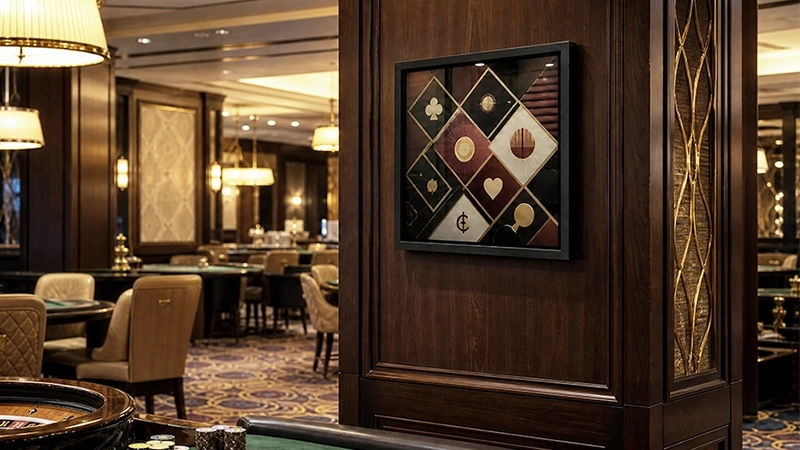

A square LCD display for casino projects may sit inside a slot-machine cluster, a decorative wall or a promotional feature.
The buyer should confirm the opening, content source, update method, ambient lighting, ventilation and whether touch is required.
Claims about higher revenue or longer dwell time should be based on project analytics, not assumed from the screen shape.
Corporate, Hospitality And Custom Interiors

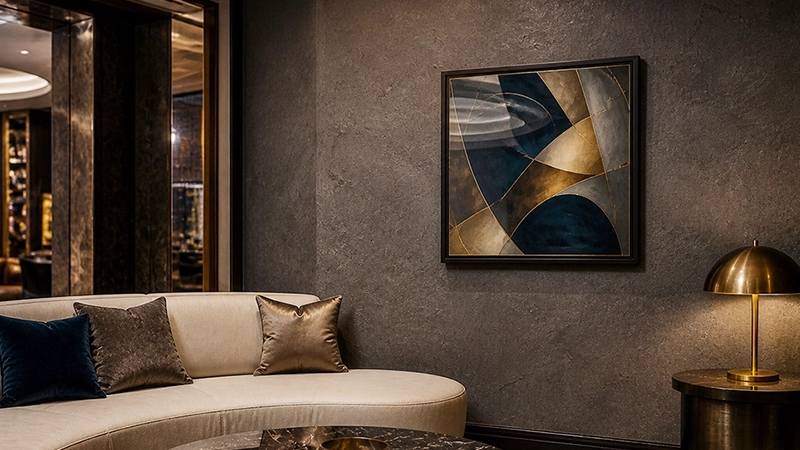

For lobbies, hotels and corporate installations, a large square LCD display can act as both a communication surface and an interior element.
That creates extra coordination between the AV contractor, interior designer and maintenance team.
Decorative frames must not block ventilation; synchronized content requires a defined playback architecture; and a flush installation still needs a realistic removal path.
How to Choose the Right Square LCD Display
Four Measurements That Belong In Every RFQ
1.Required diagonal or preferred model size.
2.Active display area needed for the content or opening.
3.Maximum overall width, height and depth.
4.Mounting clearance, cable path, ventilation and removal space.
Viewing distance and content density should be assessed together. A larger display does not rescue a layout with undersized text, and a high-resolution compact screen may waste pixels if the content is viewed from across a lobby. Build one native 1:1 test layout using real copy and imagery, then evaluate it at the intended distance before approving the final size.
Resolution: More Pixels Do Not Automatically Mean a Better Project
Higher pixel counts can improve fine text and close-view artwork, but they also increase the requirements placed on the media player, cabling and content workflow. A controller designed around standard television timings may not automatically support a native square output. Ask the supplier to confirm the accepted signal and test the selected controller before mass production.
Produce Content On A Native 1:1 Canvas

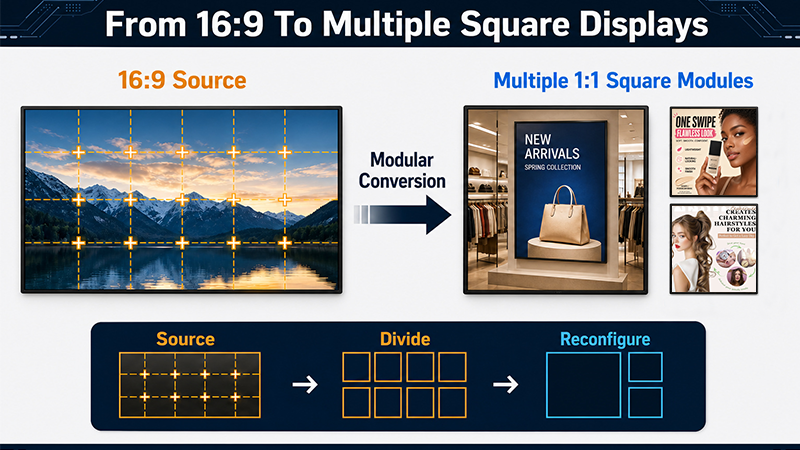

A common failure is to purchase square hardware and continue sending it 16:9 assets. The result is predictable: black bars, cropped edges, tiny text or stretched imagery.
Start the creative workflow with a square canvas. Keep key text away from the edge, test the actual type size and export at the native pixel dimensions when the playback system allows it.
Brightness, Reflections and the Installation Environment
The current range contains different nominal brightness levels by model. That variation matters because a gallery, a casino floor, a retail wall and a window-facing installation do not share the same ambient light. The target should be readable content with controlled reflections, not the highest nit figure available.
Evaluate panel brightness, cover-glass reflectance, content contrast and the direction of local lighting as one optical system.
If the project uses glass, request the exact glass and surface-treatment option in the sample. Do not assume that anti-glare treatment or a particular hardness rating is standard unless it appears in the confirmed specification.
Temperature And Ventilation
Currently, standard square LCD digital signage typically has an operating temperature range of 0°C to 50°C, with a range of -20°C to 70°C available as an optional configuration.
Wide-temperature operation should not be assumed as a standard feature across the entire product line.
Embedded devices still require thermal management solutions; even at normal room temperatures, heat can accumulate during prolonged operation if the unit is installed in a shallow, enclosed wall space.
Choose the Right Playback and Control Architecture
Android System
Android-based square LCD displays are suitable for scheduled playback, local media, network-based content updates, and centralized management via a CMS.
Typical configuration options include the Android version, storage capacity, Wi-Fi and 4G connectivity, scheduled playback, and support for web-based or local content publishing.
When requesting a quote, it is essential to specify the exact motherboard, system version, memory (RAM), security policies, and CMS compatibility, rather than treating these features as fixed, permanent specifications.
External Display Solution

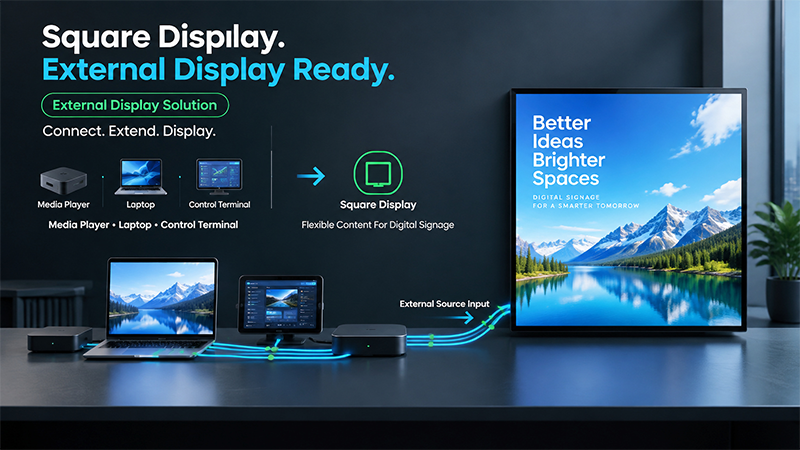

If the content to be displayed is static and does not require extensive functionality, an external display solution may be more appropriate.
The most critical factor here is signal compatibility; you must verify both the interface type and the input signal specifications.
How to Evaluate a Square LCD Display Manufacturer
A long size list is not enough. A capable square LCD display manufacturer should be able to connect each quotation to a model-specific specification, mechanical drawing and integration path. For a multi-size rollout, ask whether the exterior design, player environment and service process can remain consistent across sizes.
Useful supplier questions are concrete: Is the quoted resolution native? Which brightness is standard for this model? What signal does the controller accept? Can the 2D drawing be supplied before the enclosure is released? Which parts of the configuration can change on repeat orders? A supplier that answers these questions clearly is reducing project risk, not merely selling a screen.
If you have requirements for square LCD display deployments, please send the installation dimensions, application scenarios, functional specifications, and estimated quantities to
Gomany. We can assist in selecting the appropriate square LCD display configuration and provide the relevant technical parameters or 2D drawings for your project evaluation.
Conclusion: Select the System, Not Just the Panel
The right square lcd display is the one that fits the content, opening, controller, light level and operating plan at the same time.
Start with the application, confirm the active area and chassis, validate the native timing, then choose playback, touch and enclosure options.
This sequence prevents a visually attractive screen from becoming an integration problem.
FAQ
Q: What Square LCD Display Sizes Are Available?
A: Common rectangular LCD displays are available in sizes including 19.2 to 59 inches.
As specifications—such as resolution, brightness, enclosure design, and power requirements—vary by model, please refer to the specific technical details for each unit.
Should you require a custom size, please feel free to contact us; we are ready to provide you with a professional solution.
Q: Can it play standard 16:9 video?
A: Yes, but the system must crop, scale or add empty areas. Native 1:1 content generally uses the display area more effectively and preserves intended text size.
Q: Can touch be added?
A: Certainly; if you need to incorporate touch functionality, we can also provide a corresponding solution for you.
